79

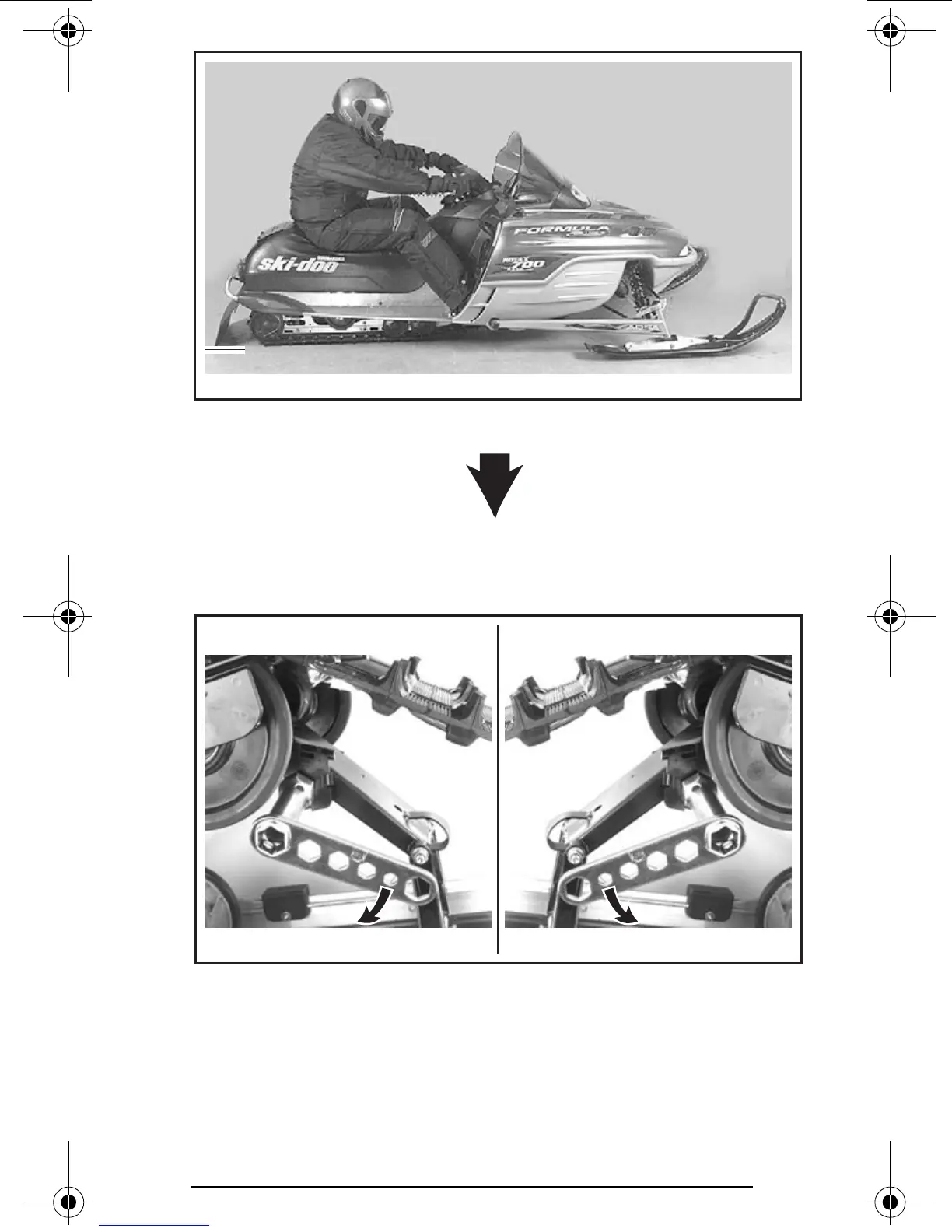

TYPICAL — TOO SOFT OF ADJUSTMENT
Turn the left side adjustment cam in a clockwise direction, the right side
cam in a counterclockwise direction. Left and right adjustment cams may
be set at different position.
TYPICAL
1. Increase spring preload
A32F0CA
A30F04A
RHLH
1 1
Mmo2003-003a.book Page 79 Tuesday, March 19, 2002 2:22 PM
