80

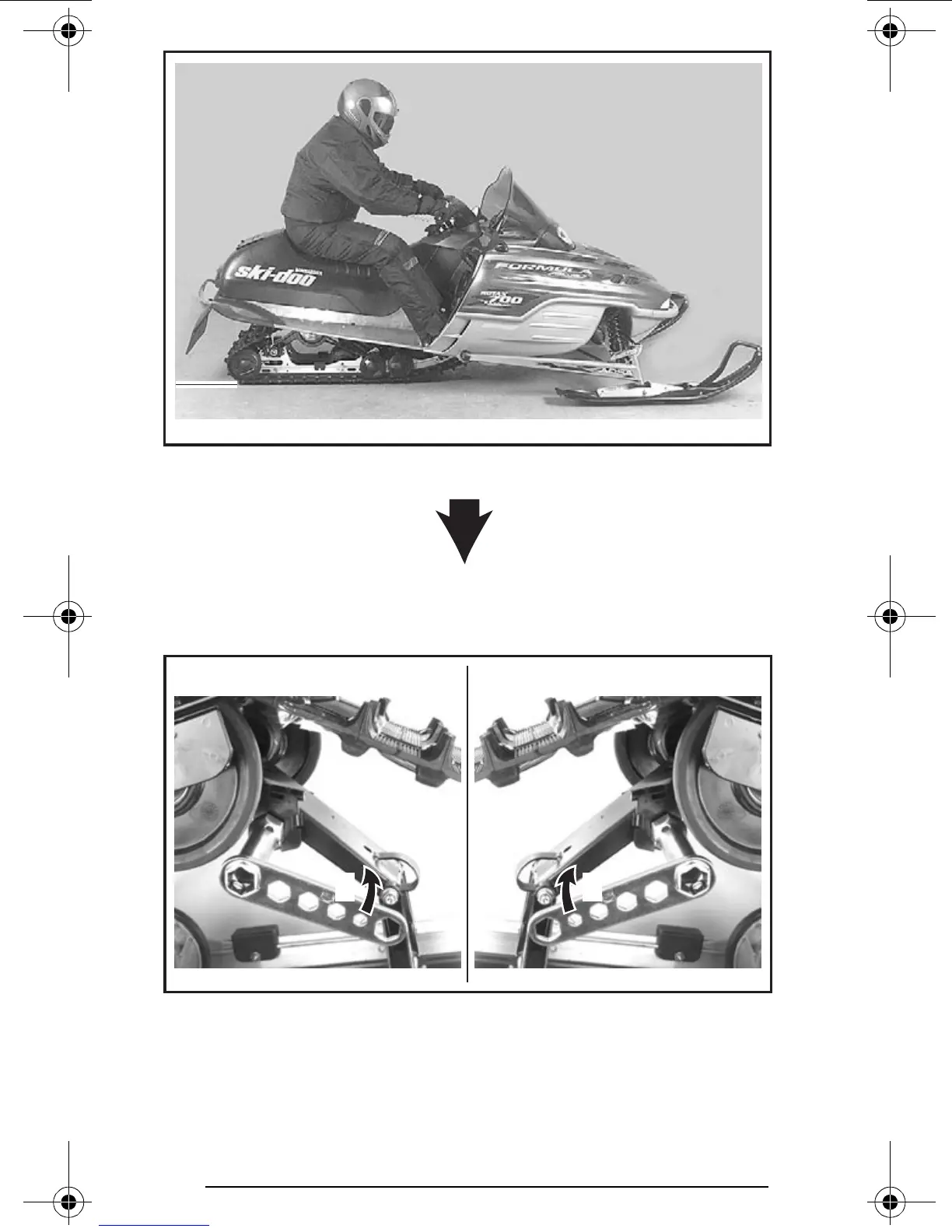

TYPICAL — TOO HARD OF ADJUSTMENT
Turn the left side adjustment cam in a counterclockwise direction, the
right side cam in a clockwise direction. Left and right adjustment cams
may be at different position.
TYPICAL
1. Decrease spring preload
A32F0DA
A30F04B
RHLH
1 1
Mmo2003-003a.book Page 80 Tuesday, March 19, 2002 2:22 PM
