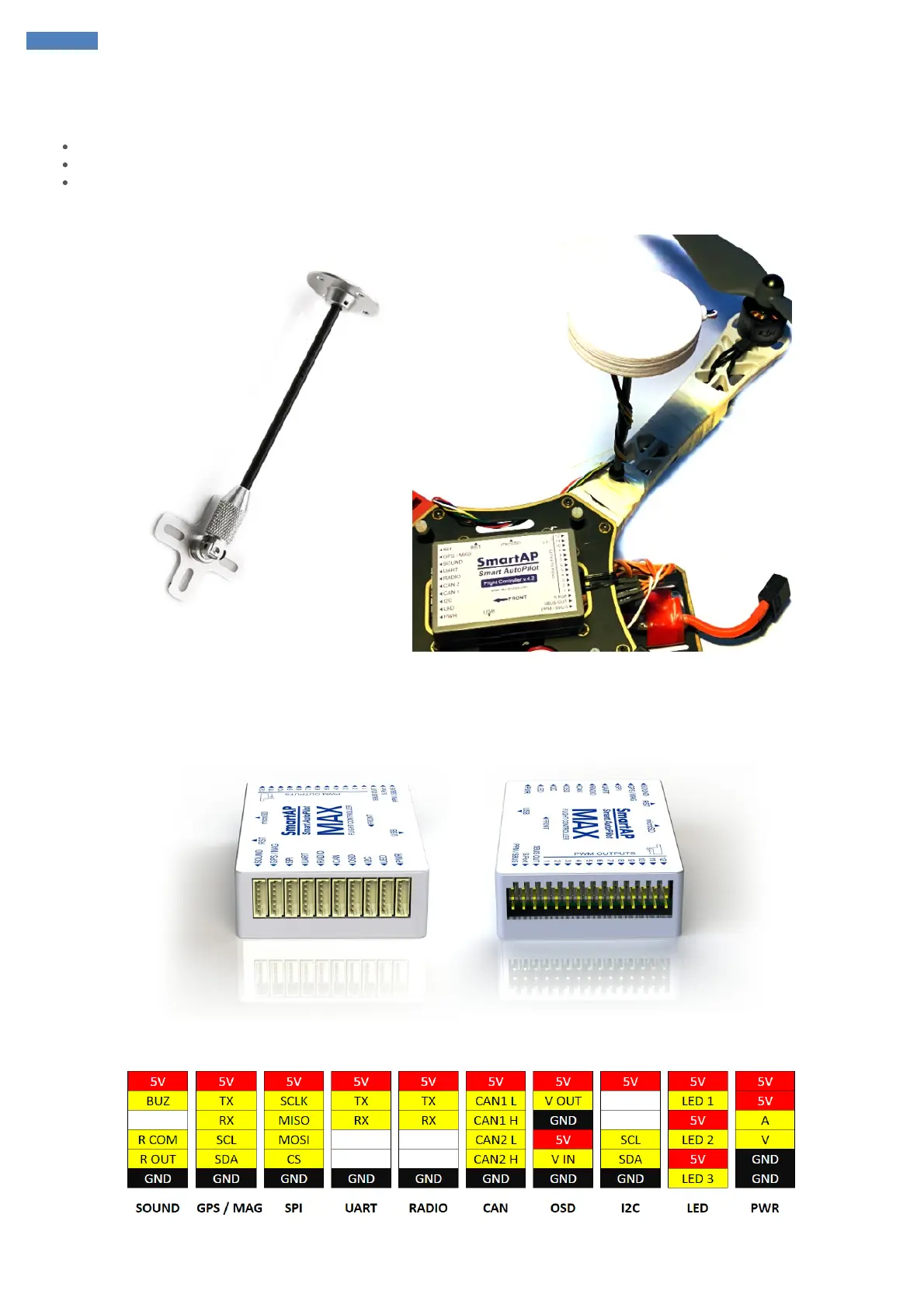

GNSS / MAG
GNSS Module provides positioning information to the system and is sensitive to EMI noise. Make sure to place GNSS module as far as possible
from:
Main body of the airframe
RF emitting devices, such as video transmitters
High-current cables (ESC / motors power supply)
It’s recommended to use GPS mast for that. Connect the cable and put the GPS on a mast.
Connecting Peripherals
Metal case version
Ports pinout for the Front and Rear panels
Front panel connectors pinout:
Rear panel connectors pinout:
