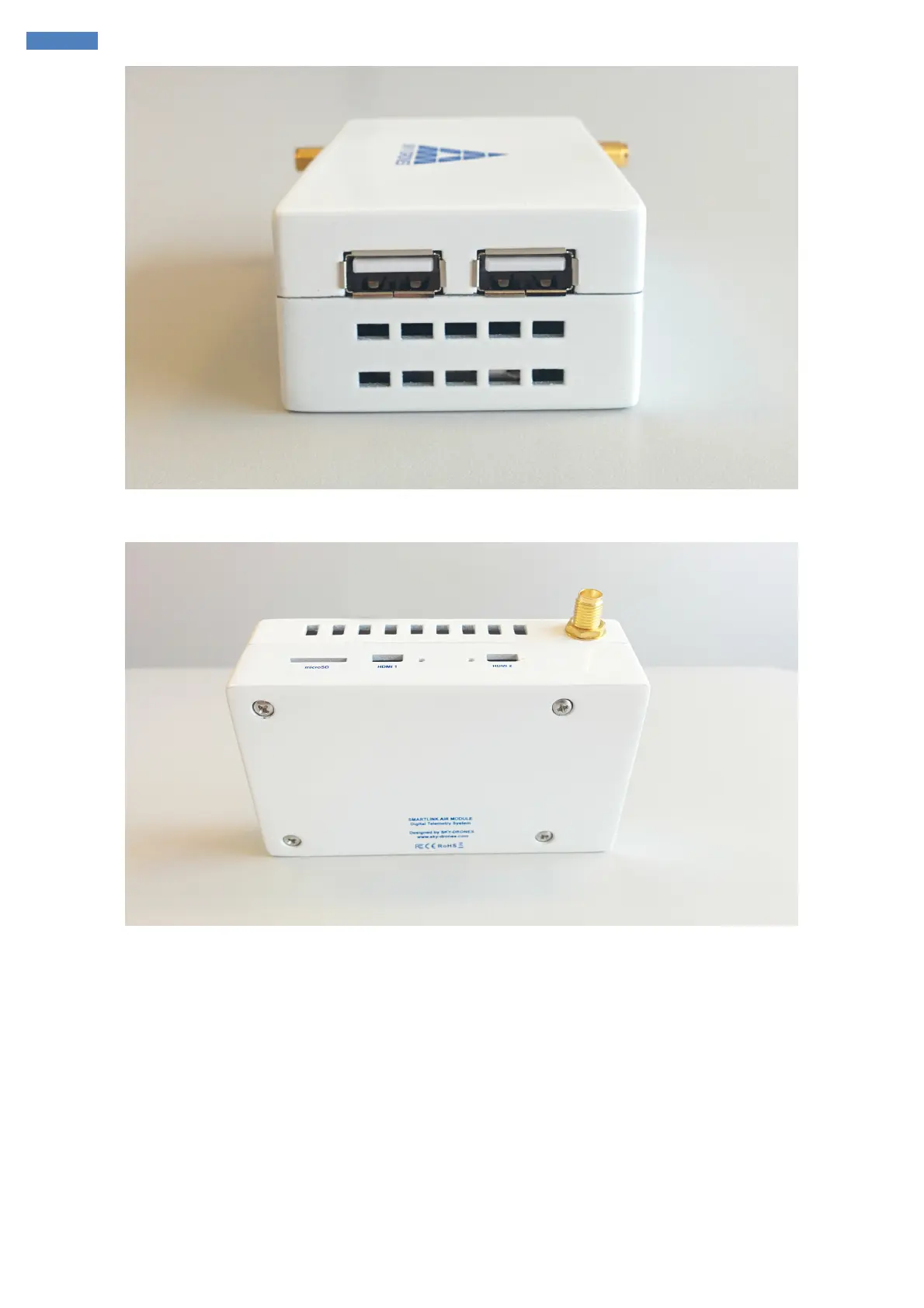

Bottom

Ground Module

Top

Front side has integrated fan. It's important to have clear space for air flow circulation in front of this side.

SmartAP AutoPilot User’s Guide Interfaces

Sky-Drones - SmartAP Flight Control Systems 52 / 151
