Specifications
Introduction

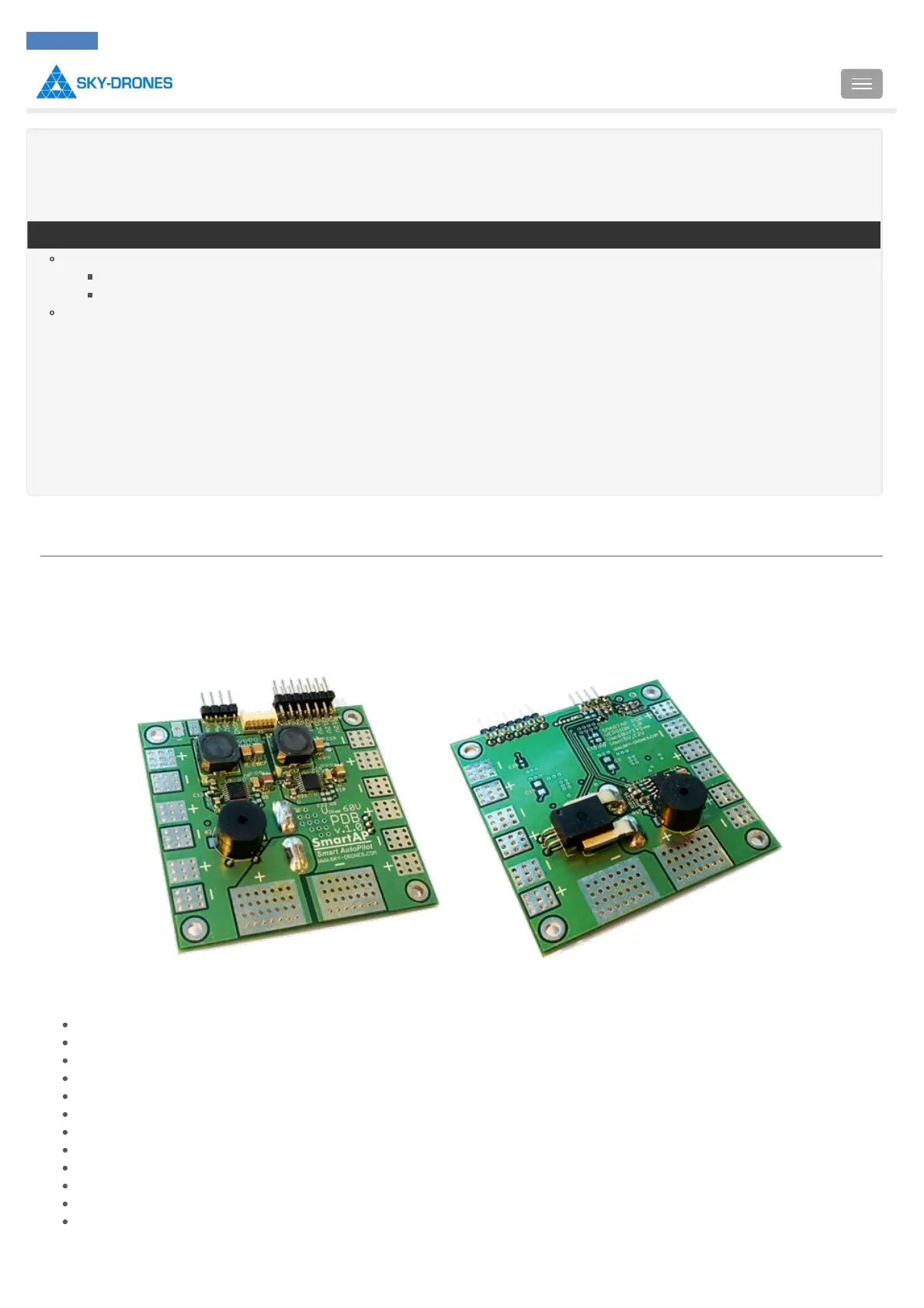

SmartAP PDB (Power Distribution Board) is a special board which allows transferring the power from the battery to ESCs / Motors and generate
power supply for the flight controller and other peripherals with different voltage levels. Also, PDB provides the functionality for battery voltage /
current measurements. SmartAP PDB makes high-power lines connections easier and much more reliable.
Features
Size: 65x65 mm, four 3mm mounting holes
Input voltage up to 60 Volts (14S)
Capability to handle extremenly high currents (peak current up to 400A)
Power input from the main battery, possibility to connect up to 4 independent batteries
12 pairs of pads (6 on top, 6 on bottom) for powering up to 12 motors (all possible airframe configurations supported)
Integrated voltage and current sensors
Integrated DC-DC converter from 10-60 V input (up to 14S battery) to 5V output to power peripherals
Integrated DC-DC converter from 10-60 V input (up to 14S battery) to 12V output to power peripherals
5V and 12V power output terminals (standard 2.54mm/0.1" connectors)
Integrated loud electromagnetic sounder (buzzer)
Power output for the flight controller (both 5V and battery VIN)
Fully compatible with all SmartAP Autopilots
For further information, please, refer to the Installation section.
