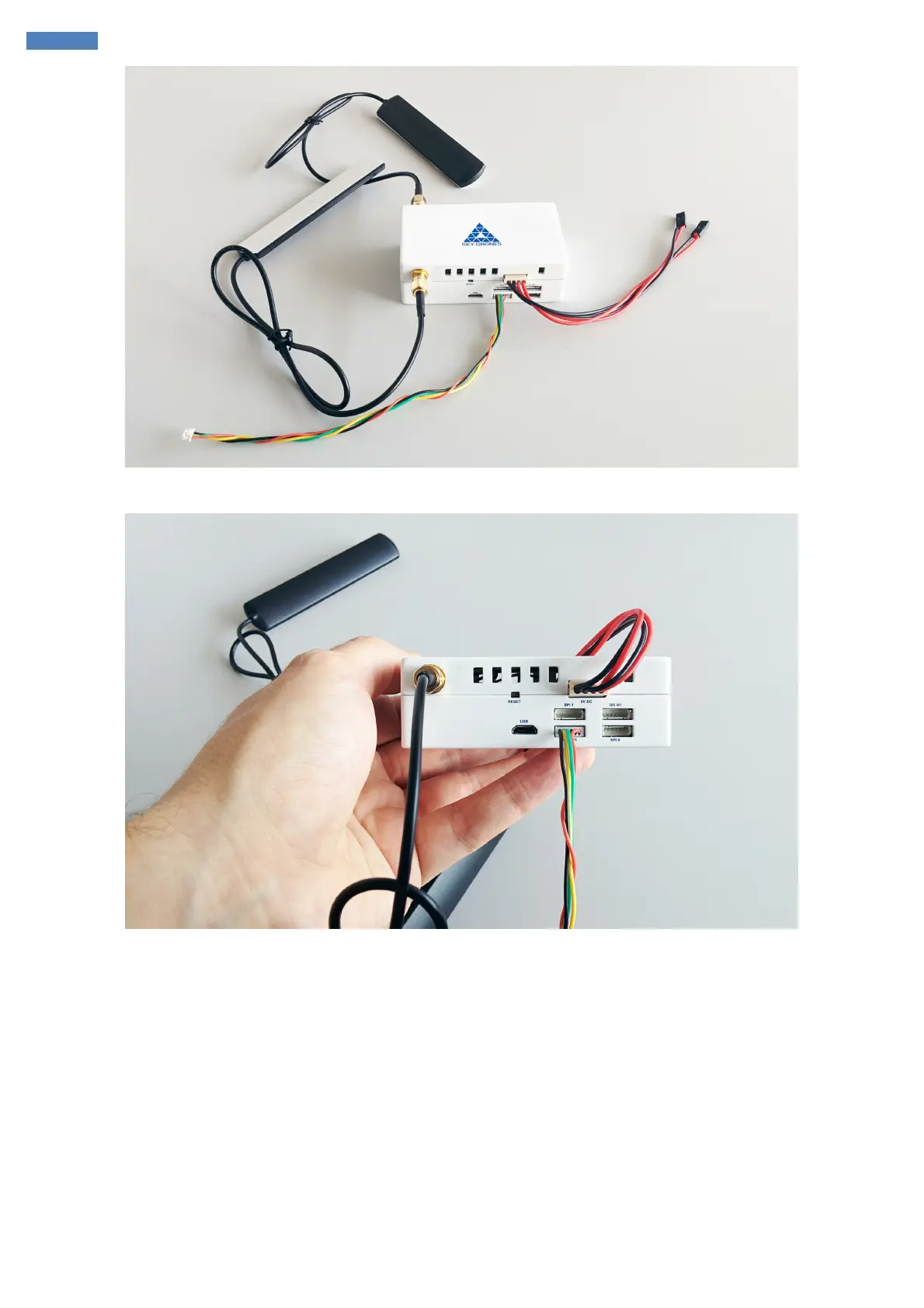

Here it is how air module should look like with power and telemetry cables connected:

Connect one or two microHDMI cables to microHDMI port:

SmartAP AutoPilot User’s Guide Preparing Ground module

Sky-Drones - SmartAP Flight Control Systems 58 / 151
