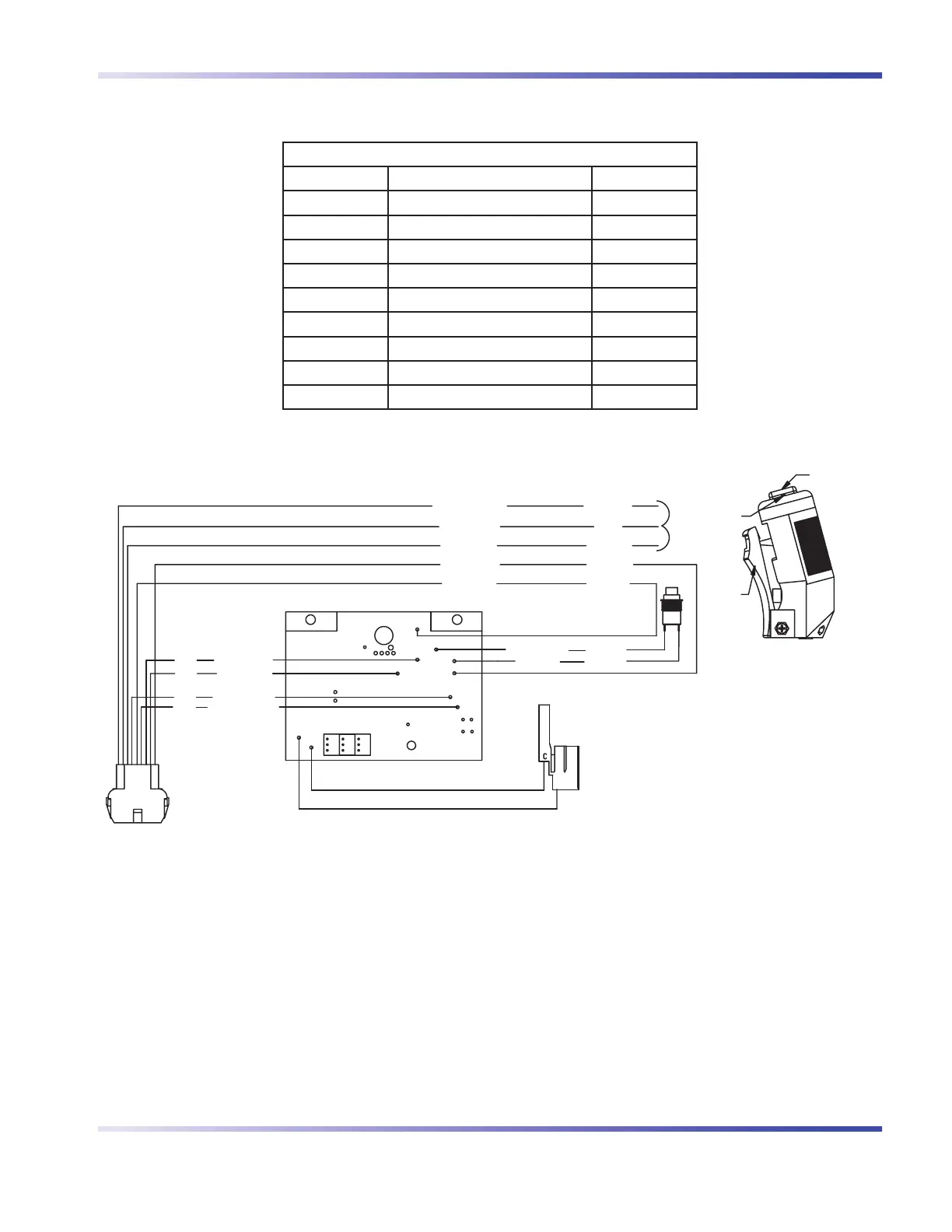

5.1-3 OEM Controller switch wiring
WIRE CHART
COLOR FROM TO
WHT/RED STEER LEFT PIN #1
WHT/GRN STEER COMMON PIN #2
WHT STEER RIGHT PIN #3
YEL FORWARD/UP PIN #4
WHT/BLK +24V INPUT PIN #5
GRY REVERSE/DOWN PIN #6
BLU PWM OUT (A) PIN #7
BLK GROUND (-) PIN #8
WHT/BLU ENABLE OUT PIN #9
DOUBLE DOT
(STEER RIGHT)
SINGLE DOT
(STEER LEFT)
ENABLE
STEER COMMON
STEER RIGHT
STEER LEFT
ENABLE OUT
+24V INPUT
WHT/GRN
WHT
BLU PWD OUT (A)
BLK GROUND (-)
YEL FORWARD/UP
GRY
RED NO
S1
H1
H2
H3
H4
H5
H10
H6
H7
H8
H9
15589 PCB
BLK
REVERSE/DOWN
CONNECTOR
WHT/RED
WHT/BLU
WHT/BLK
WHT/BLK(+24V INPUT)
WHT/YEL(ENABLE)
