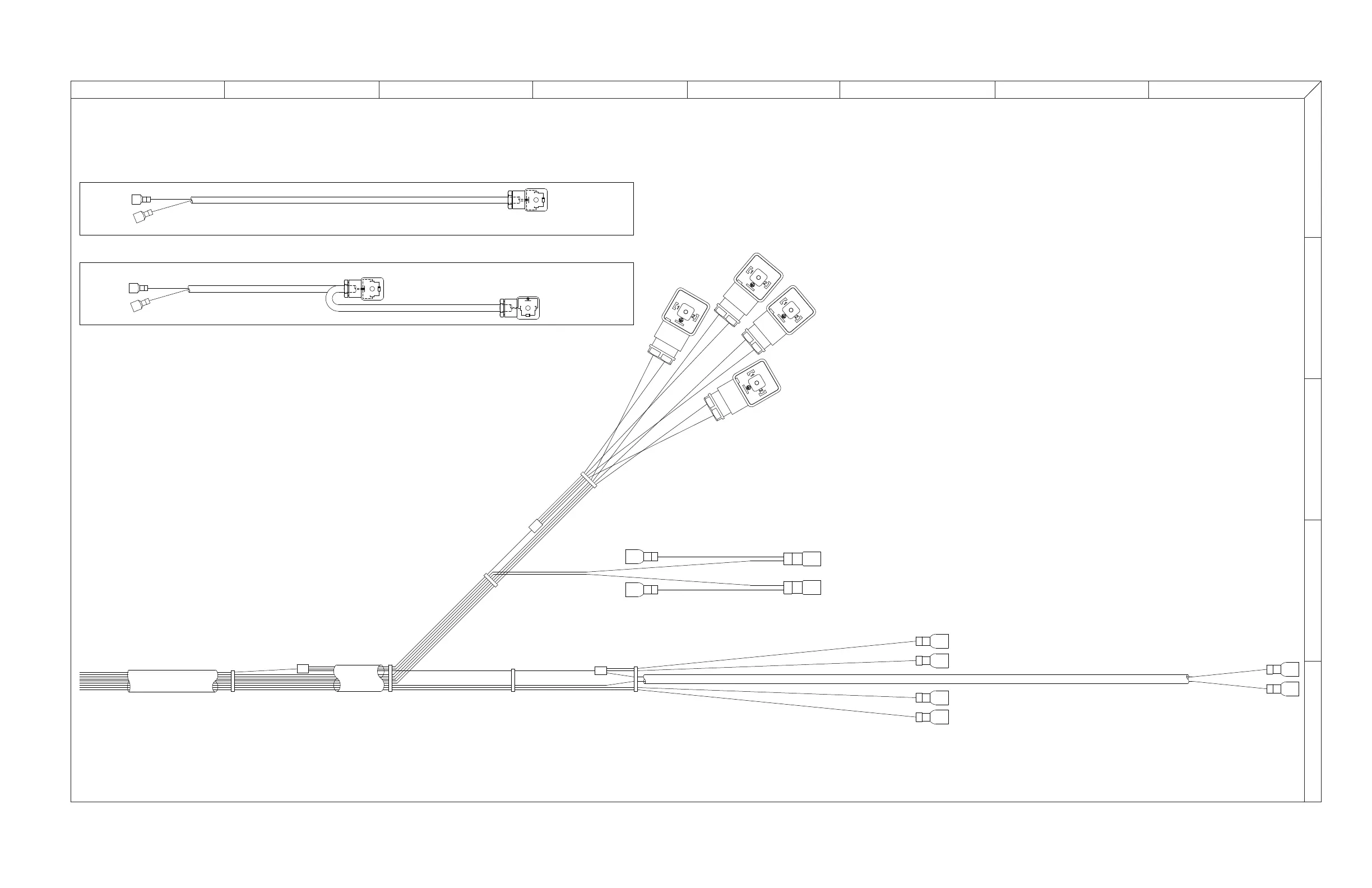

Skyjack SJ 4632 - Main Manifold Harness and Holding Valve Harness (ANSI;CSA & EE Rated)

SKYJACK, Page 23SJIII Conventional Series
143911
A B C D E F G H
V
Z
Y
X
W
13
02
21
2
1
13 - BLACK
02 - WHITE
13 - BLACK
02 - WHITE
02
13
1 2
HOLDING VALVE
PIN 1 - 13 BLACK
PIN 2 - 02 WHITE
HOLDING VALVE (UPPER)
PIN 1 - 13 BLACK
PIN 2 - 02 WHITE
HOLDING VALVE (LOWER)
PIN 1 - 13 BLACK
PIN 2 - 02 WHITE
FORWARD
FORWARD VALVE
PIN 1 - 16 WHITE/BLACK
PIN 2 - 02 WHITE
REVERSE VALVE
PIN 1 - 15 BLUE
PIN 2 - 02 WHITE
15
REVERSE
INSERT ORIENTATION
BOTTOM VIEW
16
CLEAR
02
CLEAR
LEFT
02
24
CLEAR
RIGHT
23 02
CLEAR
02
RIGHT STEER VALVE
PIN 1 - 23 BLACK/WHITE
PIN 2 - 02 WHITE
LEFT STEER VALVE
PIN 1 - 24 BLUE/BLACK
PIN 2 - 02 WHITE
02
59
PROPORTIONAL VALVE
59 - ORANGE/BLACK
02 - WHITE
LOWERING VALVE
13 - ORANGE
02 - WHITE
02
14
LIFT VALVE
14 - BLACK
02 - WHITE
17A
02
02
13
02
13
02
BRAKE VALVE
17A - BLUE/RED
02 - WHITE
02
02
TO ELECTRIC PANEL - 9 WIRES
HOLDING VALVE HARNESS - MODEL XX20
HOLDING VALVE HARNESS - MODEL XX26 / XX32
02 - WHITE
13 - ORANGE
14 - BLACK
15 - BLUE
16 - WHITE/BLACK
17A - BLUE/RED
23 - BLACK/WHITE
24 - BLUE/BLACK
59 - ORANGE/BLACK
HOLDING VALVE
13 - ORANGE
02 - WHITE
3.14 Main Manifold Harness and Holding Valve Harness (ANSI/CSA & EE Rated)
M146669AA_S3
