Skyjack SJ 4632 - Harnesses Diagram

SJIII Conventional Series
143911
SKYJACK, Page 28
A B C D E F G H
V
Z
Y
X
W

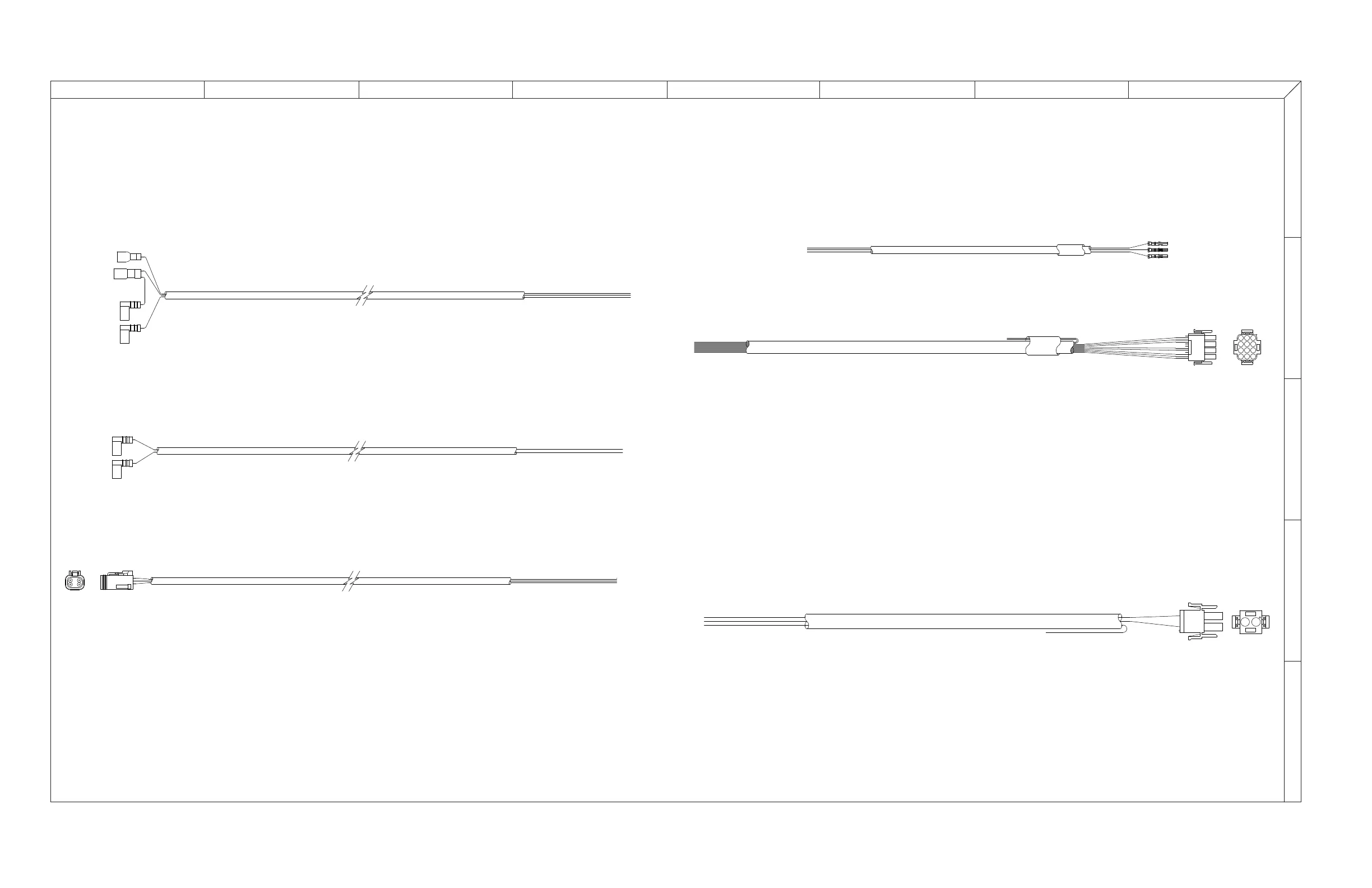

3.19 Harnesses Diagram
M146588AA_S3
2 1
PIN 1 - 3A BLACK
PIN 2 - 05 WHITE
BACK VIEW
TO ELECTRIC PANEL
3A - BLACK
05 - WHITE
(OPT) - GREEN
49
02
TO ELECTRIC PANEL
02 - WHITE
22 - GREEN
02 - WHITE
49 - BLACK
TO HORN
02
22
TO FLASHING LIGHT
22 - GREEN
02 - WHITE
49 - BLACK
FROM ELECTRIC PANEL
28 BLACK
28E WHITE
60 GREEN
TO CONTROL MODULE - P3
PIN 3 - 60 GREEN
PIN 4 - 28 BLACK
PIN 6 - 28E WHITE
PIN 4 - N/U
TO TILT SWITCH
PIN 1 - 19 (BLACK)
PIN 2 - 28 (GREEN)
PIN 3 - 02 (WHITE)
DEUTSCH
14
3 2
TO ELECTRIC PANEL
02 - WHITE
28 - GREEN
19 - BLACK
FROM ELECTRIC PANEL
02 - WHITE
7A - RED
10E - BLACK/WHITE
13 - ORANGE
14 - BLACK
15 - BLUE
16 - WHITE/BLACK
18B - RED/BLACK
N/U - BLUE/BLACK
N/U - ORANGE/BLACK
CONTROL MODULE - P2
PIN 1 - N/U
PIN 2 - 10E BLACK/WHITE
PIN 3 - 14 BLACK
PIN 4 - 13 ORANGE
PIN 5 - N/U
PIN 6 - N/U
PIN 7 - 16 WHITE/BLACK
PIN 8 - 15 BLUE
PIN 9 - N/U
PIN 10 - 18B RED/BLACK
PIN 11 - 02 WHITE
PIN 12 - 7A RED
11 1012
BACK VIEW
3
9
6
2 1
8 7
5 4
49
02
CONTROL MODULE HARNESSES
CHARGER CUTOUT HARNESS
TILT SWITCH HARNESS
HORN HARNESS
HORN/FLASHING LIGHT HARNESS
TO ELECTRIC PANEL
02 - WHITE
02 - WHITE
49 - BLACK
TO HORN
49 - BLACK
