Skyjack SJ 4632 - Electrical Components Parts List

Index
No.
Skyjack
Part No.
Qty. Description
SKYJACK, Page 10 SJIII Conventional Series
143911
Service and Maintenance Section 3 - System Component Identification and Schematics
3.6 Electrical Components Parts List

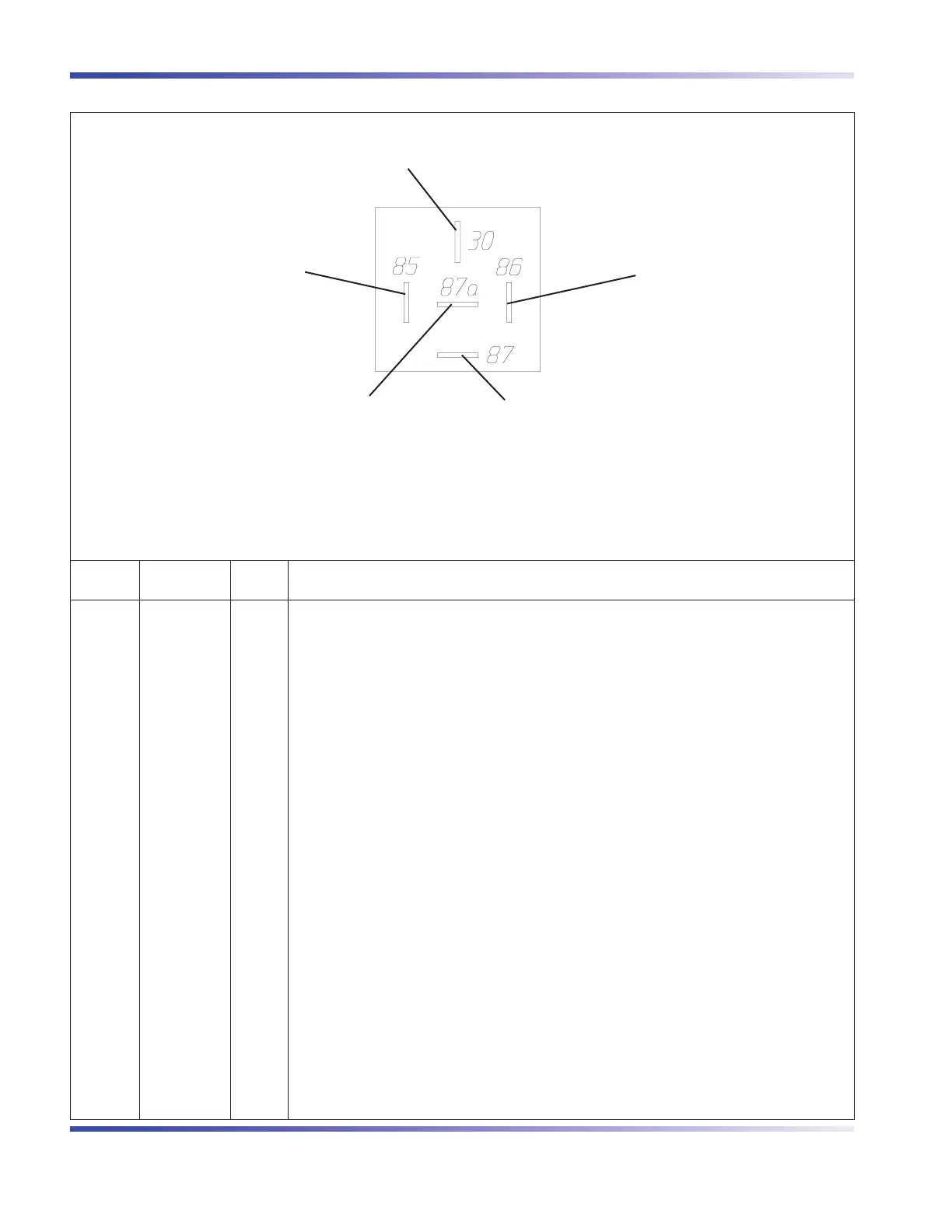

CONTROL (B+)
NORMALLY
CLOSED
CONTACT
SUPPLY (B+) (Common)
GROUND (B-)
NORMALLY
OPEN
CONTACT
17CR 108589 1 RELAY, 24 Volt (Transfer)
21ACR 108589 1 RELAY, 24 Volt (Proportional) (CE)
21CCR 108589 1 RELAY, 24 Volt (Proportional) (ANSI/CSA & EE rated)
28CR 108589 1 RELAY, 24 Volt (Tilt switch) (ANSI/CSA & EE rated)
28CR1 108589 1 RELAY, 24 Volt (Tilt switch) (CE)
28CR2 108589 1 RELAY, 24 Volt (Down) (CE)
28ECR1 108589 1 RELAY, 24 Volt (Auxiliary tilt) (CE)
28ECR2 108589 1 RELAY, 24 Volt (Auxiliary down) (CE)
2H-13 103605 1 COIL, 24 Volt (Lowering valve) (ANSI/CSA)
2H-13B 103605 1 COIL, 24 Volt (Lowering valve) (CE)
2H-13-1 104493 1 COIL, 24 Volt (Holding valve) (ANSI/CSA)
2H-13-2 104493 1 COIL, 24 Volt (Holding valve) (ANSI/CSA)
2H-13B-1 104493 1 COIL, 24 Volt (Holding valve) (CE)
2H-13B-2 104493 1 COIL, 24 Volt (Holding valve) (CE)
2H-18A 103605 1 COIL, 24 Volt (Differential valve)
2H-59 115370 1 COIL, 24 Volt (Proportional valve)
3H-14 105610 1 COIL, 24 Volt (Lift valve) (CE)
3H-14A 105610 1 COIL, 24 Volt (Lift valve) (ANSI/CSA)
3H-17A 103605 1 COIL, 24 Volt (Brake valve)
3H-18A-1 103605 1 COIL, 24 Volt (Speed A)
3H-18A-2 103605 1 COIL, 24 Volt (Speed B)
4H-15 153335 1 COIL, 24 Volt (Reverse drive spool valve) (Hytos)
128320 1 COIL, 24 Volt (Reverse drive spool valve) (Hytos) (if equipped)
4H-16 153335 1 COIL, 24 Volt (Forward drive spool valve) (Hytos)
128320 1 COIL, 24 Volt (Forward drive spool valve) (Hytos) (if equipped)
Parts list continued on the following page.
