Skyjack SJ 4632 - Platform Control Console Diagram (with Rotary Switch)

SKYJACK, Page 14 SJIII Conventional Series
143911
Service and Maintenance Section 3 - System Component Identification and Schematics

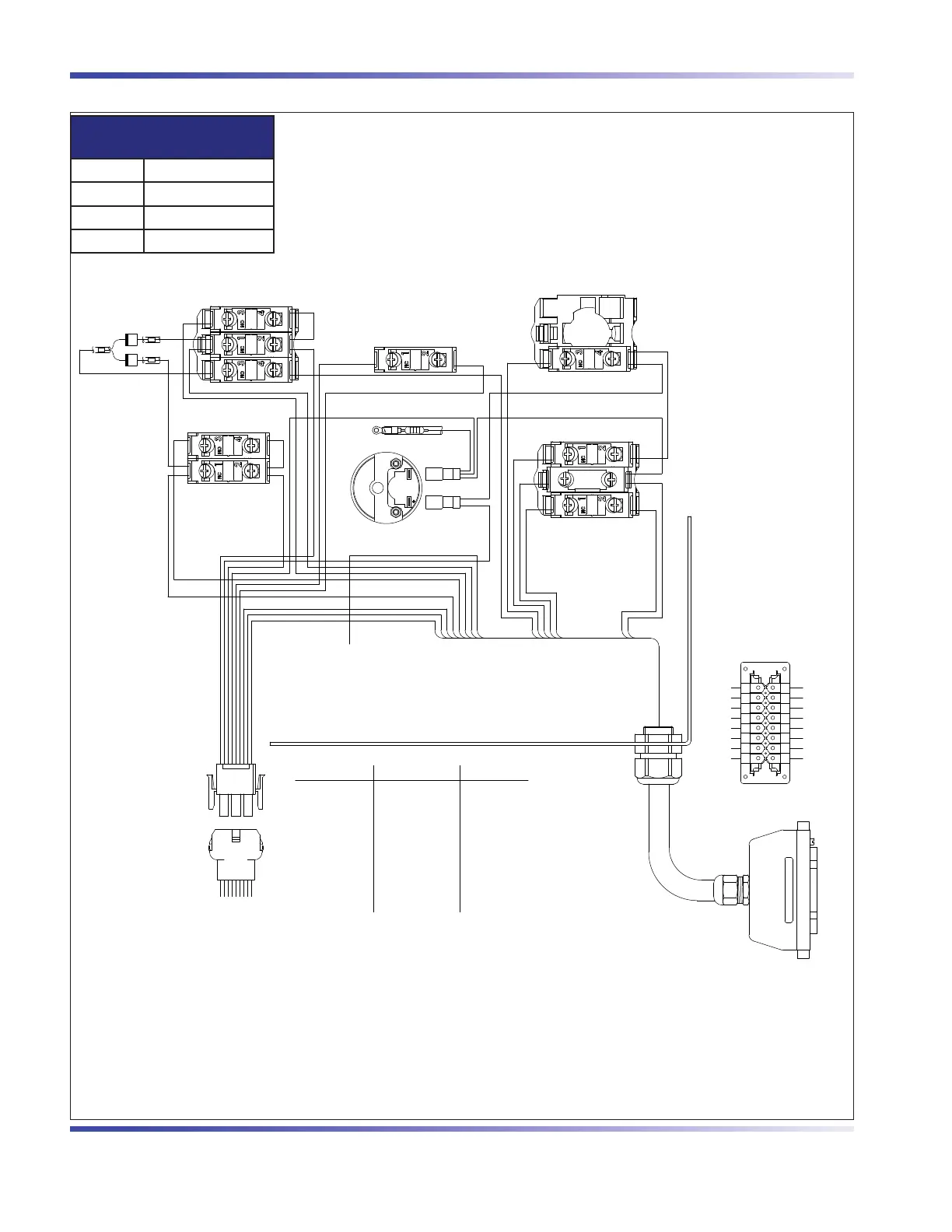

3.7b Platform Control Console Diagram (with Rotary Switch)
M146621AA
X2
X1
BLUE BLACK (24)
RED WHITE (60/7A)
BLACK WHITE (23)
GREEN BLACK (21B) (OPT)
ORANGE BLACK (59)
WHITE BLACK (16)
MALE
CRD1
RED BLACK (18)
(NOT USED)
BACK VIEW
7
6
3
4
5
8
(13) ORANGE
(14) BLACK
(07) RED
(8C) BLUE WHITE
(49) GREEN WHITE
(7A) GREEN
91
(02) WHITE
(15) BLUE
2 10
16
13
11
12
15
14
21B GREEN/BLACK - TIED BACK
02
07
7A
08
60/7A
8C
49
08
08
12B
18
7B
8A
13
15
A
16
14
B
16
15
D15D16
7B
02
08
00
RST1
PIN # - FUNCTION CTRL BOX HARNESS JOYSTICK HARNESS
PIN 1 - LEFT 24 BLUE/BLACK WHITE/RED
PIN 2 - STEERING VS+ 12B BROWN/RED WHITE/GREEN
PIN 3 - RIGHT 23 BLACK/WHITE WHITE
PIN 4 - FWD/UP B RED YELLOW
PIN 5 - JOYSTICK VS+ 08 BLUE WHITE/BLACK
PIN 6 - REV/DOWN A PURPLE/WHITE GREY
PIN 7 - PWM 59 ORANGE/BLACK BLUE
PIN 8 - GND 02 WHITE BLACK
PIN 9 - ENABLE VS+ 8A BLUE WHITE/BLUE
CTRL BOX
JOYSTICK HARNESS
HARNESS
B
A
XX
HYDRAULIC PROPORTIONAL
118711-0
S8 - HORN
S4 - EMERGENCY STOP
LED-1
S3 - LIFT/DRIVE SELECTOR
TOP SECTION
S3 - LIFT/DRIVE SELECTOR
BOTTOM SECTION
S3 - LIFT/DRIVE SELECTOR
MIDDLE SECTION
Serial Breakdown
Reference Chart
Model Serial Number
SJ3 3220 60002137 & below
SJ3 3226 27006058 & below
SJ3 46XX 70006693 & below
AC
