Skyjack SJ 4632 - Horn;Tilt Switch;Flashing Light Diagram

SJIII Conventional Series
143911
SKYJACK, Page 30
A B C D E F G H
V
Z
Y
X
W
H1
HORN
22
02
24V
02 - WHITE
22 - GREEN
FL-22
FLASHING LIGHT
23
4 1
DEUTSCH
PIN 1 - 19 (BLACK)
PIN 2 - 28 (GREEN)
PIN 3 - 02 (WHITE)
PIN 4 - N/U
TS1
TILT SWITCH (ANSI/CSA)
DUAL FLASHING LIGHT HARNESS
BLACK - 22
WHITE - 02
02
22
02
BLACK - 22
WHITE - 02
22
22
02
22
02
02
49
02
02
22
HORN/FLASHING LIGHT HARNESS
FROM ELEC. PANEL
WHITE - 02 (CE - RING TERM.)
WHITE - 02 (ANSI - FEM. TERM.)
BLACK - 22

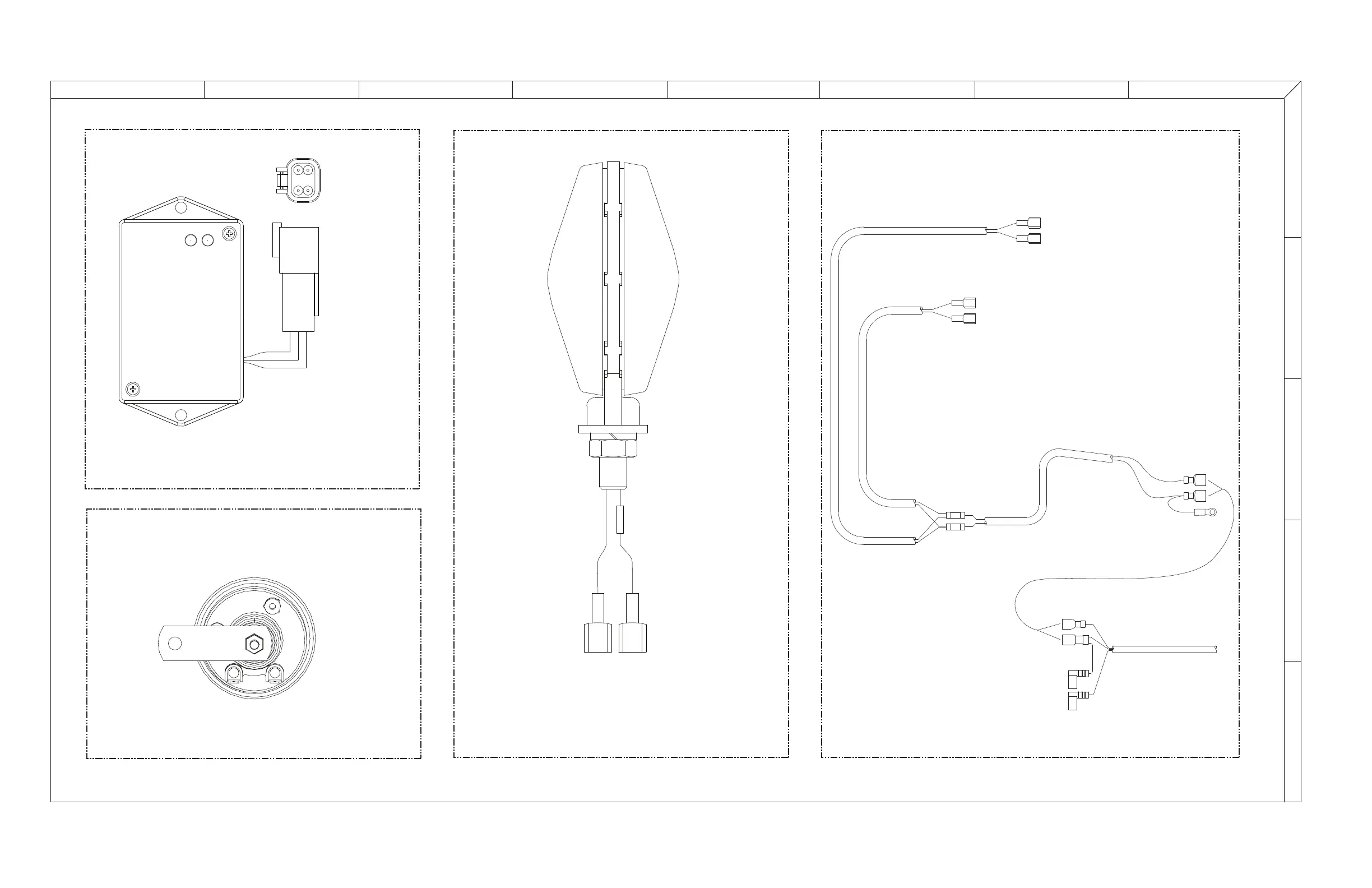

3.21 Horn/Tilt Switch/Flashing Light Diagram
M146648AA_S3B
AC
