Skyjack SJ 4632 - Control Module Pin Reference Chart; Load Sensing System - CE

SKYJACK, Page 11SJIII Series
Section 5 - Procedures Service and Maintenance
Load Sensing System - CE

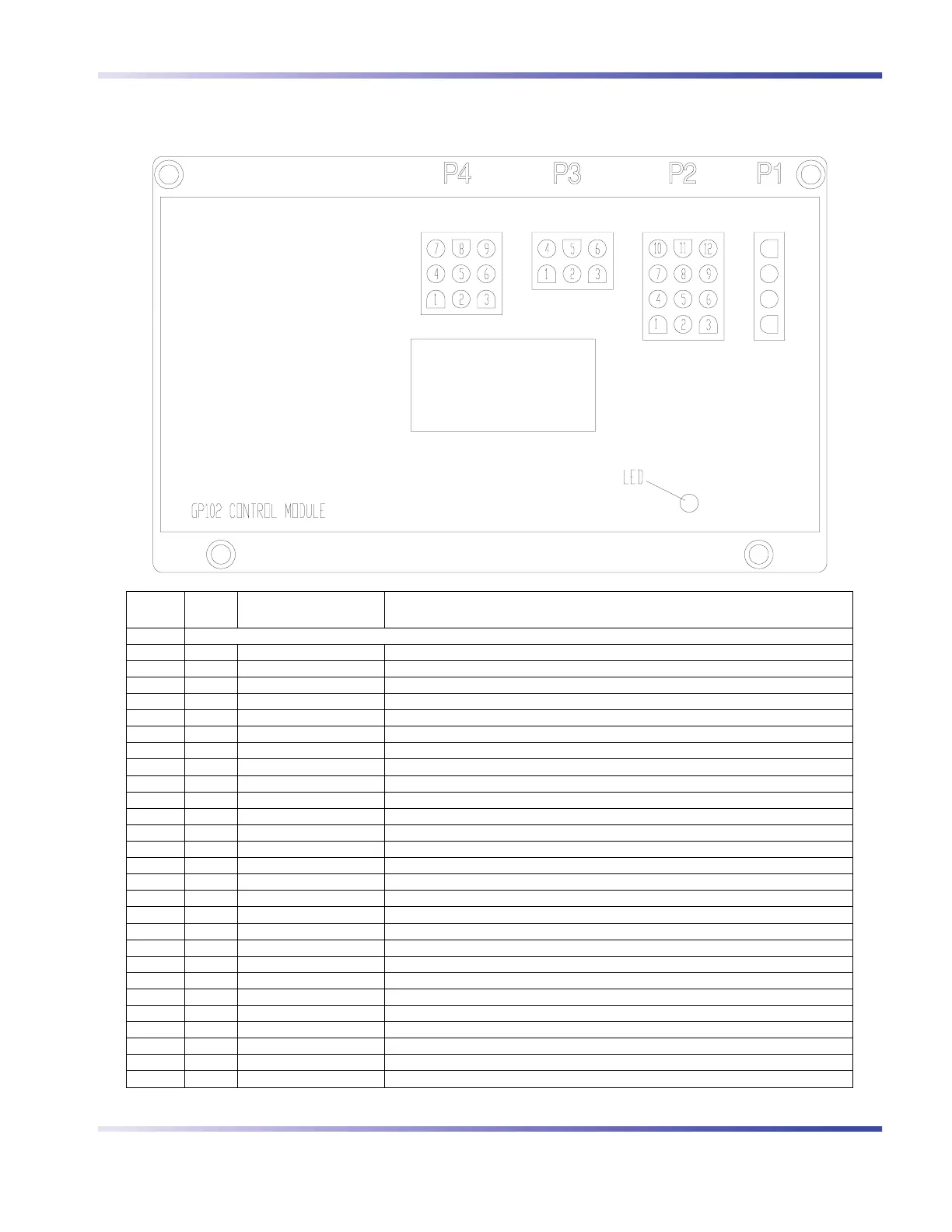

5.3-1 Control Module Pin Reference Chart
PLUG
PIN
#
WIRE #
AND COLOUR
WIRE FUNCTION
P1 The Calibration Connection
P2 1 Not Used Not Used
P2 2 10E Black/White Input Power From Base Terminal Strip To Confirm Lower Control Is Selected
P2 3 14 Black Raise Platform Input
P2 4 13 Orange Lower Platform Input
P2 5 Not Used Not Used
P2 6 Not Used Not Used
P2 7 16 White/Black Forward Direction Input
P2 8 15 Blue Reverse Direction Input
P2 9 Not Used Not Used
P2 10 18B Red/Black Input From LS1 High Speed Limit Switch To Verify ON/OFF Limits
P2 11 02 White Negative Input From Base Terminal Strip
P2 12 7A Red Main Power Input From Base Terminal Strip
P3 1 22 Red Output To FL-22 Flashing Light
P3 2 29 Black Output To BP-29 Beeper
P3 3 60 Black/White Output To Overload Warning Light On Control Box
P3 4 28 Green/Black Output To 28CR1 Tilt Relay And 28CR2 Down Relay
P3 5 02 White Negative for Flashing Light and Beeper
P3 6 28E Green/White Output To 28ECR1 Aux. Tilt Relay And 28ECR2 Aux. Down Relay
P4 1 Not Used Not Used
P4 2 60A Green Varied Input From Transducer
P4 3 28B Green Varied Input From Angle Transducer
P4 4 Not Used Not Used
P4 5 Not Used Not Used
P4 6 910 Black Positive Signal To Angle Transducer
P4 7 900 White Negative Signal To Angle Transducer
P4 8 902 White Negative Signal To Pressure Transducer
P4 9 910A Black Positive Signal To Pressure Transducer
