SECTION 6, Page 125SJ-800 Series E Battery Powered
119153
Index
No.
Skyjack
Part No.
Description Qty.
ML1F-1016AA

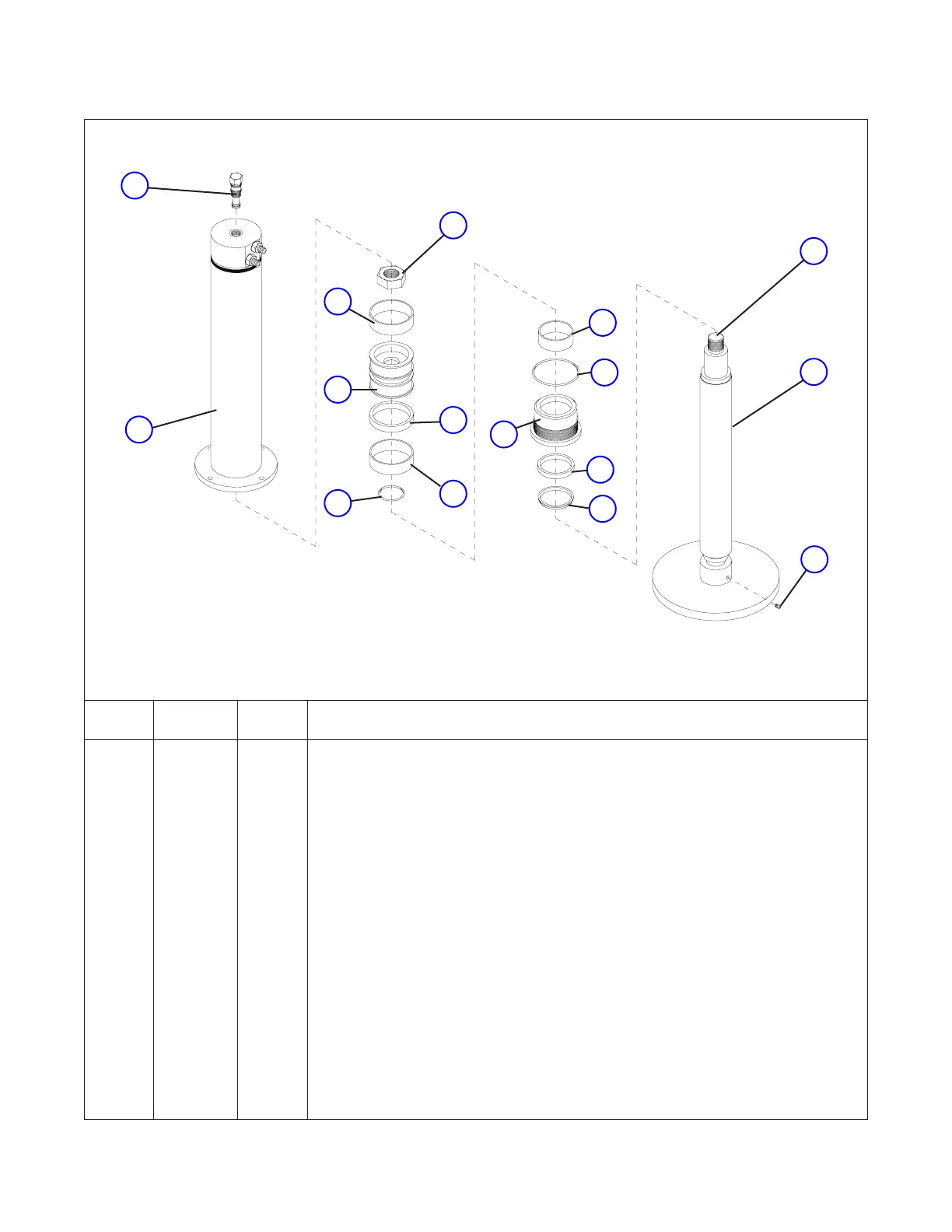

Figure 6.7-3B. Hydraulic Outrigger Option - Cylinder Assembly
(Model 8831E with Serial No. 36840 To 37314) (Model 8841E with Serial No. 41671 To 42702)
A 120389 - CYLINDER ASSEMBLY, Outrigger
1 120386 1 •HOUSING,Cylinder
2 120641 1 •ROD,Cylinder
*3 106229 1 •WIPER,Rod
*4 106228 1 •SEAL,Rod
*5 120445 1 •O-RING,Frontgland
*6 106227 1 •RING,Rodwear
*7 120642 1 •O-RING,Piston
*8 106220 2 •RING,Pistonwear
*9 106225 1 •SEAL,Piston
10 120640 1 •PISTON
11 106230 1 •NUT,Lock1-1/4”-12gradeC
12 120387 1 •GLAND,Fronthead
13 102027 1 •FITTING,Grease1/8NPT
14 118468 1 •COLLAR,Limitswitchactivator
  118469 2 ••SCREW,Cuppointset1/4”-30x5/16”lg.
15 104115 1 VALVE, Pilot check (not part of cylinder)
* 104355 AR KIT, Seal Repair
15
12
11
10
9
8
7
6
5
4
3
2
1
8
14
13
