SECTION 6, Page 126 SJ-800 Series E Battery Powered
119153
ML1F-1016AA

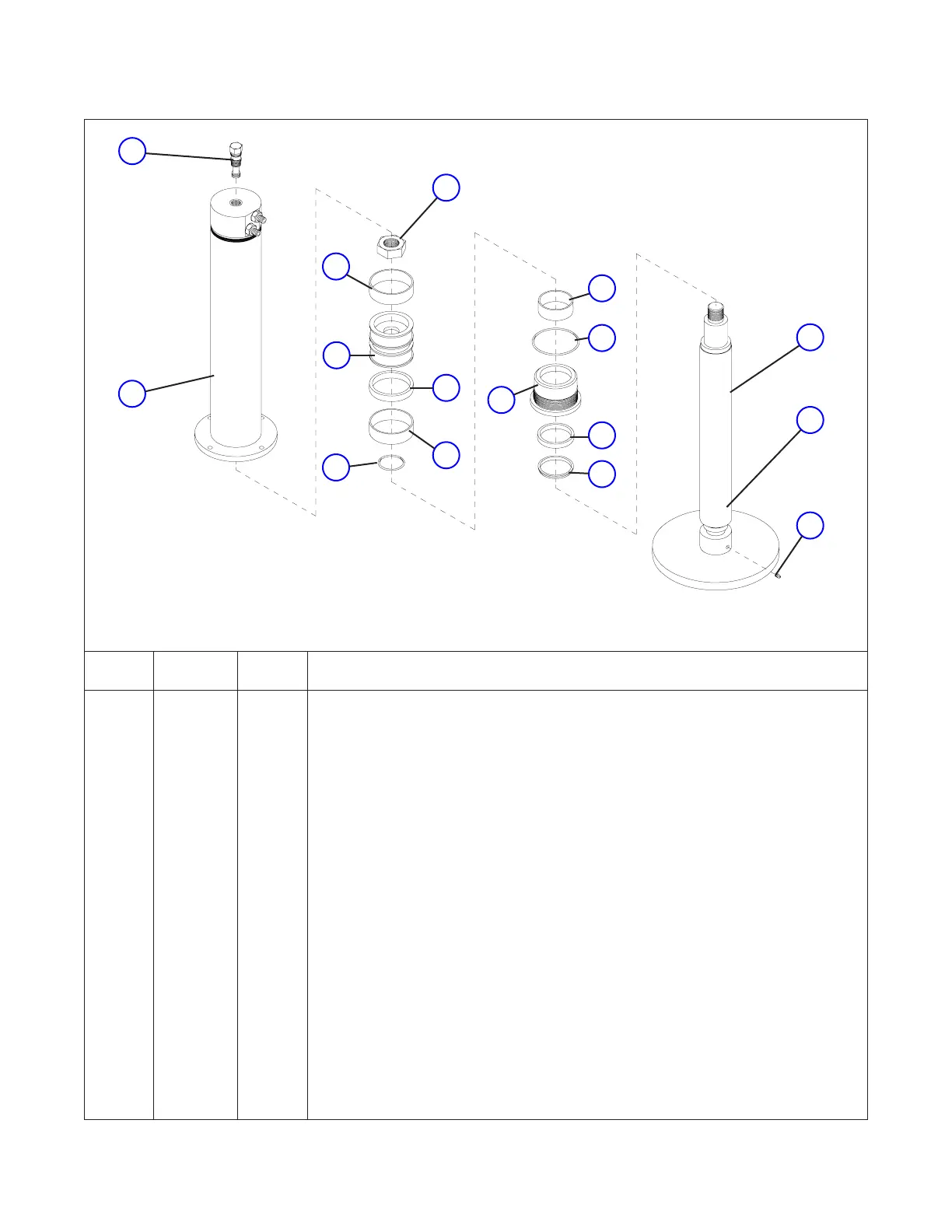

Figure 6.7-3C. Hydraulic Outrigger Option - Cylinder Assembly
(Model 8831E with Serial No. 37315 to 37406) (Model 8841E with Serial No. 42703 to 43044)
A 126091 - CYLINDER ASSEMBLY, Outrigger
1 126087 1 •HOUSING,Cylinder
2 126498 1 •ROD,Cylinder
*3 106229 1 •WIPER,Rod
*4 106228 1 •SEAL,Rod
*5 120445 1 •O-RING,Frontgland
*6 106227 1 •RING,Rodwear
*7 120642 1 •O-RING,Piston
*8 106220 2 •RING,Pistonwear
*9 106225 1 •SEAL,Piston
10 120640 1 •PISTON
11 106230 1 •NUT,Lock1-1/4”-12gradeC
12 120387 1 •GLAND,Fronthead
13 102027 1 •FITTING,Grease1/8NPT
14 126279 1 •RING,Retaining
15 104115 1 VALVE, Pilot check (not part of cylinder)
* 104355 AR KIT, Seal Repair
15
12
11
10
9
8
7
6
5
4
3
2
1
8
14
13
Index
No.
Skyjack
Part No.
Description Qty.
