SECTION 3, Page 2 SJ-800 Series E Battery Powered
119153
CONTROL (B+)
NORMALLY
CLOSED
CONTACT
SUPPLY (B+) (Common)
GROUND (B-)
NORMALLY
OPEN
CONTACT

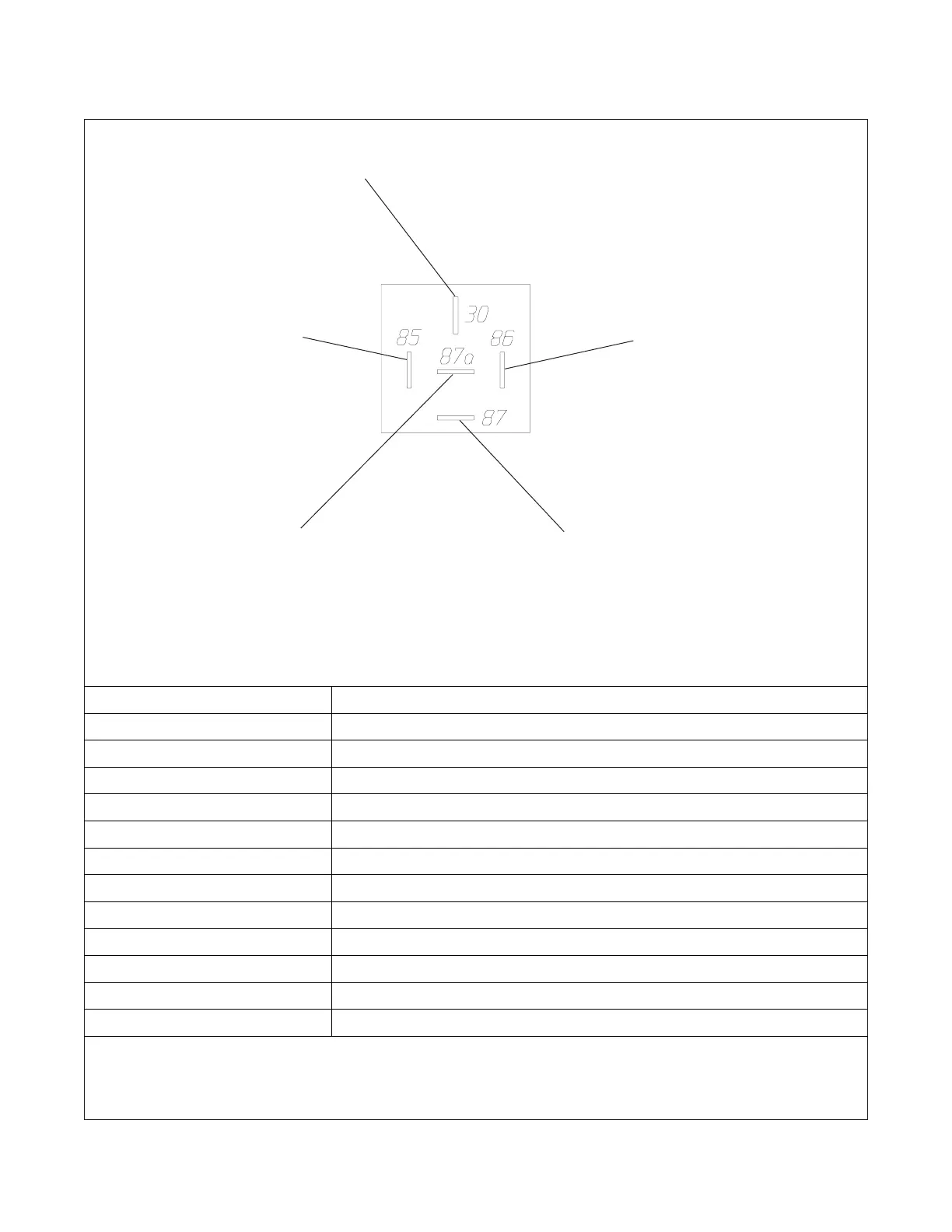

Figure 3.1-1. Relay Function Chart
RELAY NO.RELAY FUNCTION
10ACROutriggerpower
10BCR Brake
12ECR Joystick Enable
17ACR Outrigger lift disable
28CR Tilt
39CRLWS, Limit Switch
41CR LWS Time Delay
42CR LWS Latching
59CCR Speed signal
61CR-1 Drive enable
61CR-2 Lift enable
65CR Lift enable
60066AA
