SECTION 3, Page 3SJ-800 Series E Battery Powered
119153
M10281AA

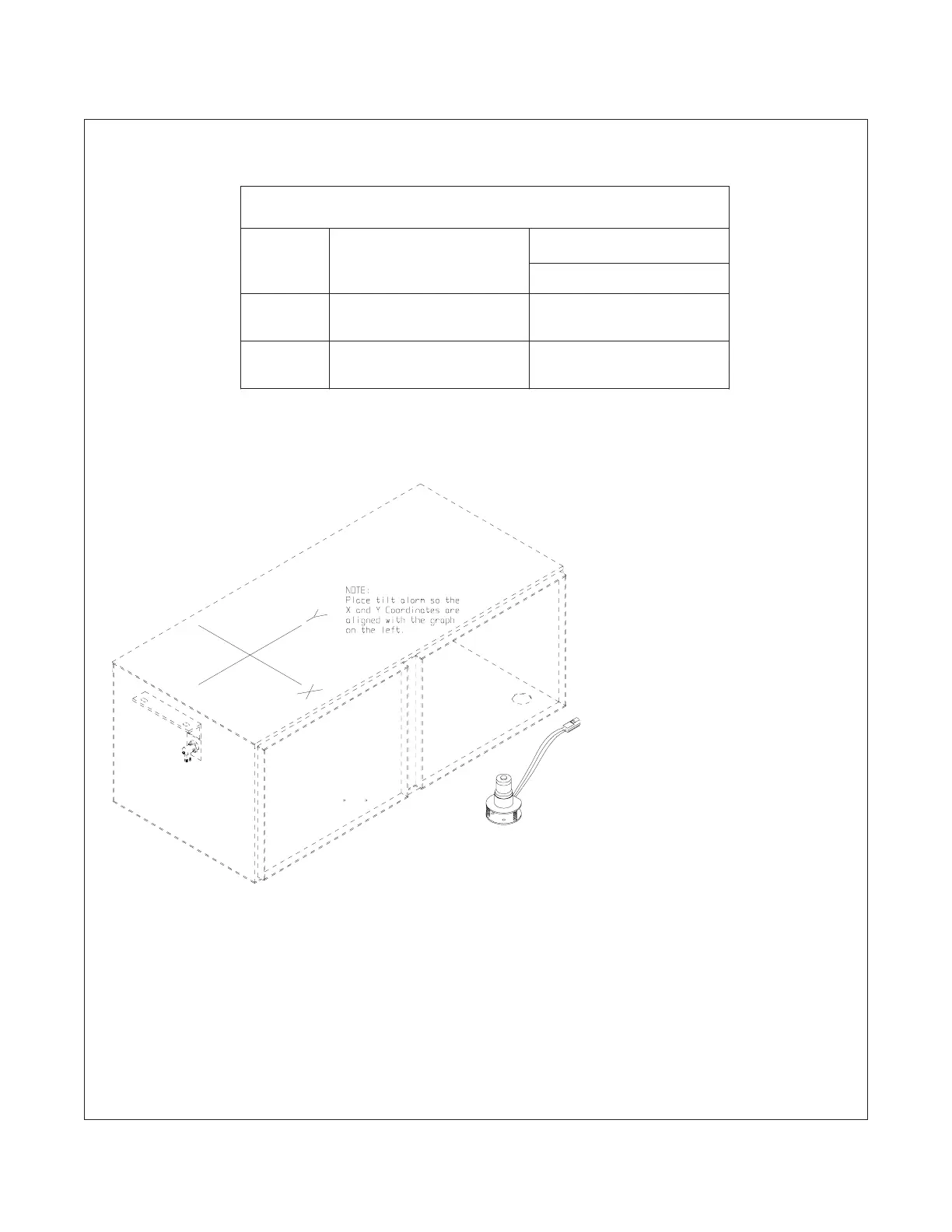

Figure 3.1-2. Tilt Switch Usage Chart
NOTE: Ensure the platform is
parked on a flat level surface
before performing any adjust-
ments or repairs to the tilt
switch assembly.
ANSI, CSA & CE Models
Tilt switch
(X Axis° x Y Axis°)
Model Serial Numbers
117880
(2.5° x 4.5°)
8831E Current production X
8841E Current production X
M600733AA
To Next Page
