114
213558ADA
SJ12, SJ16
Section 5 – Procedures Mast Chain Visual Inspection
2. Once the chains are disconnected, raise the
mast section and remove the lower wear pads.
Mark the location of each wear pad.
3. Lift mast section 5 up and away from the mast
column, make sure the harnesses and the
control cable enclosure box are clear at the top
of the mast. Set the mast section aside.
Section 4

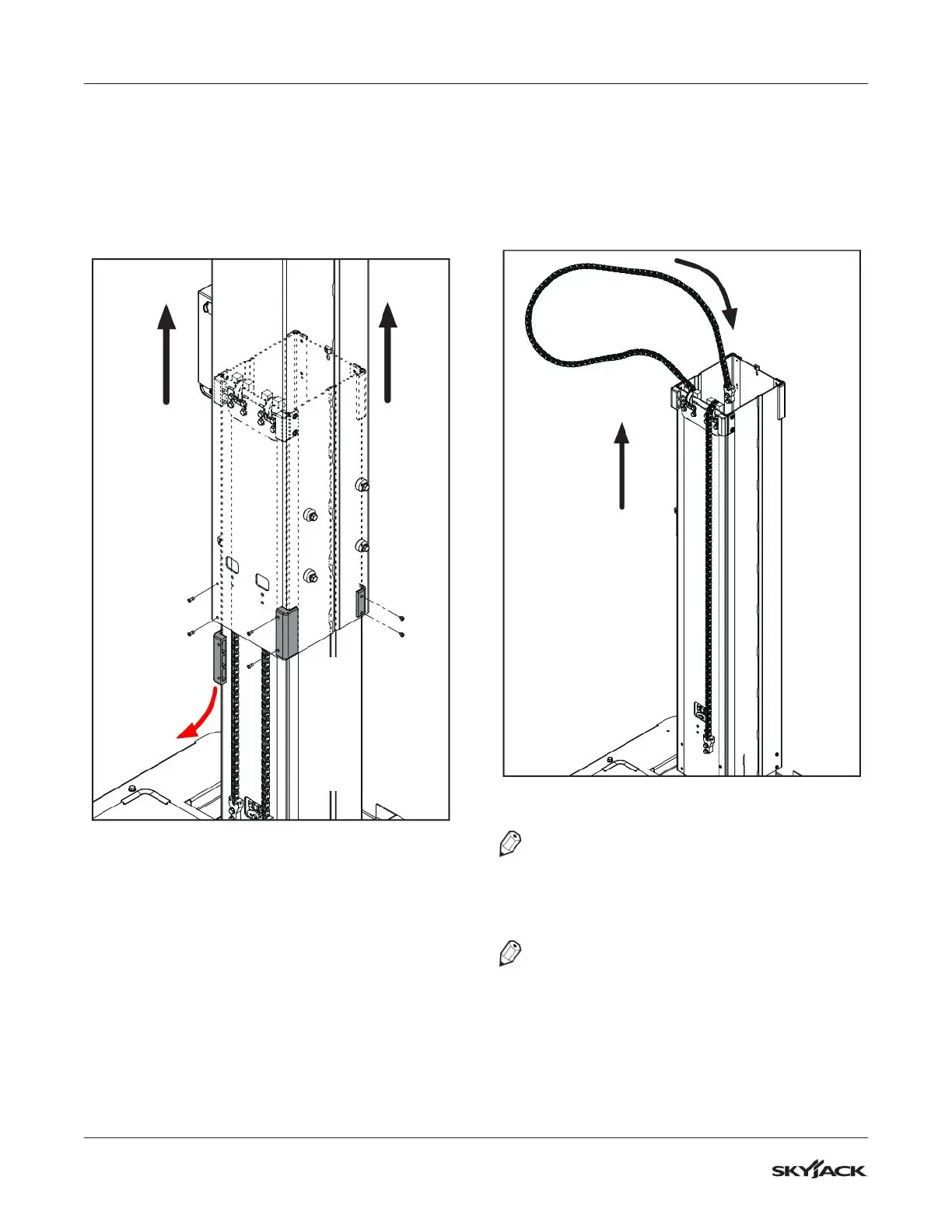

Figure 22 Wear Pads Removal (Section 5)
5.12-3 Mast Section 4 Removal
1. (SJ16 Only) Pull the chains laying on the
outside of section 4 up and over the single
rollers so they drop into the mast column. Make
sure they do not tangle.
Figure 23 Section 3 to Section 5 Chains (SJ16 Only)
NOTE
It is recommended that 2 lifting straps (or similar)
be attached evenly to mast section 4 for a
straight, even lift.
NOTE
For SJ12 - Attach lifting straps away from mast
grab handle and receptacle box.
