Skyjack SJ12 Service Manual

51
SJ12, SJ16
213558ADA
Platform Control Box Cable Section 3 – System Component Identification and Schematics

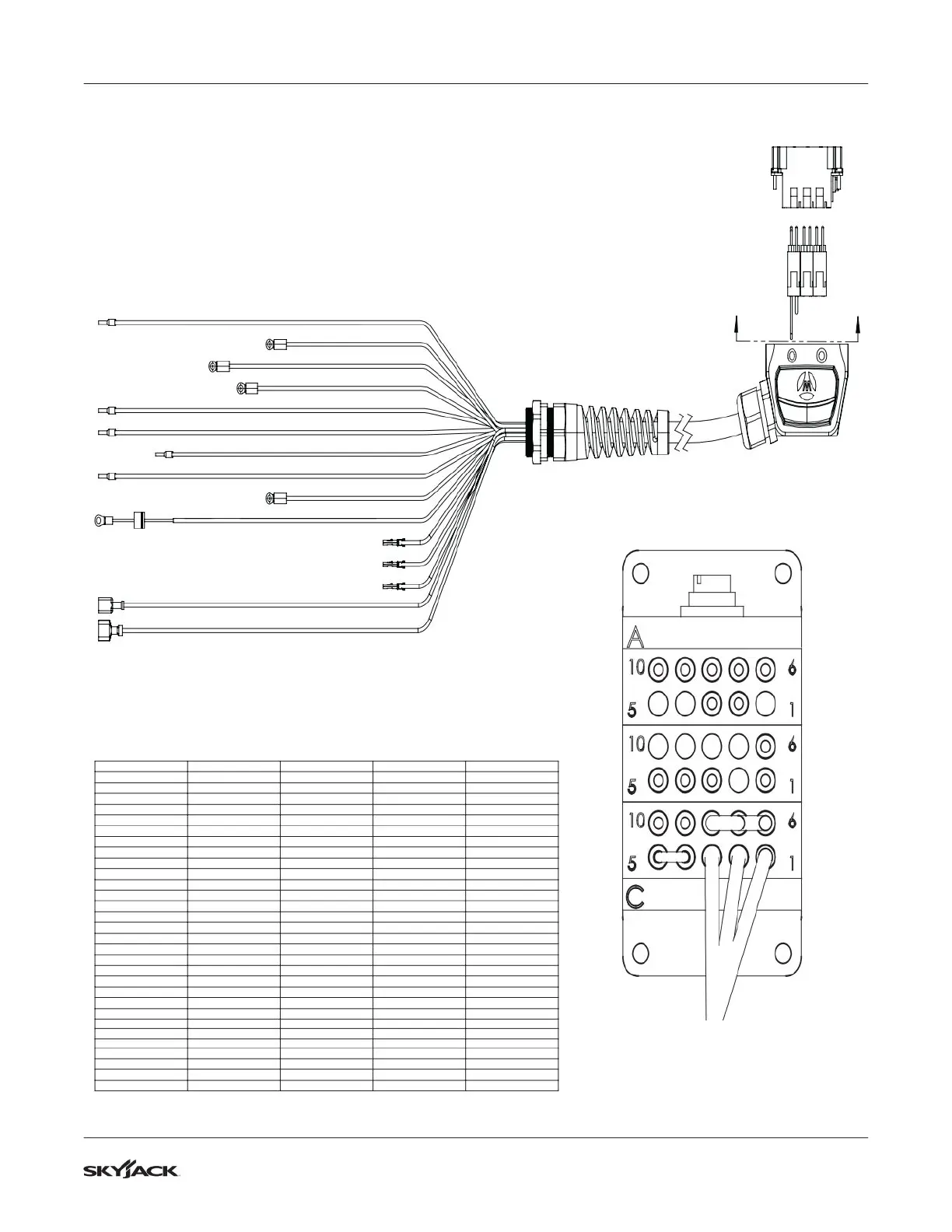

3.11 Platform Control Box Cable
A
A
59-OR/BK-16
23-BK/WH-16
24-BU/BK-16
12A-RD/WH-16
16-WH/BK-16
07A-GN-16
49-GN/WH-16
08-BU/WH-16
07-RD-16
14-BK-16
15-BU-16
02-WH-16
4
6
3X
13-OR-16
19B-RD/BK-16
19B-GN/BK-16
4
CAVITY COLOUR CIRCUIT NO. TERMINATION CUT LENGTH
A10 WHITE/BLACK 16 #6 RING 10
A9 BLUE 15 #6 RING 9
A8 BLACK 14 #6 RING 10
A7 ORANGE 13 #6 RING 11
A6 BLUE/WHITE 08 16GA FERRULE 15
A1 NOT USED
A2 WHITE 02 16GA FERRULE 15
A3 RED 07 16GA FERRULE 15
A4 NOT USED
A5 NOT USED
B10 NOT USED
B9 NOT USED
B8 NOT USED
B7 NOT USED
B6 ORANGE/BLACK 59 FEMALE WIRE PIN 6
B1 RED/WHITE 12A #6 RING W/ DIODE 15
B2 NOT USED
B3 BLACK/WHITE 23 FEMALE WIRE PIN 6
B4 BLUE/BLACK 24 FEMALE WIRE PIN 6
B5 GREEN/WHITE 49 16GA FERRULE 13
C10 GREEN/BLACK 19B MALE SPADE 15
C9 RED/BLACK 19B FEMALE SPADE 15
C8 07B JUMPER
C7 07B JUMPER
C6 07B JUMPER
C1 GREEN (SPLICED) 07A N/A
C2 GREEN (SPLICED) 07A N/A
C3 GREEN 07A 16GA FERRULE 15
C4 19A JUMPER
C5 19A JUMPER
M213344AD
