Skyjack SJ12 Service Manual

A B C D E F G H
V
Z
Y
X
W
61
SJ12, SJ16
213558ADA

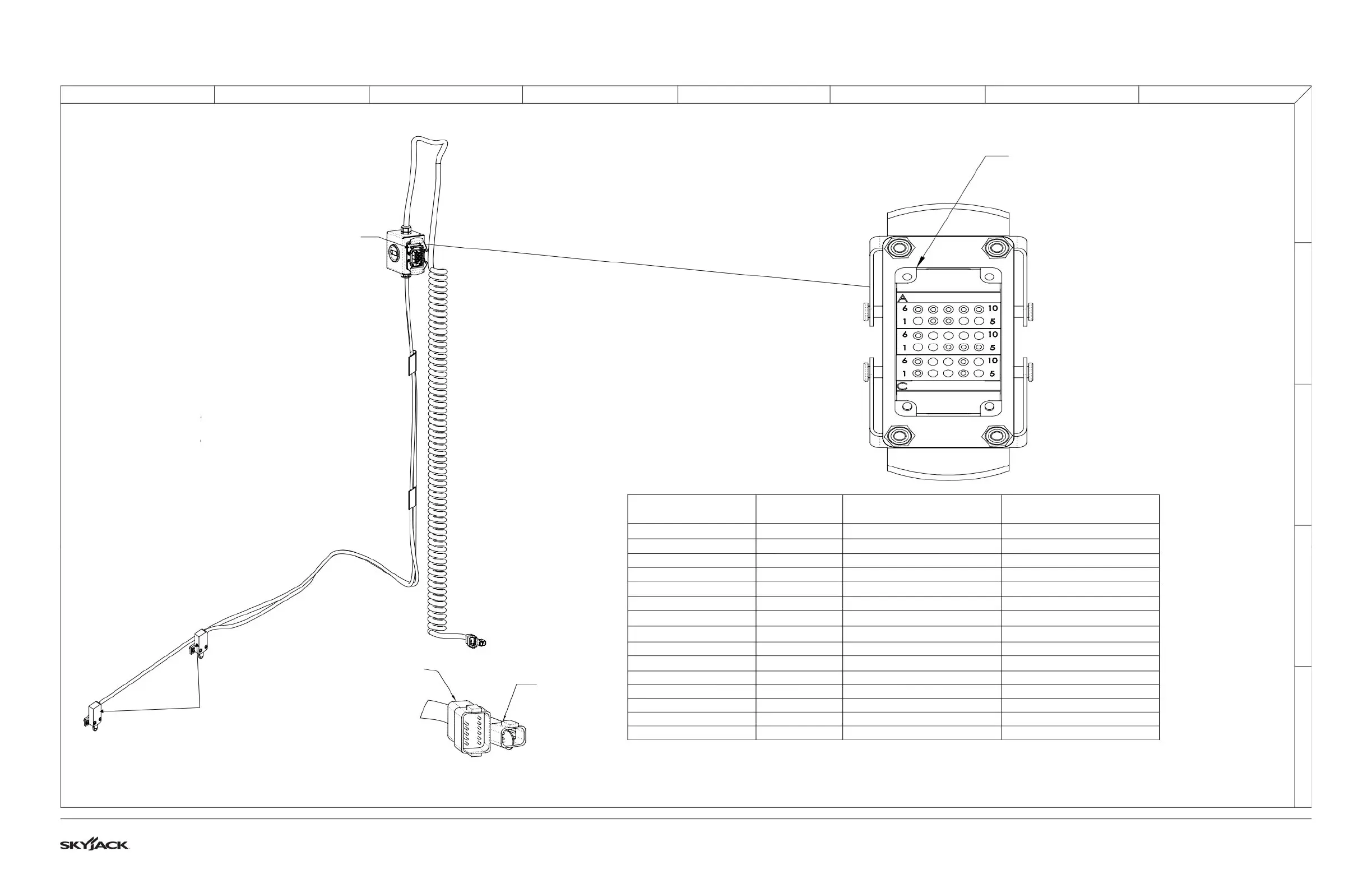

3.21 Mast Control Cable
M212113AC
WIRE NUMBER
TOP OF MAST
CONNECTOR/CAVITY
BOTTOM OF MAST
CONNECTOR/CAVITY
BLACK 14 X1/A8 X2/2
WHITE 02 X1/A2 X3/4
GREEN 7A X1/C1 X3/2
RED 07 X1/A3 X3/1
ORANGE 13 X1/A7 X2/1
BLUE 15 X1/A9 X2/3
WHITE/BLACK 16 X1/A10 X2/4
RED/BLACK 19B X1/C9 X2/6
GREEN/BLACK 7B X1/C6 X2/11
ORANGE/BLACK 59 X1/B6 X2/10
BLUE/BLACK 24 X1/B4 X2/8
BLACK/WHITE 23 X1/B3 X2/7
RED/WHITE 19A X1/C4 X2/5
GREEN/WHITE 49 X1/B5 X2/9
BLUE/WHITE 08 X1/A6 X3/3
CONNECTOR 'X1'
C
B
A
C
B
A
CONNECTOR 'X1'
LIMIT SWITCHES
CONNECTOR 'X2'
CONNECTOR 'X3'
