Skyjack SJ12 Service Manual

88
213558ADA
SJ12, SJ16
Section 5 – Procedures Electrical System Adjustments
5.2-3 Troubleshooting - Diagnostic
Switch
The SJ12 and SJ16 machines are equipped with a
diagnostic switch for the purpose of troubleshooting.
Once the deck is in the service position (deck
fully extended out), the electric signal to the motor
controller enable function is disengaged. All electrical
wiring and components can be checked in the service
position other than the signal to the enable of the
motor controller. To accomplish this you would be
required to engage the diagnostic switch.
Diagnostic Switch

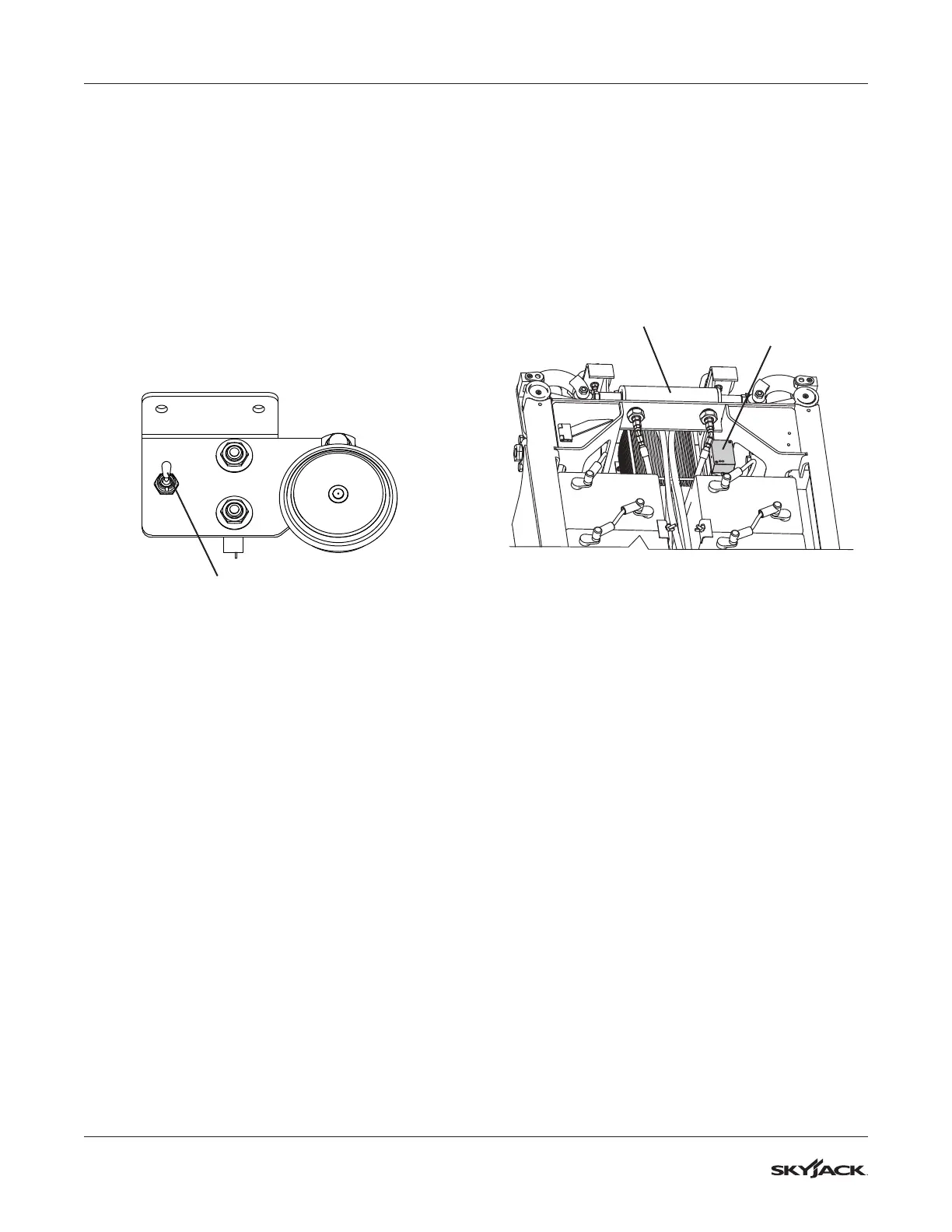

Figure 04 Diagnostic and Horn Assembly
5.2-4 Tilt Switch Orientation
The design of this equipment and the tilt switch
require it to be installed in a specific direction. Below
you will find a picture indicating the direction of TS1
Tilt Switch. As indicated in the picture the tilt switch is
oriented so that the wiring harness as well as the reset
buttons face the center of the machine.
Steer Cylinder
TS1 - Tilt Switch
Figure 05 Tilt Switch Orientation

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
