Skyjack SJ12 Service Manual

47
SJ12, SJ16
213558ADA
Wheel Brake and Port Identifications Section 3 – System Component Identification and Schematics

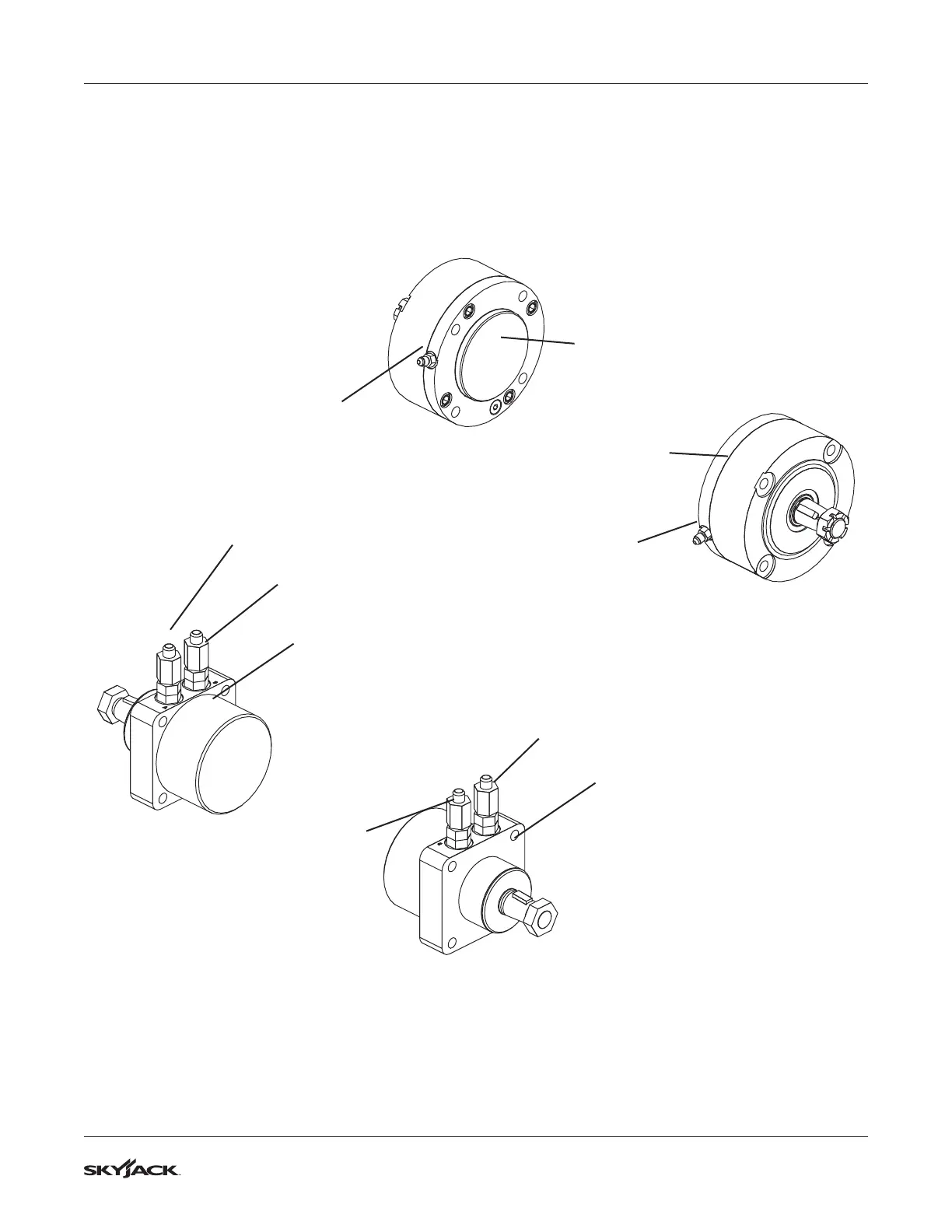

3.7 Wheel Brake and Port Identifications
M149106AA_S3
BH1
Wheel Brake (Right)
M1
Drive Motor (Right)
B
To Main Manifold
B
To Main Manifold
A
To Drive Motor (Left)
A
To Drive Motor (Right)
M2
Drive Motor (Left)
To Brake Manifold
BH2
Wheel Brake (Left)
To Brake Manifold

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
