Skyjack SJ12 Service Manual

44
213558ADA
SJ12, SJ16
Section 3 – System Component Identification and Schematics Electrical Component Parts LIst
3.5 Electrical Component Parts LIst

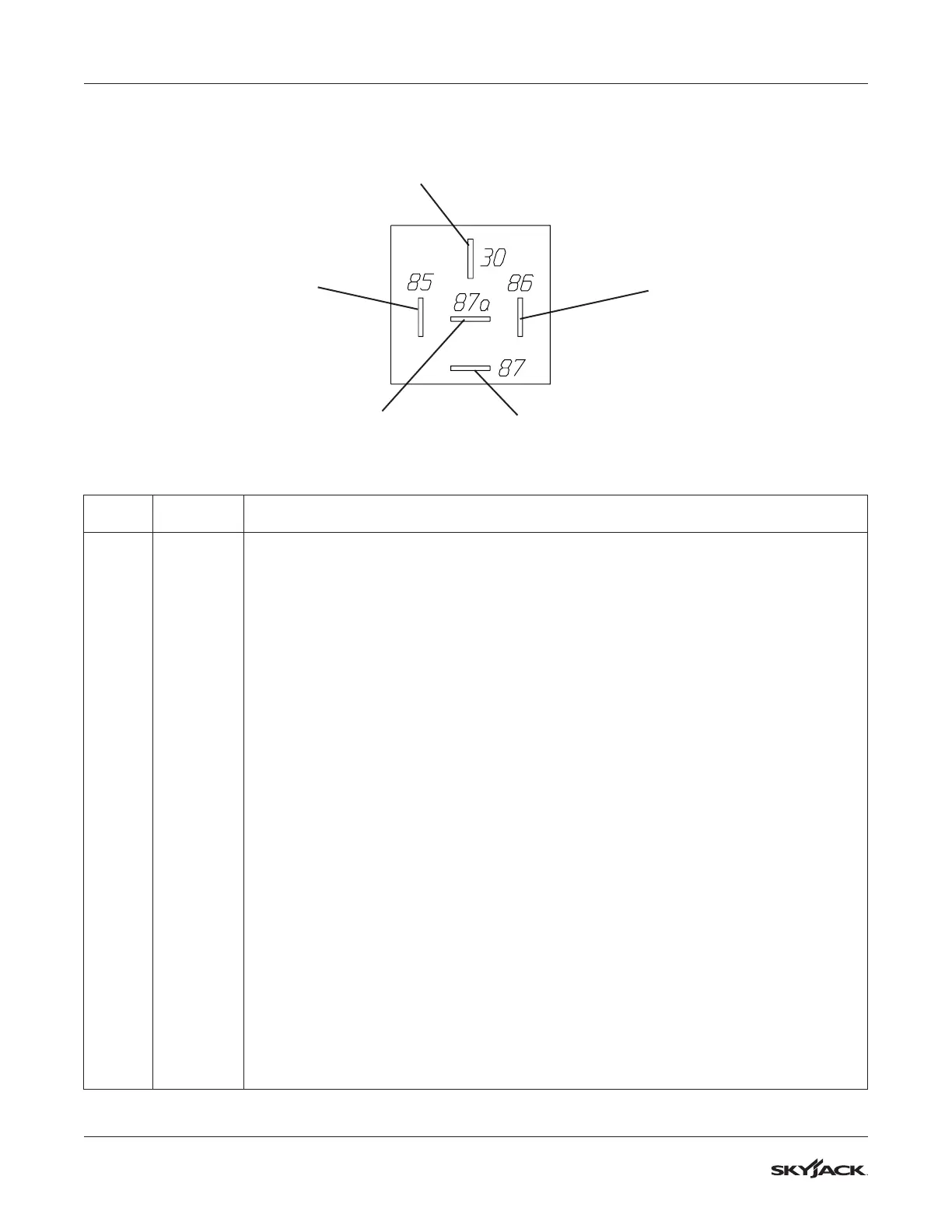

CONTROL (B+)
NORMALLY
CLOSED
CONTACT
SUPPLY (B+) (Common)
GROUND (B-)
NORMALLY
OPEN
CONTACT
Index
No.
Skyjack
Part No.
Description
14CR 108589 RELAY, 24 Volt 40 Amp (Base control centre - Lift speed)
14CR1 108589 RELAY, 24 Volt 40 Amp (Base control centre - Lift speed 2)
15BCR 108589 RELAY, 24 Volt 40 Amp (Base control centre - Reverse cutout)
16BCR 108589 RELAY, 24 Volt 40 Amp (Base control centre - Forward cutout)
17CR 108589 RELAY, 24 Volt 40 Amp (Base control centre - Steer)
21CR 108589 RELAY, 24 Volt 40 Amp (Base control centre - High speed)
28CR 108589 RELAY, 24 Volt 40 Amp (Base control centre - Tilt)
59ACR 108589 RELAY, 24 Volt 40 Amp (Base control centre - Base control)
2H-13 151683 COIL, 24 Volt (Emergency lowering valve)
4H-14A 105610 COIL, 24 Volt (Lift valve)
2H-17 103605 COIL, 24 Volt (Brake valve)
4H-15A 105610 COIL, 24 Volt (Reverse drive valve)
4H-16A 105610 COIL, 24 Volt (Forward drive valve)
4H-23 103605 COIL, 24 Volt (Right steer valve)
4H-24 103605 COIL, 24 Volt (Left steer valve)
B1 103480 BATTERY, 6V
B2 103480 BATTERY, 6V
B3 103480 BATTERY, 6V
B4 103480 BATTERY, 6V
BC1 122093 BATTERY CHARGER INDICATOR (Platform control console)
BP-29 103057 BEEPER, 4-28 VDC Slow pulsing (Base control centre)
BP-49 146649 HORN, 24V (Low tone)
CB1 117325 CIRCUIT BREAKER (15 Amp)
CB2 117325 CIRCUIT BREAKER (15 Amp)
Parts list continued on following page.

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
