Mast Roller Replacement Section 5 – Procedures
5.14-3 Mast Section 3 Installation

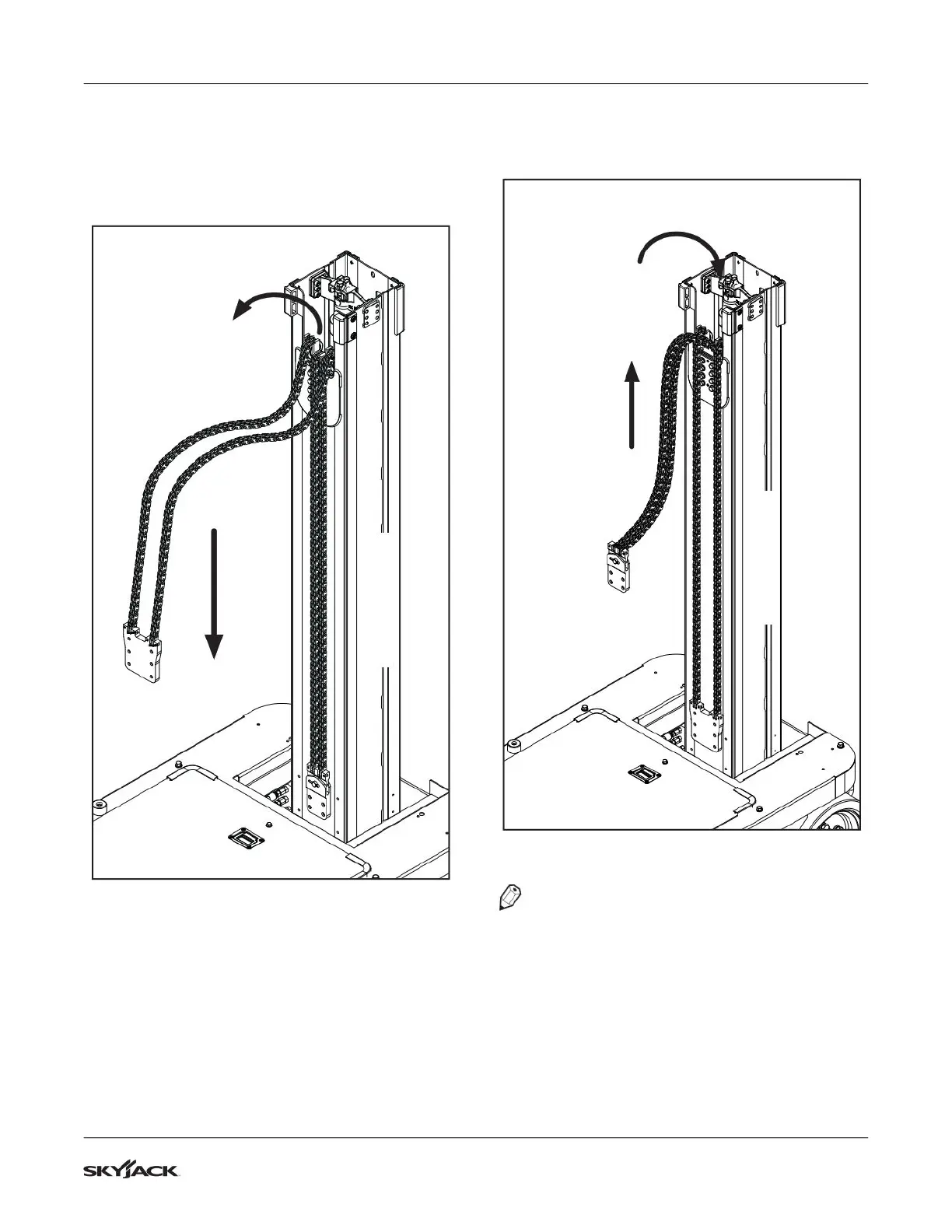

1. Pull the chains attached to mast section 1 out of
the mast column and lay them against the front
of mast section 2.
Section 2
Figure 52 Section 1 to Section 3 Chains
2. Pull the chains attached to mast section 2 up
and over the double rollers so they drop into the
mast column. Make sure they do not tangle.
Section 2
Figure 53 Section 2 Chains
NOTE
It is recommended that 2 lifting straps (or similar)
be attached evenly to mast section 3 for a
straight, even lift.
