Skyjack SJ12 Service Manual

A B C D E F G H
V
Z
Y
X
W
54
SJ12, SJ16
213558ADA

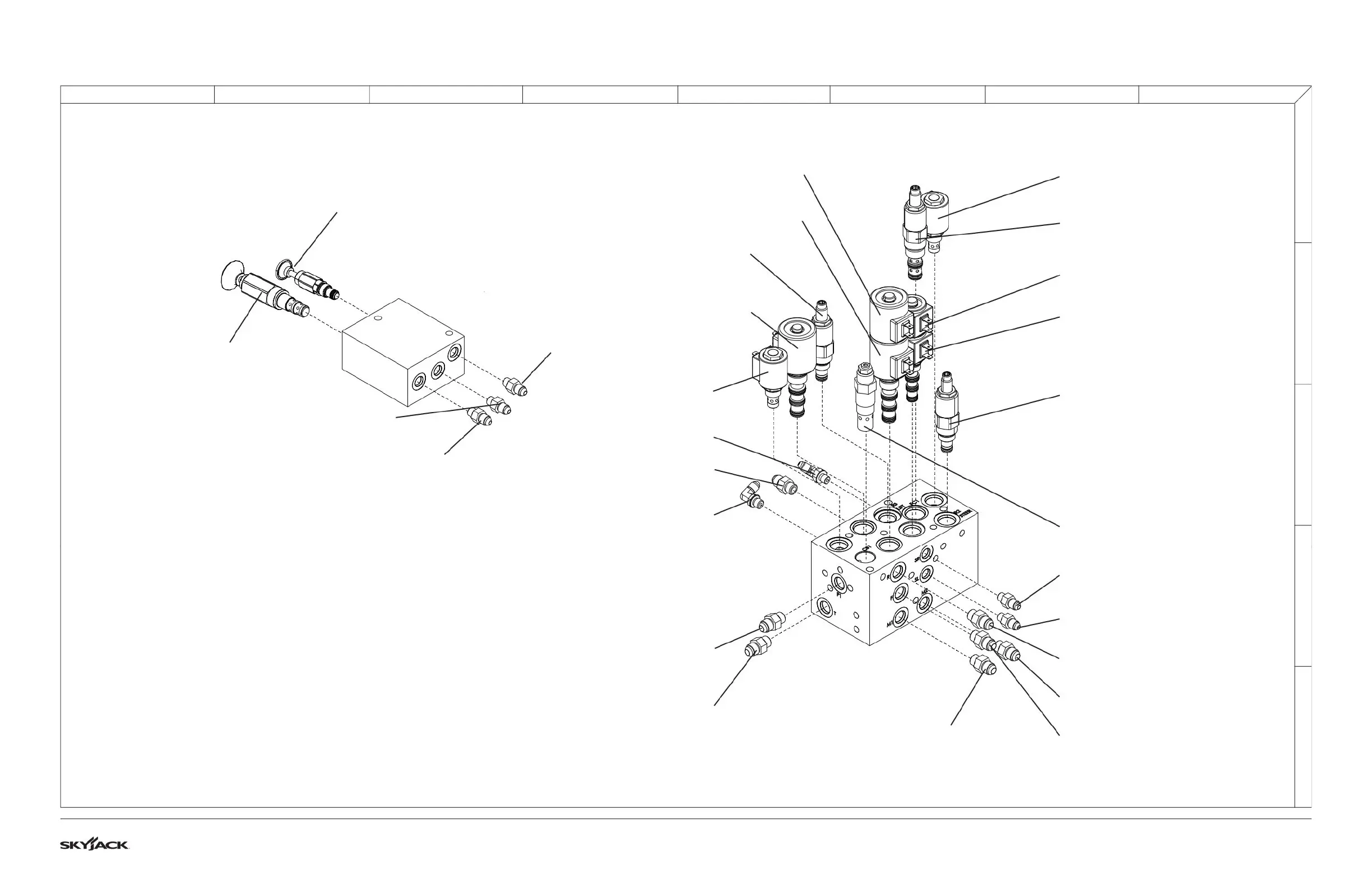

3.14 Brake and Main Manifold and Hydraulic Identifications
M158154AB_4
B1
To Right Brake
B2
To Left Brake
MB3
Brake Manifold
V1
Auto Reset Valve
HP1
Hand Pump
SR
To Steer Cylinder
SL
To Steer Cylinder
R
To Right Drive Motor
M2
To Right Drive Motor
F
To Left Drive Motor
M1
To Left Drive Motor
T
To Powerpack Manifold
P1
To Powerpack Manifold
PH
To Pothole Cylinder
B
To Brake Manifold
L
To Lift Cylinder
2H-17
Brake Valve
FC1
Priority Steer Valve
4H-23
Right Steer Valve
4H-24
Left Steer Valve
R2
Steering Relief Valve
4H-15A
Reverse Drive Valve
4H-16A
Forward Drive Valve
R3
Lift Relief valve
4H-14A
Lift Valve
2H-21
Pothole Valve
To Main Manifold
CB1
Counterbalance Valve
MB2
Main Manifold

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
