SJ12, SJ16
213558ADA
Mast Chain Visual Inspection Section 5 – Procedures
4. Pull the chains attached to mast section 1 up
and over the double rollers so they drop into the
mast column. Make sure they do not tangle.
Section 2

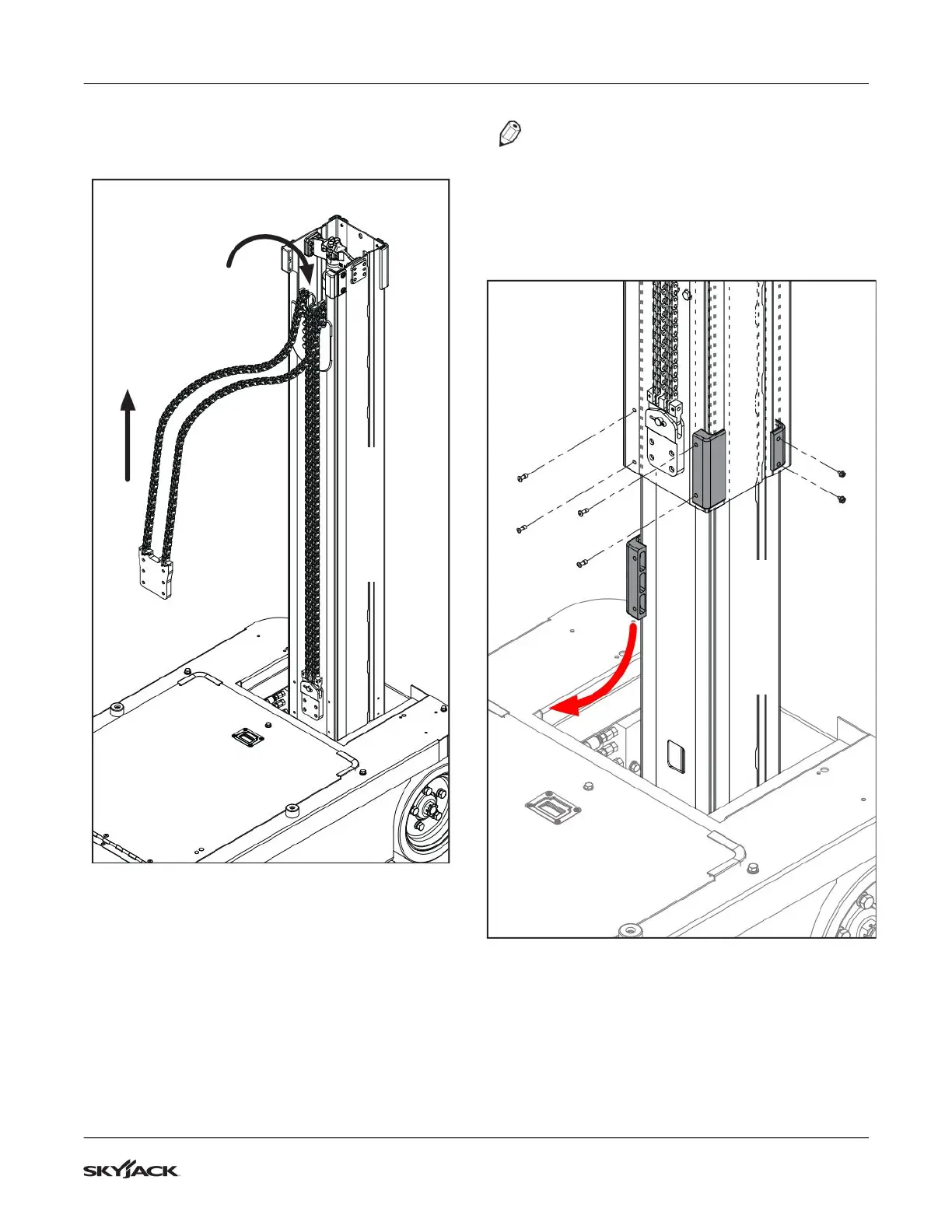

Figure 35 Section 1 to Section 3 Chains
NOTE
It is recommended that 2 lifting straps (or similar)
be attached evenly to mast section 2 for a
straight, even lift.
5. Lift the mast section up to a comfortable working
height and remove the lower wear pads. Mark
the location of each wear pad.
Section 1
Figure 36 Wear Pads Removal (Section 2)

Skyjack SJ12 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Machine Width	32 in (0.81 m)
Stowed Height	6.5 ft
Overall Width	32 in (0.81 m)
Stowed Height (Rails Folded)	6.5 ft
Drive Speed (Elevated)	0.5 mph (0.8 km/h)
Power Source	Electric
