Skyjack SJ12 Service Manual

22
213558ADA
SJ12, SJ16

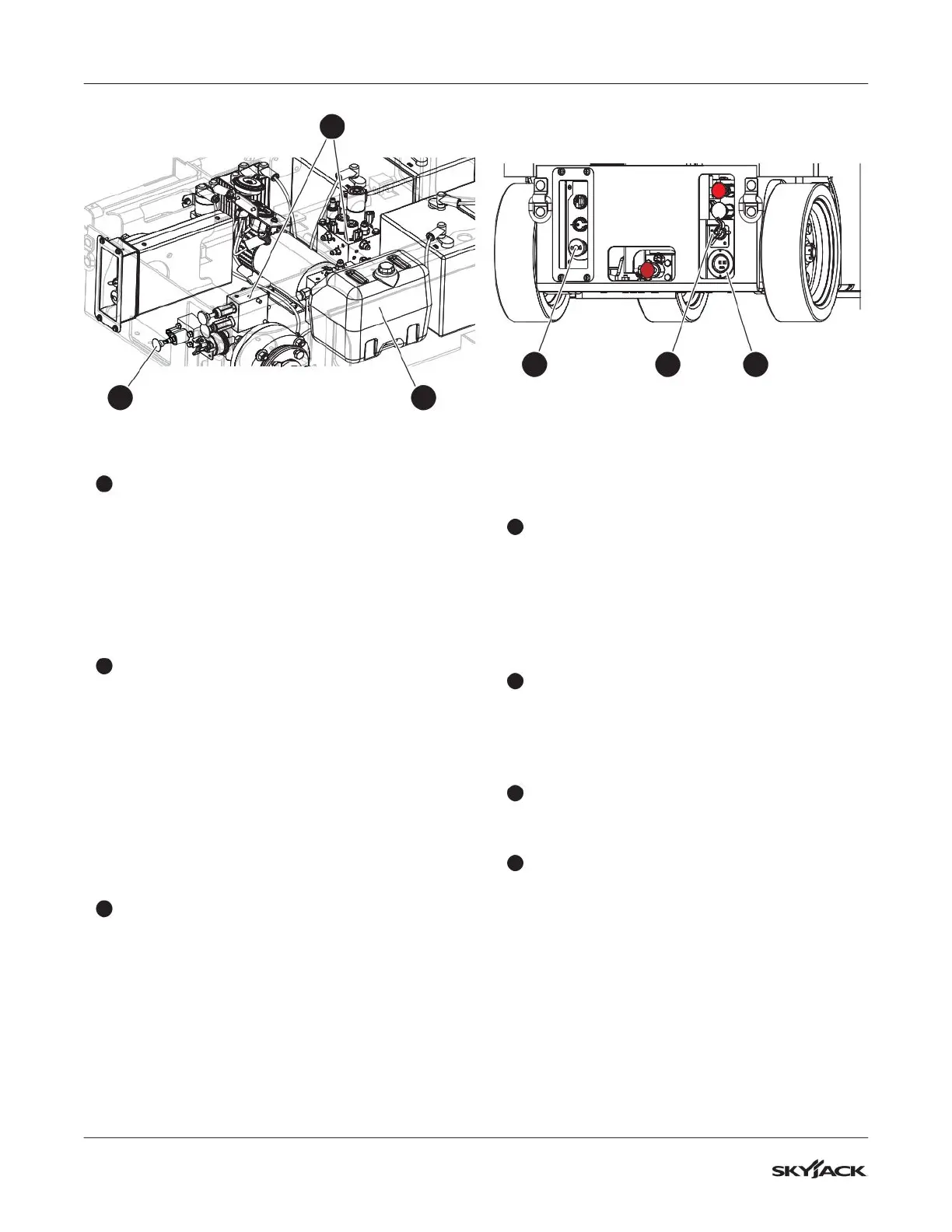

Section 1 – Scheduled Maintenance Base inspections
9
Hydraulic tank (B)
▪
Make sure the hydraulic filler cap closes tightly.
▪
Make sure there is no visible damage or
hydraulic leaks.
▪
Hydraulic pump and motor (B)
▪
Make sure there are no loose or missing
fasteners.
▪
Make sure there is no visible damage.
10
Hydraulic oil level (B, C)
▪
B - Frequent/periodic/pre-delivery Inspection
▪
Make sure the platform is fully lowered.
▪
Do a check on the gauge on the side of the
hydraulic oil tank. The hydraulic oil level must
be at or a small distance above the top mark
of the gauge.
▪
C - Annual Inspection
▪
Do a check on the hydraulic oil and filters
▪
Replace the hydraulic oil and filters if
necessary.
11
Electrical components (B)
▪
Do a check on these areas for chafed, corroded,
and loose wires:
▪
Base to platform cables and wiring harness
▪
Hydraulic and electrical compartment wiring
harnesses.
▪
Motor controller (B)
▪
Make sure the motor controller has no damage
and is correctly attached.
▪
Make sure there are no loose wires or missing
fasteners.
12
Manifolds (B)
▪
Make sure all fittings and hoses are correctly
tightened.
▪
Make sure there is no indication of hydraulic
leakage.
▪
Make sure there are no loose wires or missing
fasteners.
13
Main Power Disconnect Switch (B)
▪
Turn main power disconnect switch to off
position.
▪
Make sure all cables are secure and switch is in
proper working condition.
14
Base Controls (B)
▪
Make sure there are no signs of visible damage
and all switches operate correctly.
15
AC power socket (B)
▪
Make sure there is no visible damage.
12
1314
12
15
9
