Manual Storage Box Section 3 – Familiarization
3.2 Manual Storage Box
This weather-resistant box is mounted under the
control console on the platform. It contains the
operating manual and other important documents.
The operating manual for this make and model of
MEWP must remain with the MEWP and should be
stored in this box.

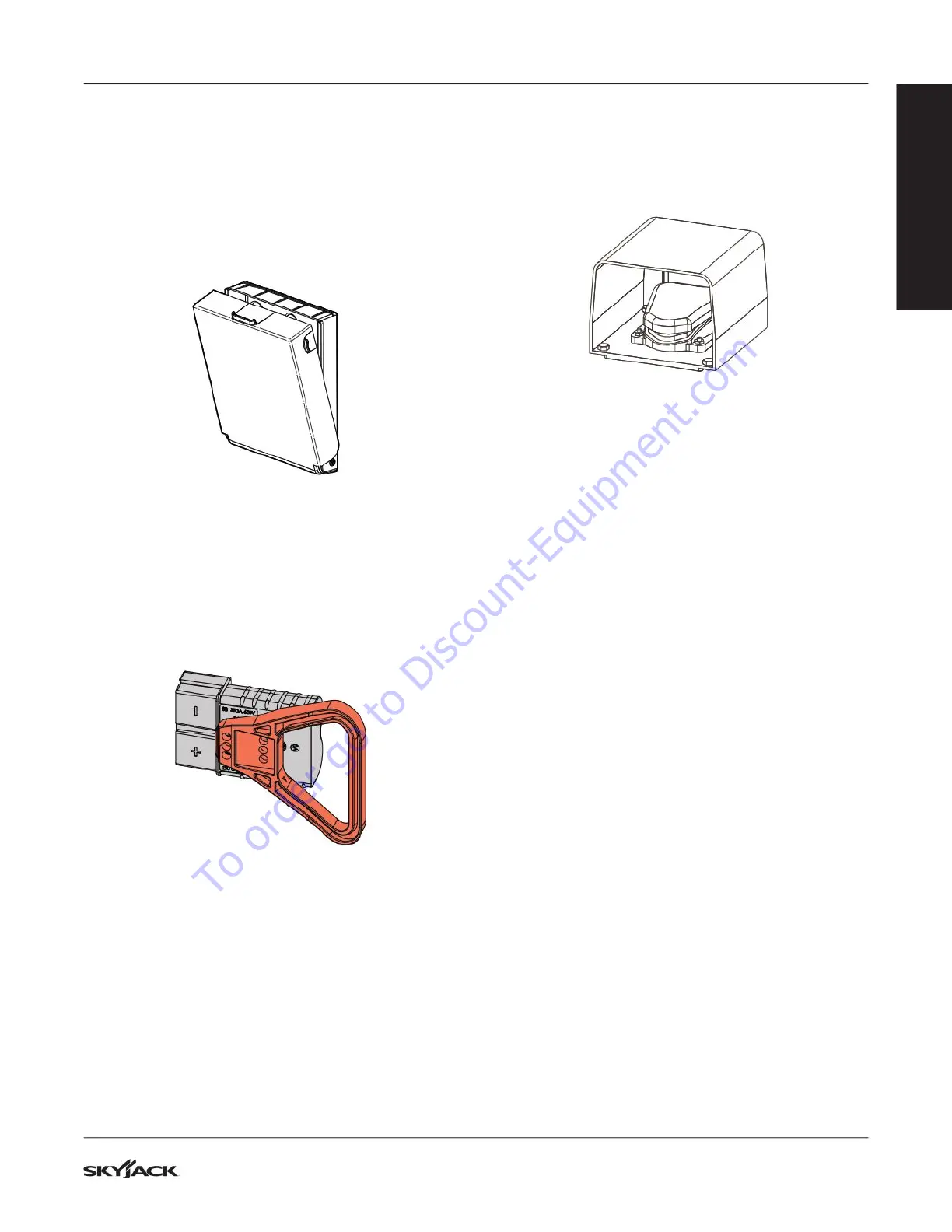

Figure 04 Manual storage box
3.3 Control Functions
3.3-1 Main power connectors
The two connectors are located on both the left and
right sides of the MEWP.
Figure 05 Main power connector
Main power connector - This connector, when
disconnected and locked out, disconnects power
to all circuits. Connector must be plugged in to
base to operate any circuit. Disconnect and lock
out when transporting MEWP.
3.3-2 Footswitch
The footswitch is located on the oor of the platform.
When depressed and held, it enables controls on
platform control console.
Figure 06 Footswitch
NOTE
The footswitch is equipped with a 7-second anti-
tiedown feature that deactivates footswitch when
operator depresses it for 7 seconds without
activating any function.
