Manual Storage Box Section 3 – Familiarization
3.3-4 Platform control console
This control console is mounted at front
guardrail of the platform. It has the following controls:
1
Work light switch (if equipped) - This switch
turns on work light.
2
Emergency power unit - This switch enables
emergency power unit.
7
3
Horn pushbutton - This pushbutton sounds an
automotive-type horn.
4
Footswitch indicator light - This light
illuminates when footswitch is depressed. A
7-second anti-tiedown feature deactivates
footswitch when operator depresses it for 7
seconds without activating any function.
5
Chassis tilt indicator light- This light
illuminates when the MEWP chassis is at an
inclination that activates the tilt sensor.
WARNING
When tilt settings are exceeded, causing the alarm
to sound and the light to illuminate, the platform
should be lowered and retracted immediately.
Refer to Section 6.2 for instructions on how to
recover from an inclined position.
NOTE
• If the MEWP becomes tilted while elevated,
causing the alarm to sound and the light to
illuminate, drive functions will be disabled.
• If the MEWP is tilted while in the lowered
travel position, movement of the fly boom
extend, riser up, or main boom into the
elevated position will be stopped at the limits
of the lowered travel position. The alarm will
sound and the light will illuminate. Further
fly boom extension, riser up, or main boom
rising will be disabled.
• Resetting power to the controls (e.g. e-stop
depressed then pulled out) when the MEWP
is tilted and at the limits of the lowered
travel position will cause the MEWP to be
considered tilted while elevated.
6
Overload light - This red light indicates overload
status. Refer to Section 3.4-7.
7
Battery level indicator light - This light
illuminates when the battery level is low and the
batteries require charging. Refer to Section 6.5
for instructions on how to charge the batteries.
TM
1
2
3

4
9
1 2 3 4 5 6 7 8
101112131415161718

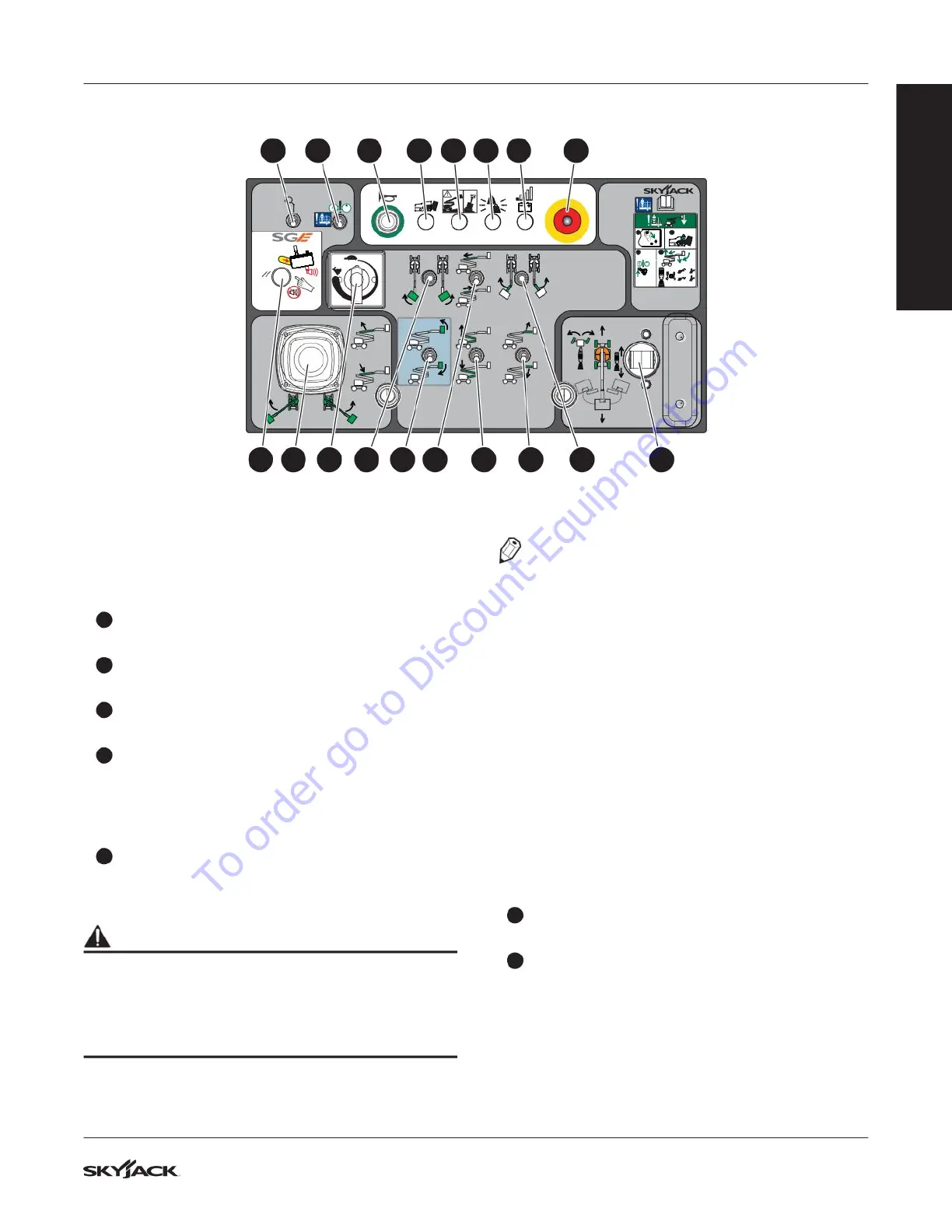

Figure 08 Platform control console
