Section 6 – Additional Procedures Chassis Tilt Recovery
6.3-1 Releasing brakes manually
Brakes must be manually disengaged for winching or
towing.
WARNING
Do not manually disengage brakes if MEWP is on
a slope.
1. Ensure MEWP is on level ground. Chock or
block wheels to keep MEWP from rolling.
2. On either the left or right side of the MEWP,
disconnect and lock out main power connector.
CAUTION
Do not use hydraulic power with brake
disengaged.
3. Locate disengage cap (Figure 22 - item 1).
a. Using a 11mm (7/16”) wrench, remove bolts.
b. Remove disengage cap and rotate to inward
position (refer to Figure 23).
c. Insert disengage cap and fasten bolts, using a
11mm (7/16”) wrench. Brake is now released.
NOTE
Ensure o-ring remains seated.
1

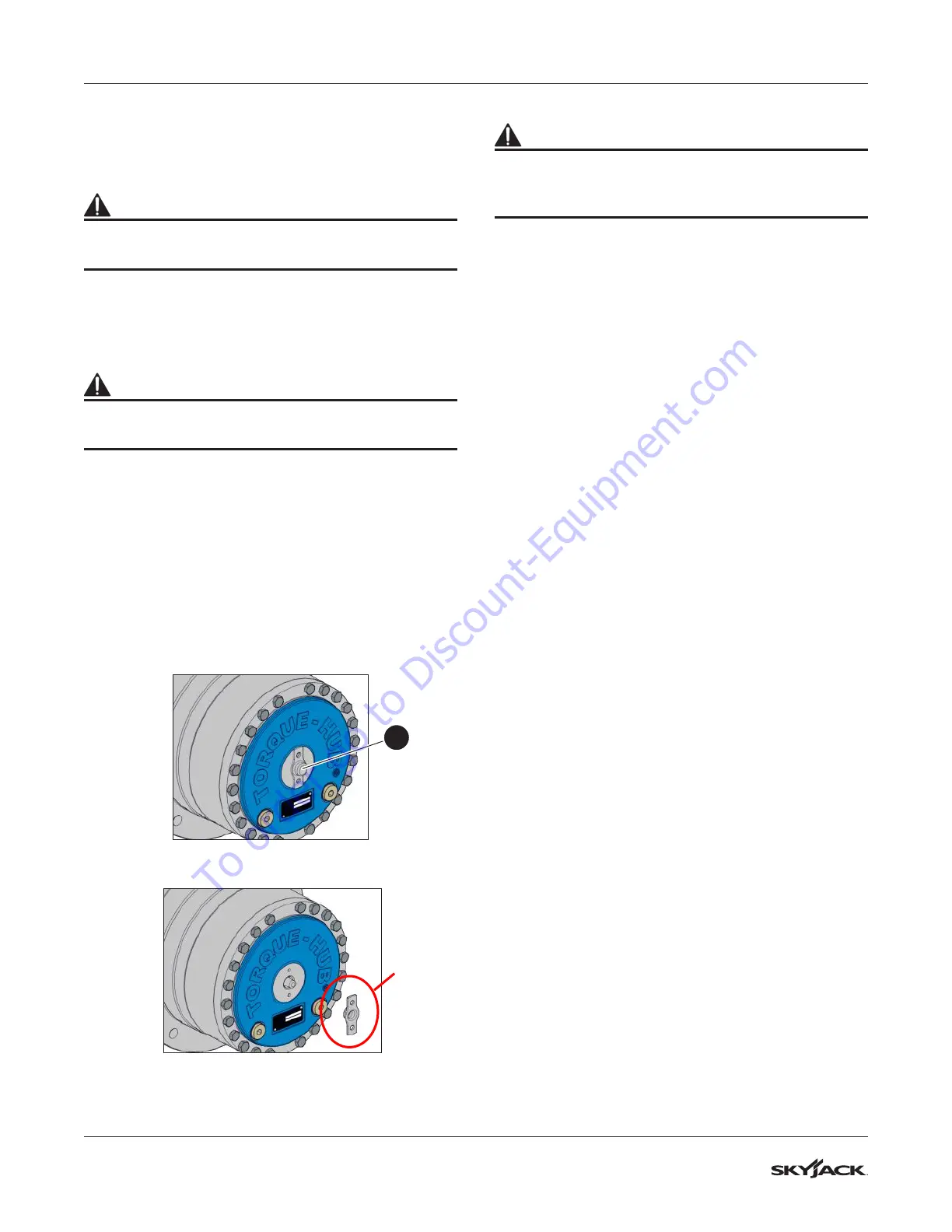

Figure 22 Disengage cap
Inward
position
Figure 23 Disengage cap - inward position
WARNING
Brakes must be applied immediately after reaching
desired location. Refer to Section 6.3 on how to
re-engage brakes.
