SJ30 AJE SJ30 ARJE 213213AAA
Winching and Towing Procedure Section 6 – Additional Procedures
6.3 Winching and Towing
Procedure
This section provides the operator with the winching
and towing procedure, which includes instructions on
how to manually release the brakes.
WARNING
Ensure boom is in stowed position before
winching or towing. Sudden motion could cause
MEWP to become unstable. Death or serious injury
could occur.
WARNING
In emergency situations where MEWP functions
are not available and lowering is impeded by an
obstacle, utmost care must be taken to move
MEWP far enough to clear obstacle. In such cases,
operation must be extremely smooth with no
sudden movements and must not exceed a speed
of 50 mm/sec (2 in/sec).
WARNING
When winching or towing, do not exceed 3.2 km/h
(2 mph).
WARNING
Do not winch or tow MEWP on grade steeper than
35%.
WARNING
Do not winch or tow MEWP onto a slope, or brake
the towing vehicle rapidly. Do not pull MEWP down
an incline towards a winch.
1. Before winching or towing MEWP, fully retract,
lower and position boom over rear drive wheels
in line with direction of travel.
2. Manually release brakes (refer to Section 6.3-1).
3. Remove wheel chocks or blocks, and then
winch or tow MEWP to desired location.
4. Position MEWP on a rm and level surface.
5. Chock or block wheels to prevent MEWP from
rolling.
6. Locate disengage cap (Figure 20 - item 1).
a. Using a 11mm (7/16”) wrench, remove bolts.
b. Remove disengage cap and rotate to outward
position (refer to Figure 21).
c. Reattach disengage cap and fasten bolts,
using a 11mm (7/16”) wrench. Brake is now
re-engaged.
NOTE
Ensure o-ring remains seated.
1

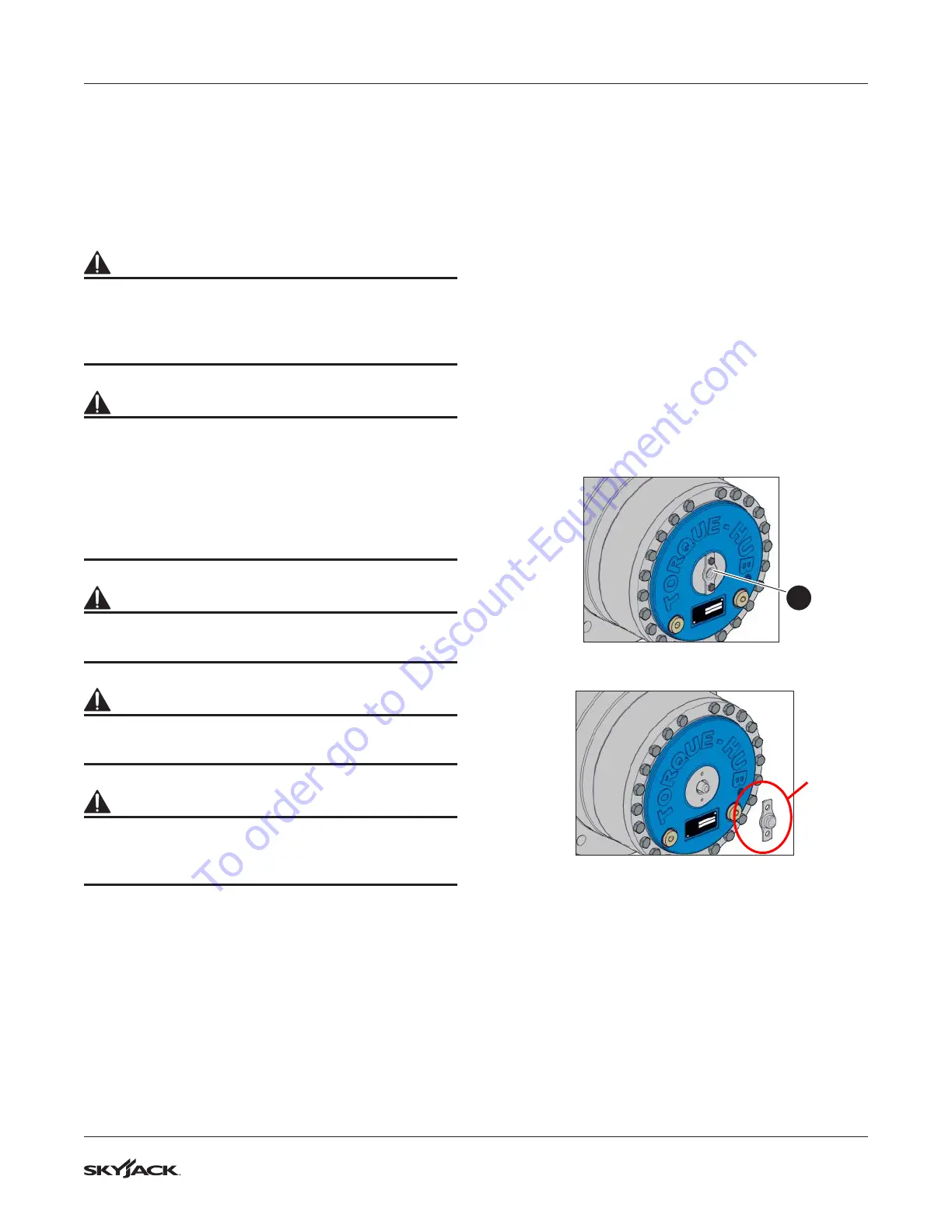

Figure 20 Disengage cap
Outward
position
Figure 21 Disengage cap - outward position
