Optional Equipment and Attachments Section 3 – Familiarization
3.5-3 1000W/120V AC inverter (if
equipped)
The inverter is located on the base of the MEWP. It has
the following controls:
High temperature
Overload
Low battery
Inverter power
External power
Charge voltage
adjustment
Inverter
On
Off
Output
breaker
4
2
1
3

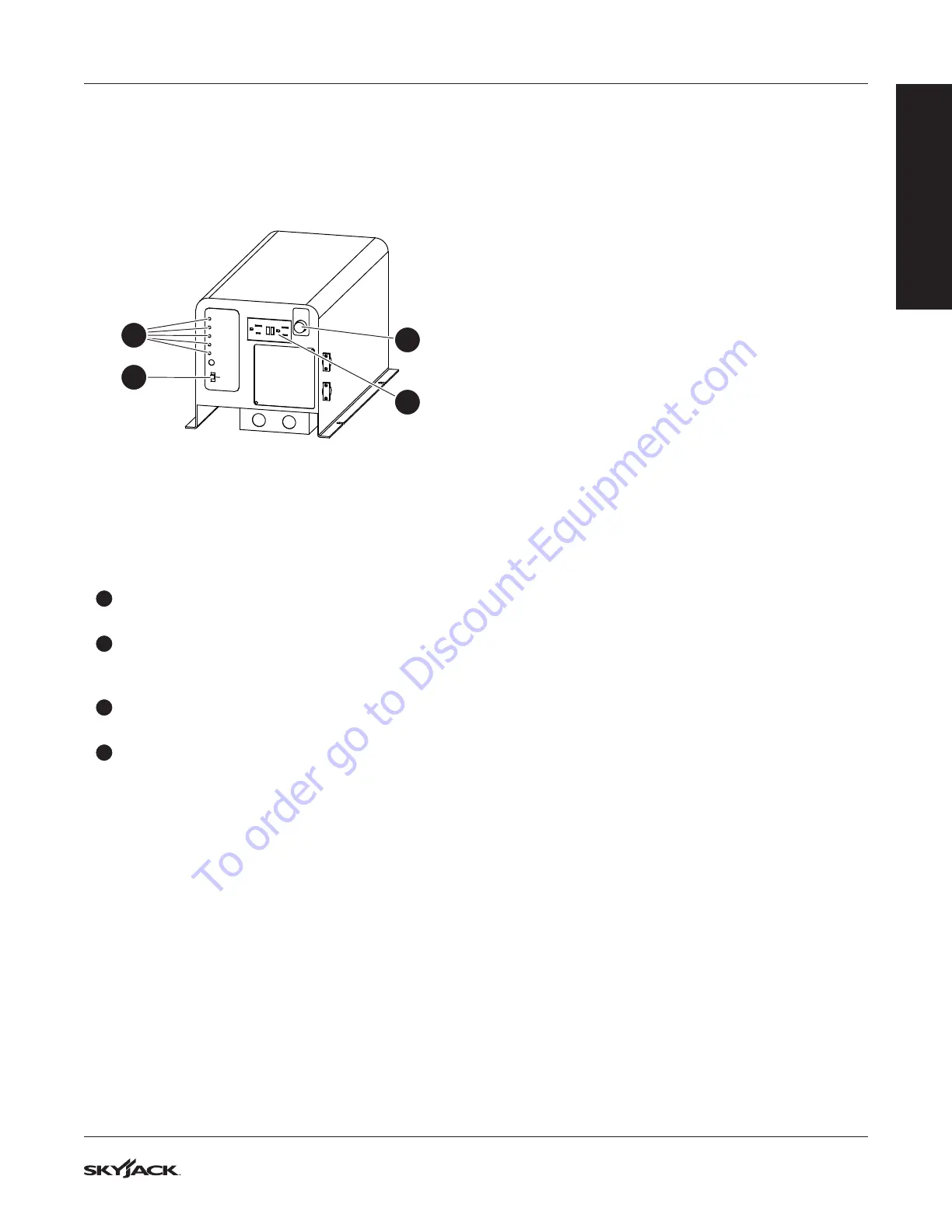

Figure 16 1000W/120V AC inverter
NOTE
The inverter operation is automatic. These
controls do not need to be manipulated for
normal operation.
7
1
Status LEDs - These LEDs indicate the operating
or fault status of the inverter.
7
2
On/off switch - This diagnostic slide switch
activates or terminates inverter operation. It
should remain in on position.
7
3
GFCI outlet - During inverter operation, this
outlet provides AC power.
7
4
15 Amp circuit breaker - In the event of a power
overload or circuit grounding, the circuit breaker
pops out. Press the breaker back in to reset.
FAMILIARIZATION
