SJ30 AJE SJ30 ARJE213213AAA
Section 3 – Familiarization Manual Storage Box
3.3-3 Base control console
This control console is located in the panel mounted
in the control compartment. It has the following
controls:
1
Function enable switch - This momentary
switch, when held in function enable position,
allows base control functions to operate.
2
Circuit breakers - In the event of a power
overload or positive circuit grounding, the circuit
breaker pops out. Push breaker back in to reset.
3
Hourmeter - The display shows accumulated
operating time, battery level and error codes.
Refer to service manual for error codes.
4
Emergency power switch - This switch, when
held in emergency power position, allows base
control functions to operate using emergency
power unit.
5
Emergency stop button - This red “mushroom-
head” pushbutton disconnects power to control
circuit.
7
6
Base/off/platform key switch - This three-way
selector switch allows operator to activate base
control console, turn off power to MEWP, or
activate platform control console.
7
7
Jib rotation switch (if equipped) - This switch
controls left or right rotation of jib.
7
8
Jib up/down switch - This switch controls up or
down movement of jib.
9
Boom extend/retract switch - This switch
controls extension or retraction of y boom.
7
10
Riser raise/lower switch - This switch controls
raising or lowering of riser.
7
11
Platform rotation switch - This switch controls
left or right rotation of platform.
7
12
Platform leveling override switch - This switch
overrides automatic leveling of platform and
controls tilting up or tilting down of platform.
7
13
Turret rotation switch - This switch controls left
or right rotation of turret.
7
14
Boom raise/lower switch - This switch controls
raising or lowering of main boom.
7
15
Overload light - This red light indicates overload
status. Refer to Section 3.4-7.
TM
1
2
3
4
5
9
6
7
8
101211
15
14
13

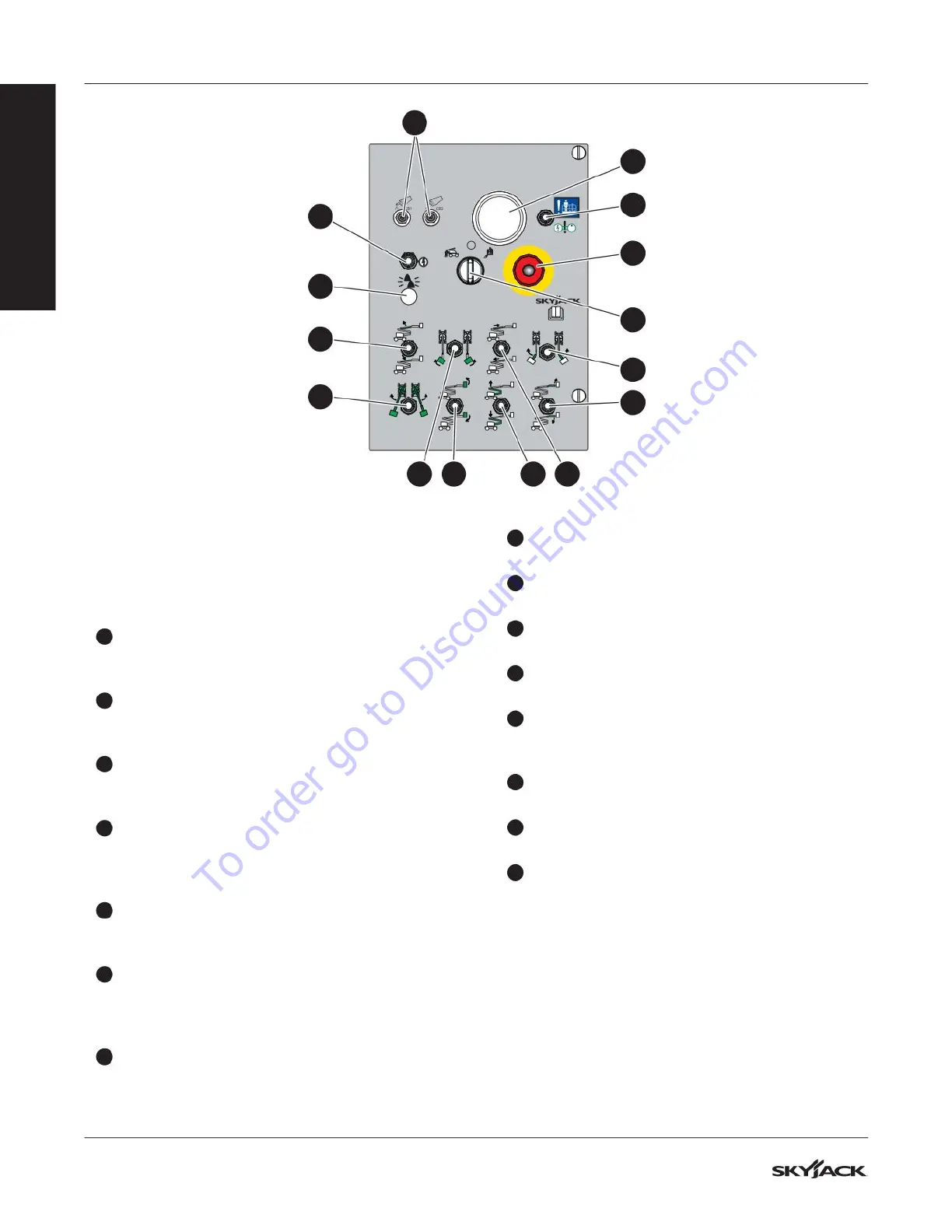

Figure 07 Base control console
FAMILIARIZATION
