Skyjack SJ30 AJE User Manual

26
SJ30 AJE SJ30 ARJE213213AAA
Section 3 – Familiarization Manual Storage Box
8
Emergency stop button/Operation light - This
button, when depressed, disconnects power to
the control circuit. The operation light indicates
upper control availability. It glows when both
emergency stop buttons on the platform control
console and the base control console are pulled
out.
9
9
Drive/Steer controller - This single-axis lever
controls driving forward or backward. The rocker
switch controls steering left or right. Internal
springs return the lever to neutral when released.
CAUTION
The forward direction of travel will be in the
general direction the counterweight is facing while
reverse will be the opposite. Care should be taken
to conrm the counterweight orientation prior to
activating any drive/steer functions.
7
10
Jib rotation switch (if equipped) - This switch
controls left or right rotation of jib.
7
11
Jib up/down switch - This switch controls up or
down movement of jib.
7
12
Riser raise/lower switch - This switch controls
raising or lowering of riser.
7
13
Boom extend/retract switch - This switch
controls extension or retraction of y boom.
7
14
Platform leveling override switch - This switch
overrides automatic leveling of platform and
controls tilting up or tilting down of platform.
7
15
Platform rotation switch - This switch controls
left or right rotation of platform.
7
16
Function speed adjuster dial - This variable
speed adjuster controls speed of y boom
extension/retraction, jib raising/lowering and
platform rotation movements. This is used with
switches 10, 11, 12, 13, 14 and 15.
7
17
Boom/Turret controller - This dual-axis lever
controls raising or lowering of main boom or
rotating left or right of turret.
7
18
Secondary guarding electrical (SGE) reset
button - This button, when depressed, shuts off
the audible/visual alarm from the SGE.
TM
1
2
3
4
9
1 2 3 4 5 6 7 8
101112131415161718

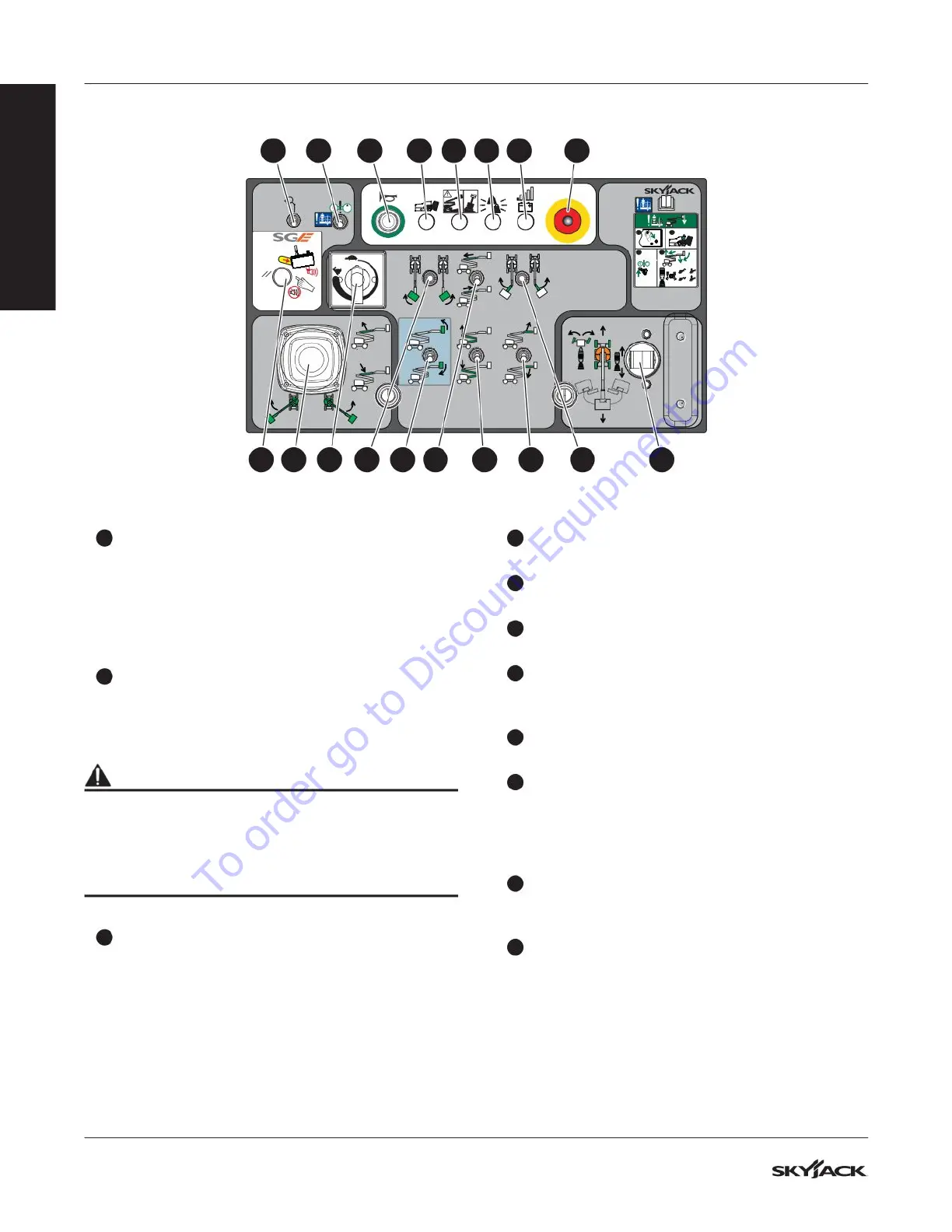

Figure 08 Platform control console
FAMILIARIZATION
