Technical Diagrams Section 7 – Technical Drawings and Specications
Technical Diagrams Continued
10.87 m
[35 ft 8 in]
9.04 m
[29 ft 8 in]
3.99 m
[13 ft 1 in]
1.98 m
[6 ft 6 in]
0.5 m
[1.8 in]
0.10 m
[4 in]
1.65 m
[5 ft 5 in]
3.99 m
[13 ft 1 in]
0.04 m
[1.6 in]
5.54 m
[18 ft 2 in]
2.34 m
[7 ft 8 in]
1.24 m
[4 ft 1 in]
2.51 m
[8 ft 3 in]
1.37 m
[4 ft 6 in]
1.12 m
[3 ft 8 in]
0.38 m
[1 ft 3 in]
75°
78°
66°
5°

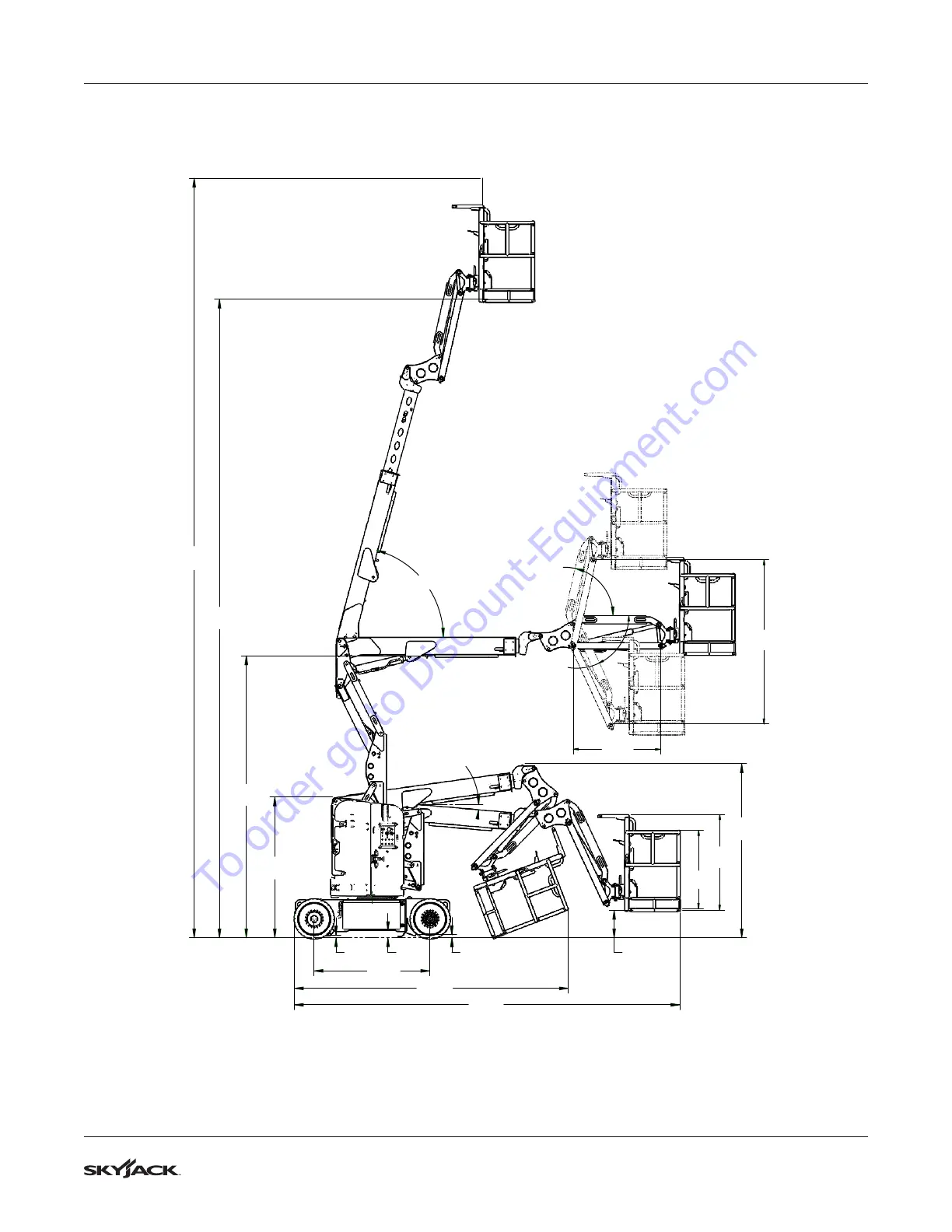

Figure 30 Dimensions - SJ30 AJE
