SJ30 AJE SJ30 ARJE 213213AAA

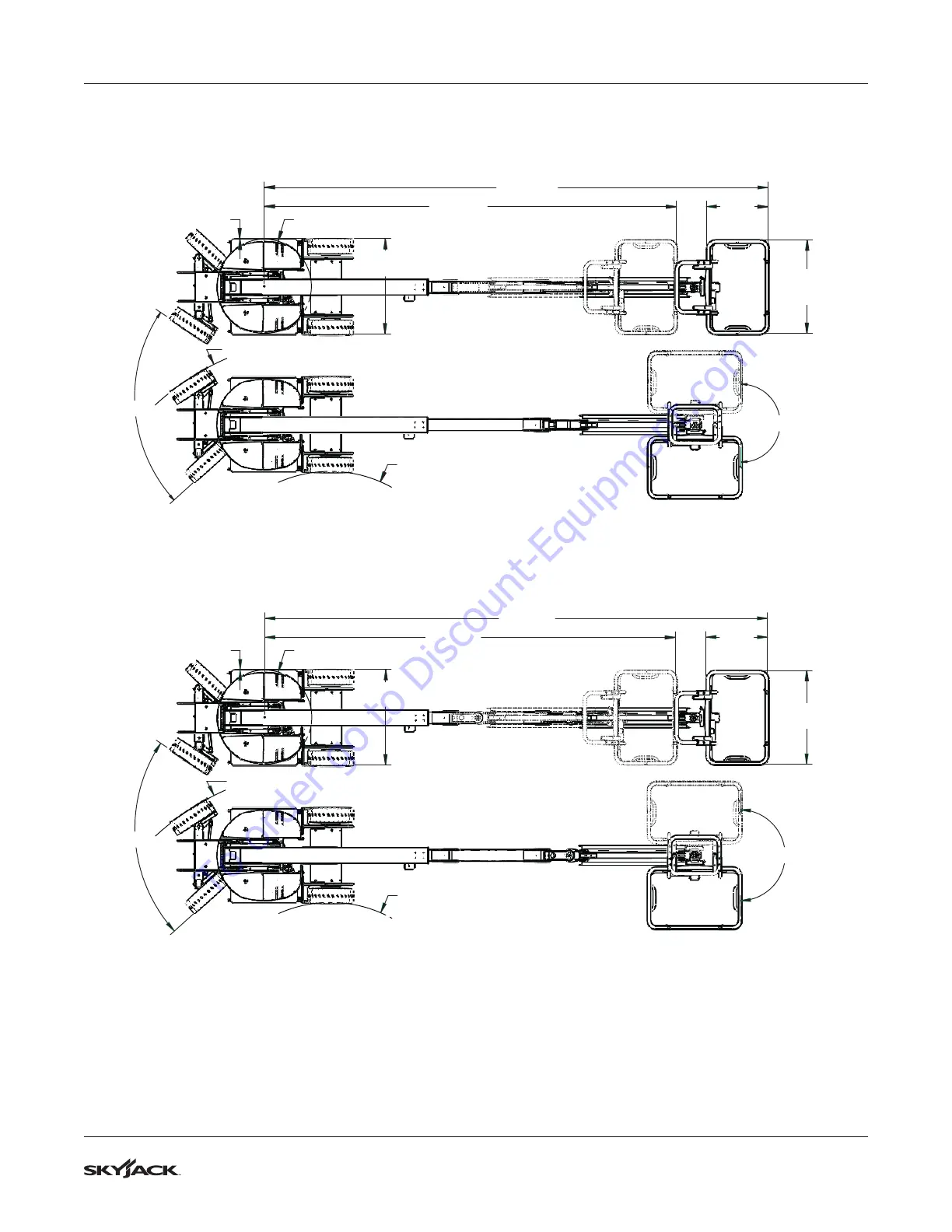

Technical Diagrams Section 7 – Technical Drawings and Specications
Technical Diagrams Continued
6.27 m
[20 ft 7 in]
180°
5.11 m
[16 ft 9 in]
352°
0 m
[0 in]
1.19 m
[3 ft 11 in]
1.55 m/ 1.65 m
[61 in - 65 in]
1.17 m
[46 in]
0.76 m
[30 in]
3.20 m/ 3.32 m
[126 in - 131 in]
76°
Figure 32 Dimensions - SJ30 AJE
6.27 m
[20 ft 7 in]
5.11 m
[16 ft 9 in]
5.11 m
[16 ft 9 in]
1.55 m/ 1.65 m
[61 in - 65 in]
180°
3.20 m/ 3.33 m
[126 in - 131 in]
352°
76°
0 m
[0 in]
1.19 m
[3 ft 11 in]
1.17 m
[46 in]
0.76 m
[30 in]
Figure 33 Dimensions - SJ30 ARJE
