102
SJ30 AJE SJ30 ARJE213213AAA

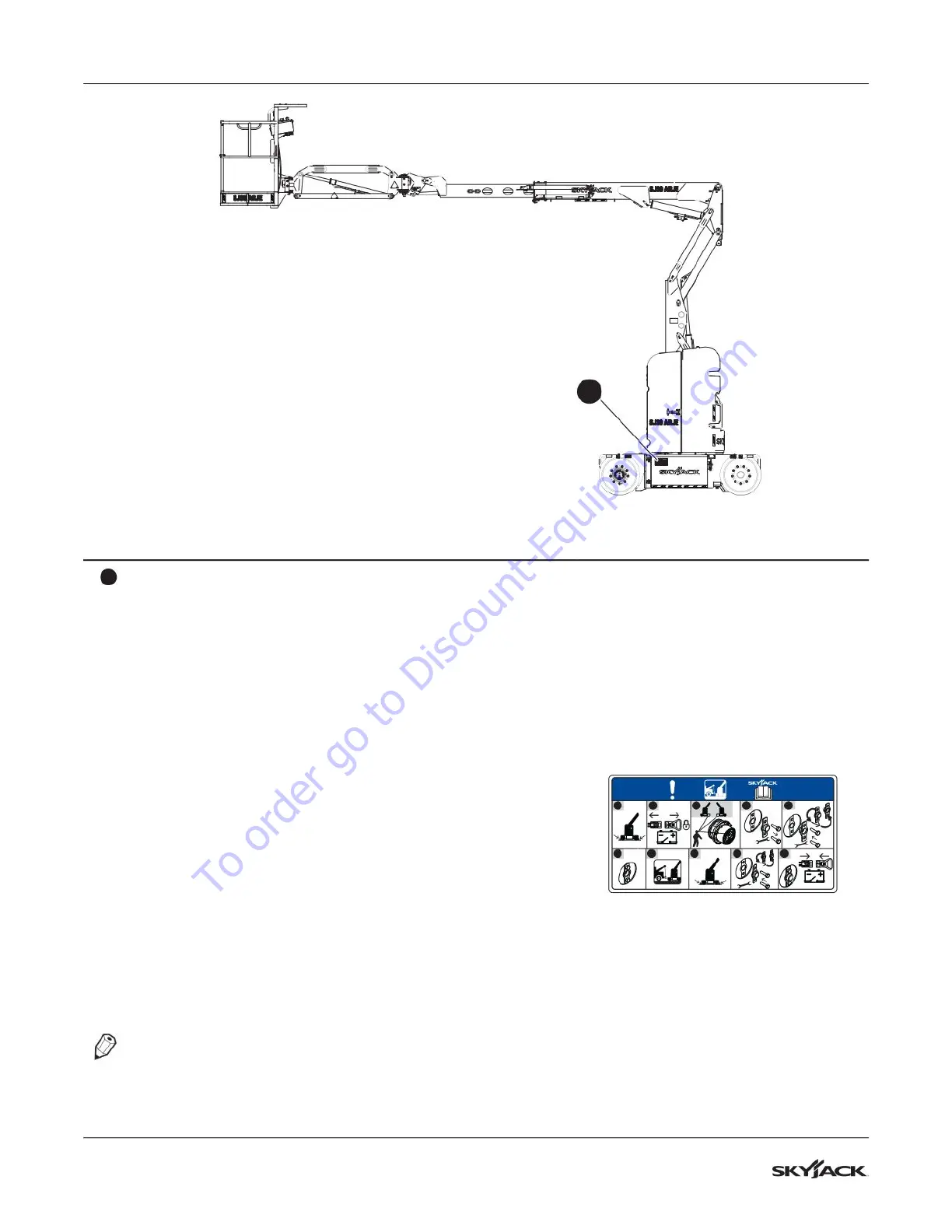

Section 8 – Labels SJ30 AJE & SJ30 ARJE Labels
Description Label Pictorial
11
Winching & towing procedure
Refer to operating manual.
1. Block or chock wheels to prevent MEWP from rolling.
2. On either the left or right side of the MEWP, disconnect and lock
out main power connector.
3. Locate disengage cap on torque-hub at rear of base.
4. Using a 11mm (7/16”) wrench, remove bolts.
5. Remove disengage cap and rotate to inward position. Insert
disengage cap and fasten bolts.
6. Brake is now released.
7. Remove blocks/chocks from wheels and winch/tow to desired
location.
8. Block or chock wheels to prevent MEWP from rolling.
9. Re-engage brake by performing the following steps:
a. Using a 11mm (7/16”) wrench, remove bolts.
b. Remove disengage cap and rotate to outward position.
c. Reattach disengage cap and fasten bolts.
10. Brake is now re-engaged. On both the left and right sides of the
MEWP, plug in main power connectors.
NOTE
Before operation, ensure all blocks are removed
from wheels.
7/16”/ 11 mm
6 7 8 9 10
5
41 2
3
TM
Motor/Hydraulic
side (continued)
11
