f. Only the red LED blinks
for 4 seconds.
Red LED
Green LED
13. Disconnect one of the main power connectors.
14. Push in the emergency stop buttons .
15. Remove the chock or wheel blocks.
16. Proceed to Verify the Tilt Circuit.
Reprogramming the Existing Tilt Switch
Red LED
Green LED

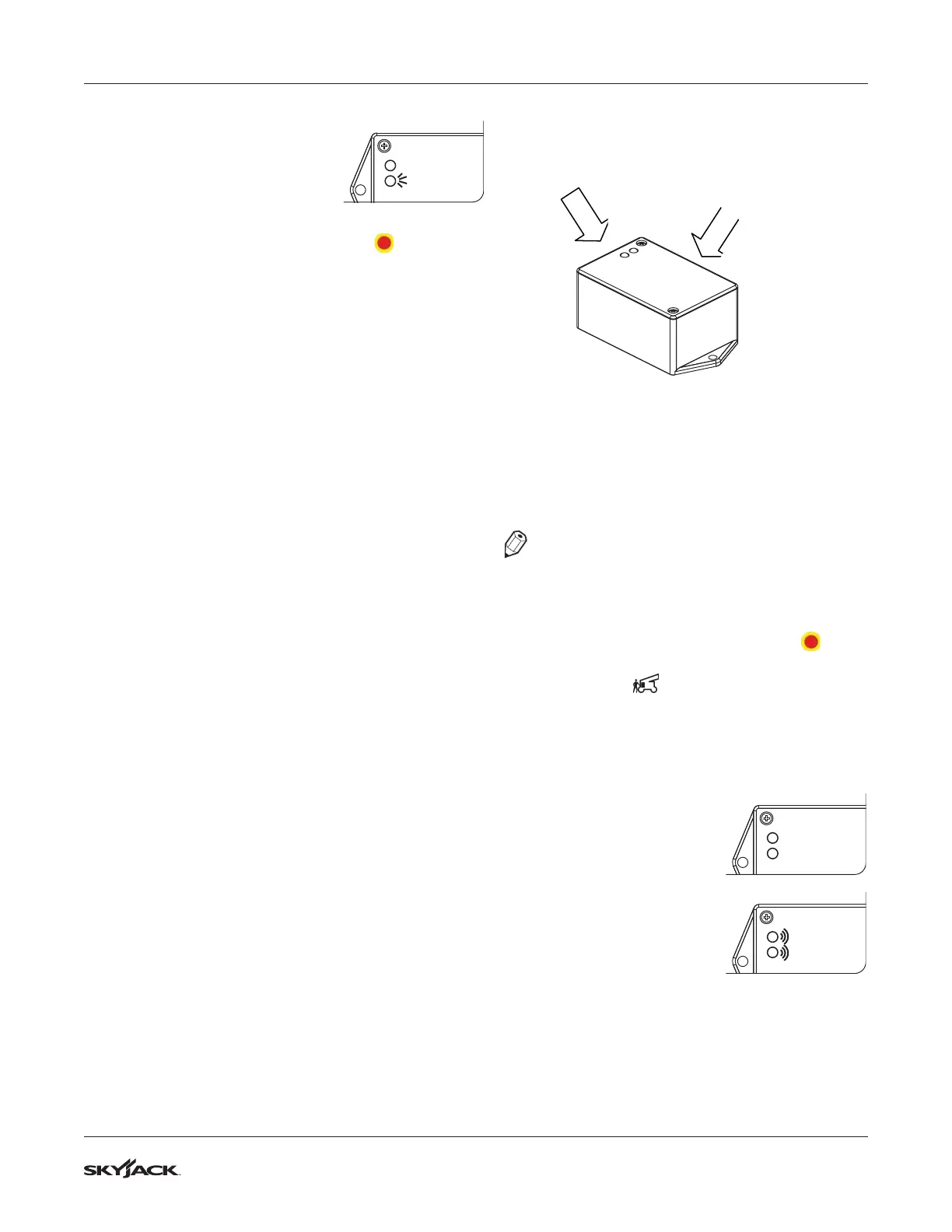

Light Indicators
The set up button is located on
this face next to the harness
1. Ensure the MEWP is parked on a firm level
surface.
2. Fully lower the platform and retract the fly
boom.
3. Chock or block the wheels to keep the MEWP
from rolling forward or backward.
NOTE
The tilt circuit is only powered when the controls
are powered up.
4. Connect the main power connectors.
5. Pull out both emergency stop buttons .
6. Turn the base/off/platform key switch to the
base position .
7. Verify the switch is powered (the red or green
LED will be continually blinking).
8. Reprogram the Tilt Switch
a. Press and hold the
set up button for 3
seconds.
Results: Both LEDs
are OFF.
Red LED
Green LED
b. Both LEDs flash.
Red LED
Green LED
