Skyjack SJ30AJE - Main Manifold Harness - KC

A B C D E F G H
V
Z
Y
X
W
59
SJ30AJE, SJ30ARJE 196274AF

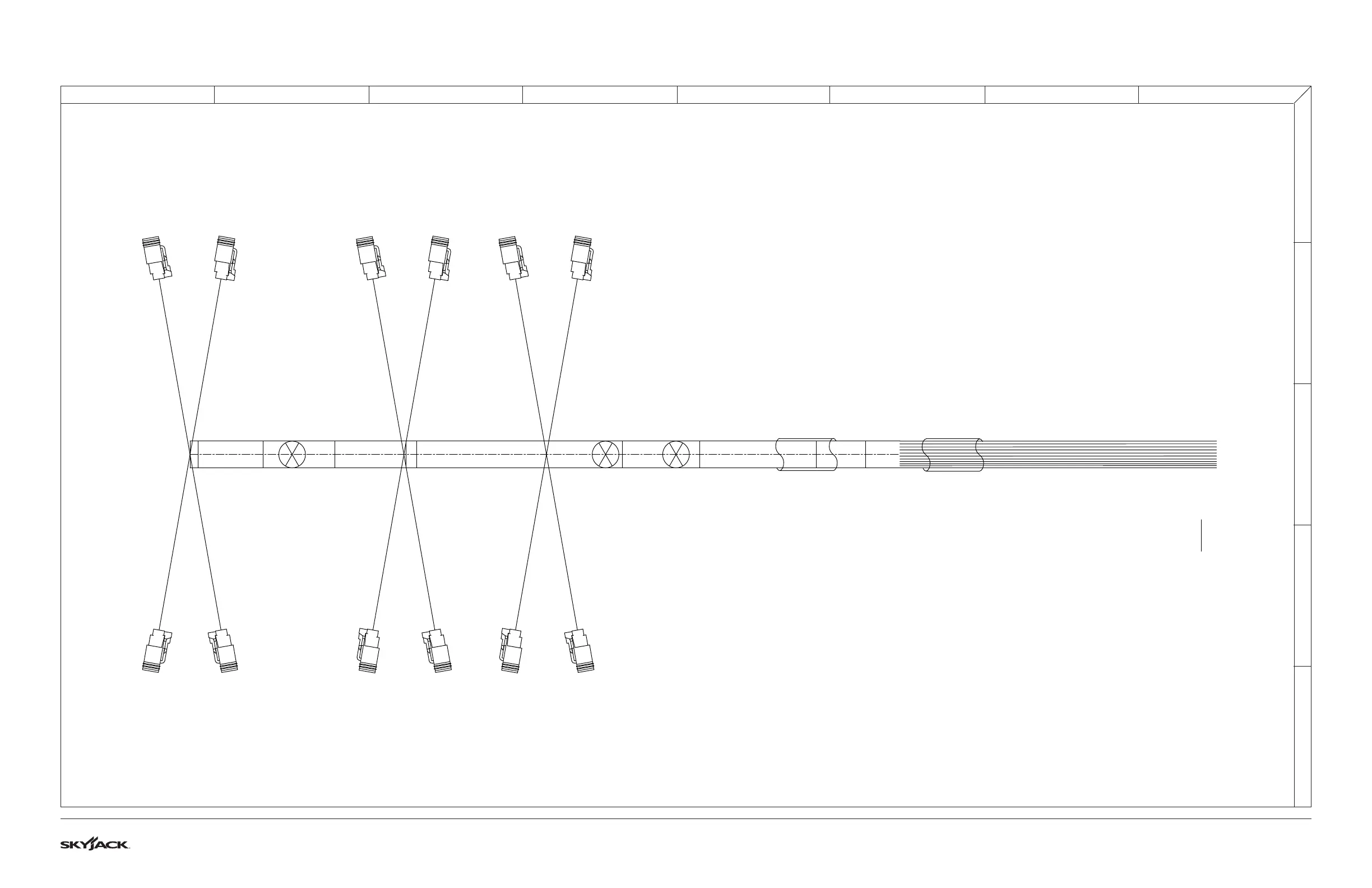

3.11 Main Manifold Harness - KC
M209042AB
1
1
1
1
1
1
1
1
1
1
1
1
PLATFORM LEVEL DOWN PIN 1 - 40 BLUE/RED PIN 2 - 02 WHITE
TELESCOPE OUT
PIN 1 - 39A BLACK/RED PIN 2 - 02 WHITE
TELESCOPE IN
PIN 1 - 38 ORANGE/RED PIN 2 - 02 WHITE
TURRET ROTATE RIGHT
PIN 1 - 33 GREEN/WHITE PIN 2 - 02 WHITE
TURRET ROTATE LEFT
PIN 1 - 32 GREEN/BLACK PIN 2 - 02 WHITE PLATFORM LEVEL UP PIN 1 - 41 BLUE/PURPLE PIN 2 - 02 WHITE
STEER RIGHT
PIN 1 - 7A RED PIN 2 - 223 BLACK/WHITE
STEER LEFT
PIN 1 - 7A RED PIN 2 - 224 BLUE/BLACK BOOM UP PIN 1 - 14A BLACK PIN 2 - 02 WHITE
FLOW ENABLE PIN 1 - 20B WHITE/RED PIN 2 - 02 WHITE RISER UP PIN 1 - 31A RED/WHITE PIN 2 - 02 WHITE
BOOM DOWN PIN 1 - 13 ORANGE PIN 2 - 02 WHITE
WIRE LIST
WIRE 1 - 13 - ORANGE WIRE 2 - 14A - BLACK WIRE 3 - 20B - WHITE/RED WIRE 4 - 223 - BLACK/WHITE WIRE 5 - 224 - BLUE/BLACK WIRE 6 - 31A - RED/WHITE WIRE 7 - 32 - GREEN/BLACK WIRE 8 - 33 - GREEN/WHITE WIRE 9 - 38 - ORANGE/RED WIRE 10 - 39A - BLACK/RED WIRE 11 - 40 - BLUE/RED WIRE 12 - 41 - BLUE/PURPLE WIRE 13 - 02 - WHITE (SPLICE #1) [14 GA.] WIRE 14 - 02 - WHITE (SPLICE #2) [14 GA.] WIRE 15 - 7A - RED
