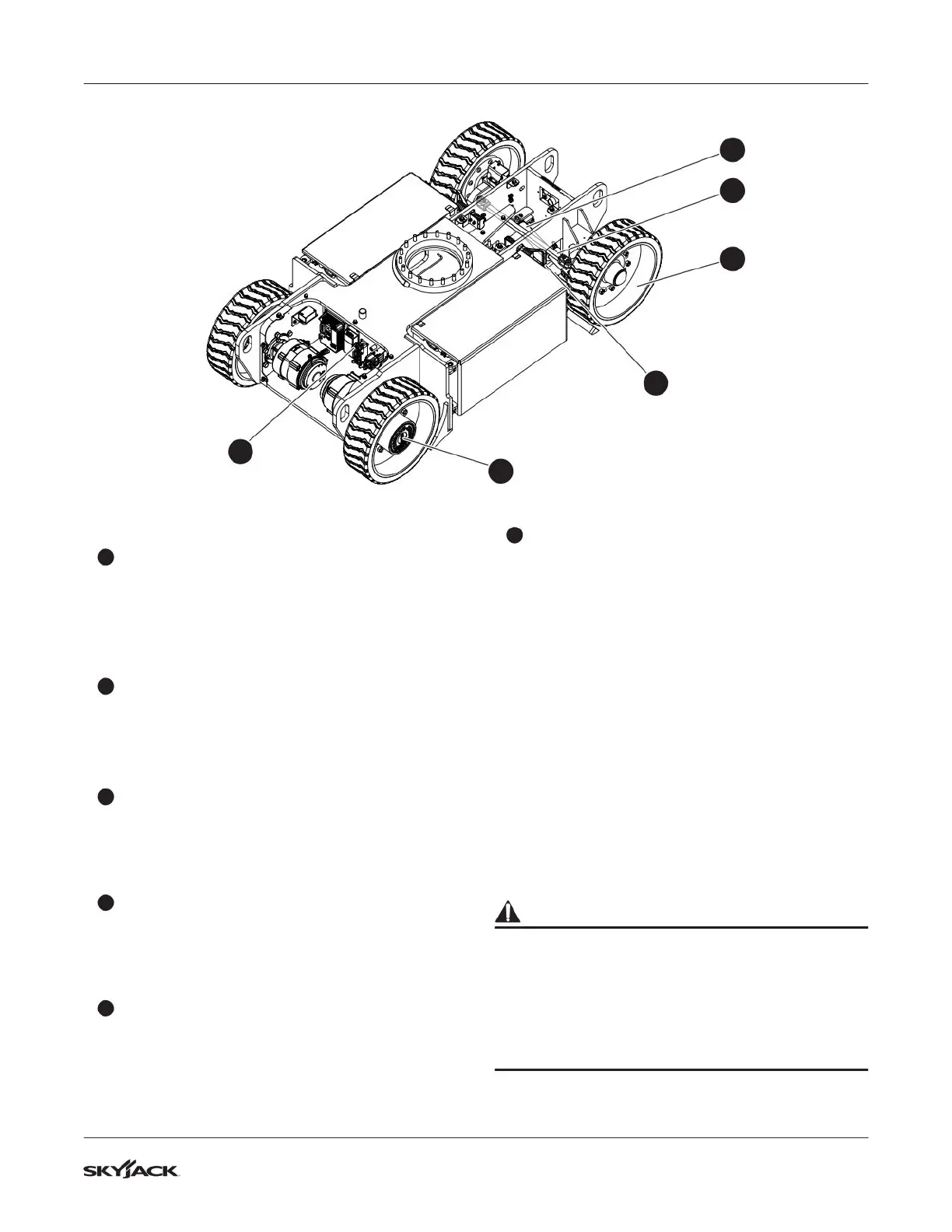

Scheduled Maintenance Inspections Section 1 – Scheduled Maintenance
1.6-7 Base
1
Main Power Connectors (B)
▪
Disconnect and lock out the connector on either
the left or right side of the MEWP.
▪
Ensure all cables are secure and the connector
is in proper working condition and has no visible
damage.
2
Electrical Panel
▪
Ensure the panel is properly secured and there
is no visible damage.
▪
Ensure there are no loose wires or missing
fasteners.
3
Torque Hubs (B)
▪
Ensure the drive axle is properly secured, there
are no loose or missing parts, all fittings and
hoses are properly tightened and there is no
evidence of hydraulic leakage.
4
Steer Cylinder Assembly (B)
▪
Ensure the steer cylinder assembly is properly
secured, there are no loose or missing parts, all
fittings and hoses are properly tightened, and
there is no evidence of hydraulic leakage.
5
Steering Linkage (B)
▪
Ensure there are no loose or missing parts, tie
rod end studs are locked, and there is no visible
damage.
6
Wheel/Tire Assembly (B,C)
The MEWP is equipped with solid rubber tires. Tire
and/or wheel failure could result in a MEWP tip-over.
Component damage may also result if problems are
not discovered and repaired in a timely fashion.
▪
Check all tire treads and sidewalls for cuts,
cracks, punctures and unusual wear.
▪
Check each wheel for damage and cracked
welds.
▪
Check each bolt for proper torque to ensure
none are loose.
▪
Check the wheel motor assembly for loose or
missing parts and signs of visible damage.
▪
Ensure the wheels are aligned and true vertically
and horizontally.
Refer to 2.6 Tire Specifications for tire/wheel
specifications.
WARNING
Do not use tires other than those specified for this
machine. Do not mix different types of tires. Tires
other than those specified can adversely affect
stability. Failure to operate with matched, approved
tires in good condition can result in death or
serious injury. Replace tires with the exact,
Skyjack-approved types only.
