Skyjack SJ30AJE - Electrical Parts List

51
SJ30AJE, SJ30ARJE 196274AF
Electrical Parts List Section 3 – System Component Identification and Schematics
3.5 Electrical Parts List

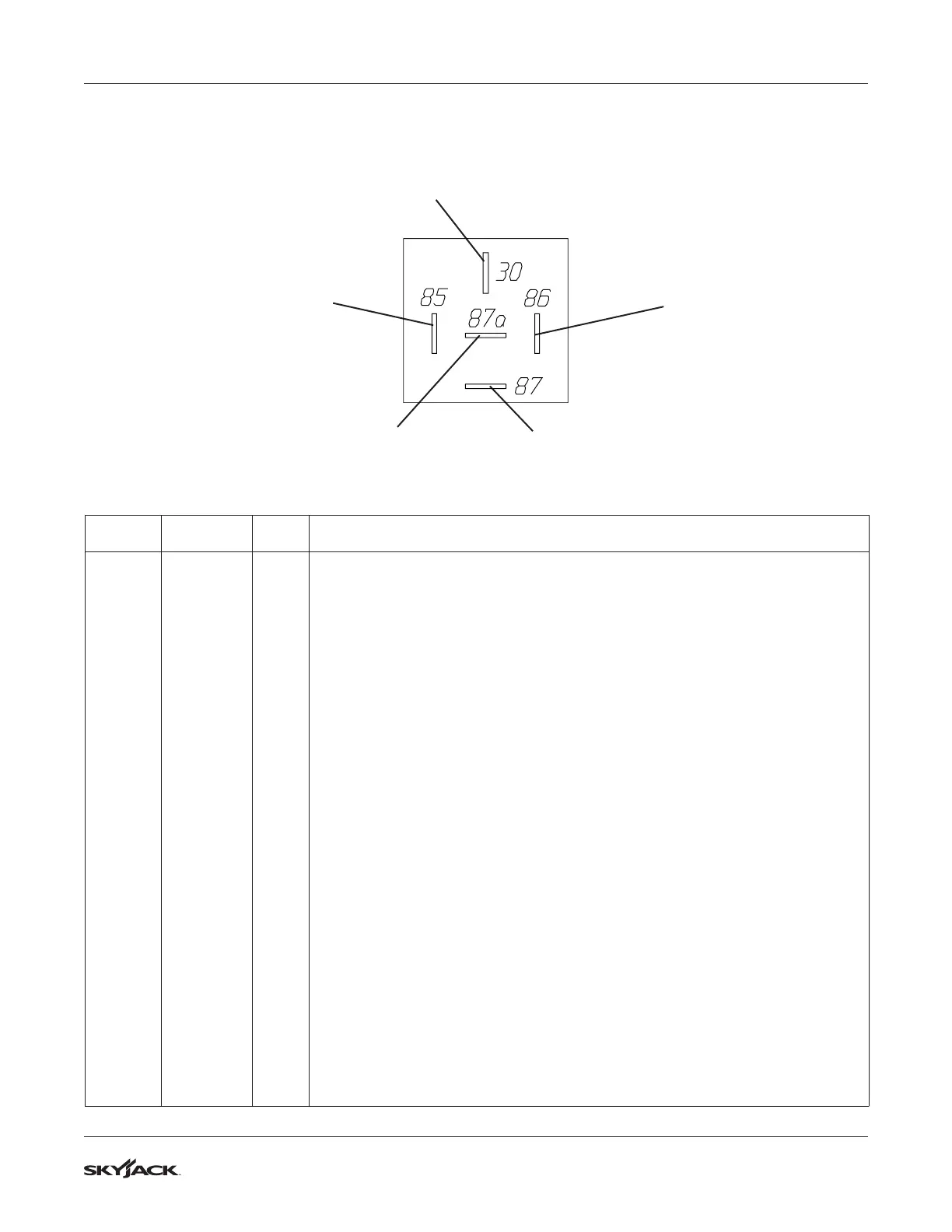

CONTROL (B+)
NORMALLY
CLOSED
CONTACT
SUPPLY (B+) (Common)
GROUND (B-)
NORMALLY
OPEN
CONTACT
Index
No.
Skyjack
Part No.
Qty. Description
51CCR1 127131 1 RELAY, 12V 40 amp (base controls) (KC)
51CCR2 127131 1 RELAY, 12V 40 amp (base controls) (KC)
51CCR3 127131 1 RELAY, 12V 40 amp (base controls) (KC)
51CCR4 127131 1 RELAY, 12V 40 amp (platform controls) (KC)
28CR 127131 1 RELAY, 12V 40 amp (platform controls)
60ACR 127131 1 RELAY, 12V 40 amp (base controls)
60CR 127131 1 RELAY, 12V 40 amp (base controls)
162BCR 127131 1 RELAY, 12V 40 amp (base controls) (CE)
162CR 127131 1 RELAY, 12V 40 amp (base controls)
204CR 127131 1 RELAY, 12V 40 amp (platform controls)
208CR 127131 1 RELAY, 12V 40 amp (base controls)
208CR1 127131 1 RELAY, 12V 40 amp (platform controls)
259CR 127131 1 RELAY, 12V 40 amp (base controls)
2H-20A 166127 1 COIL, 12 Volt (flow enable)
2H-30 159821 1 COIL, 12 Volt (riser down)
2H-31 208881 1 COIL, 12 Volt (riser up)
4H-13 208881 1 COIL, 12 Volt (main boom down)
4H-14 208881 1 COIL, 12 Volt (main boom up)
4H-224 208881 1 COIL, 12 Volt (steer left)
4H-223 208881 1 COIL, 12 Volt (steer right)
4H-34 209028 1 COIL, 24 Volt (jib down) (SJ30AJE)
4H-34 208882 1 COIL, 12 Volt (jib down) (SJ30ARJE)
