Skyjack SJ30AJE - Jib Rotary Actuator Bolt Torque Sequence; Platform Rotary Actuator Bolt Torque Sequence

149
SJ30AJE, SJ30ARJE 196274AF
Boom & Jib Section 5 – Procedures
5.4-5 Jib Rotary Actuator Bolt Torque
Sequence
1. Park the MEWP on a firm level surface in the
stowed position.
2. Disconnect one of the main power connectors.

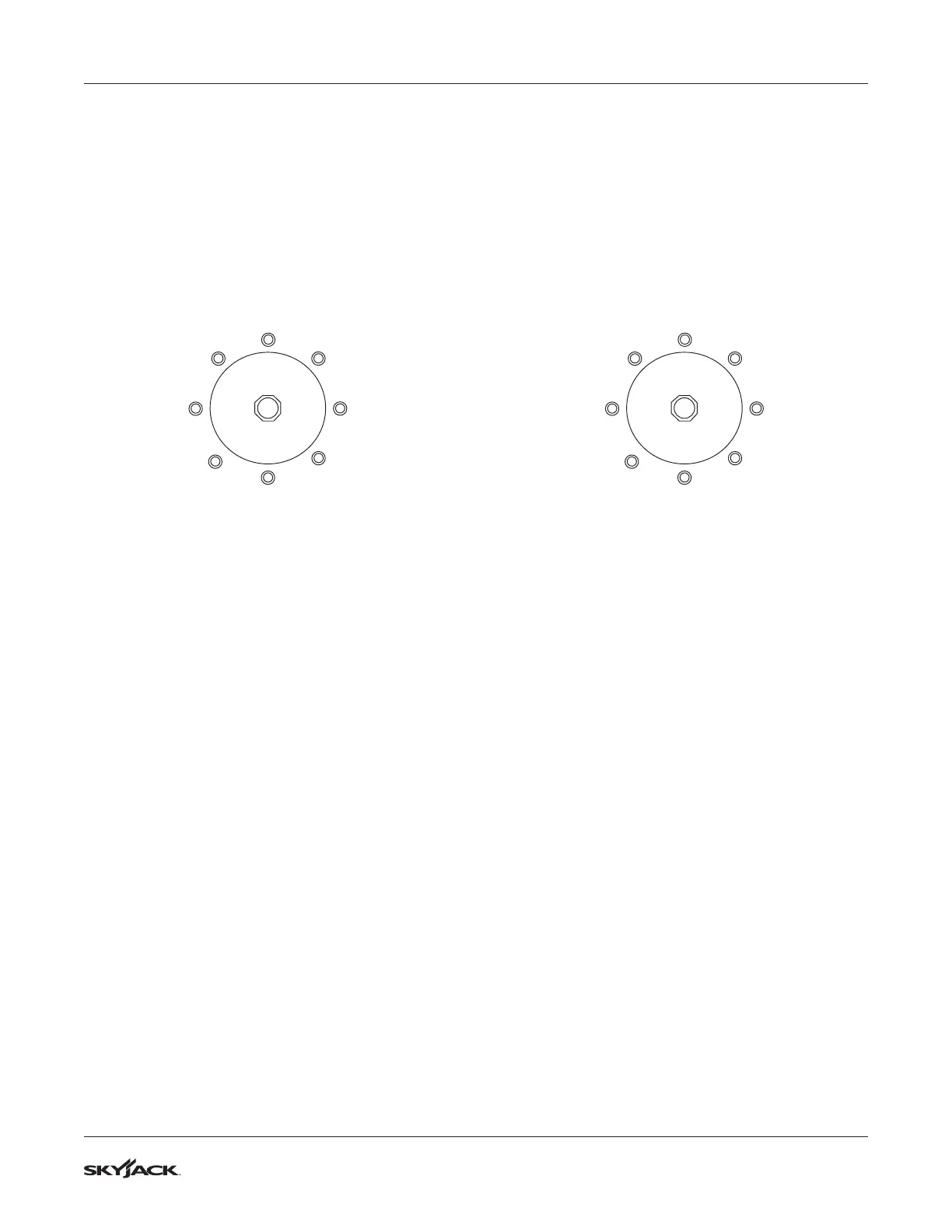

3. Set the torque wrench to 23 Nm (17 ft-Ib) and
tighten the mounting bolts in a criss-cross
pattern sequence.
1
2
3
4
5
6
7
8
4. Set the torque wrench to 47 Nm (35 ft-Ib)
and tighten the mounting bolts with the same
sequence.
5. Torque the center bolt to 1044 Nm (770 ft-lb).
5.4-6 Platform Rotary Actuator Bolt
Torque Sequence
1. Park the MEWP on a firm level surface in the
stowed position.
2. Disconnect one of the main power connectors.
3. Set the torque wrench to 23 Nm (17 ft-Ib) and
tighten the mounting bolts in a criss-cross
pattern sequence.
1
2
3
4
5
6
7
8
4. Set the torque wrench to 47 Nm (35 ft-Ib)
and tighten the mounting bolts with the same
sequence.
5. Torque the center bolt to 512 Nm (380 ft-lb).
