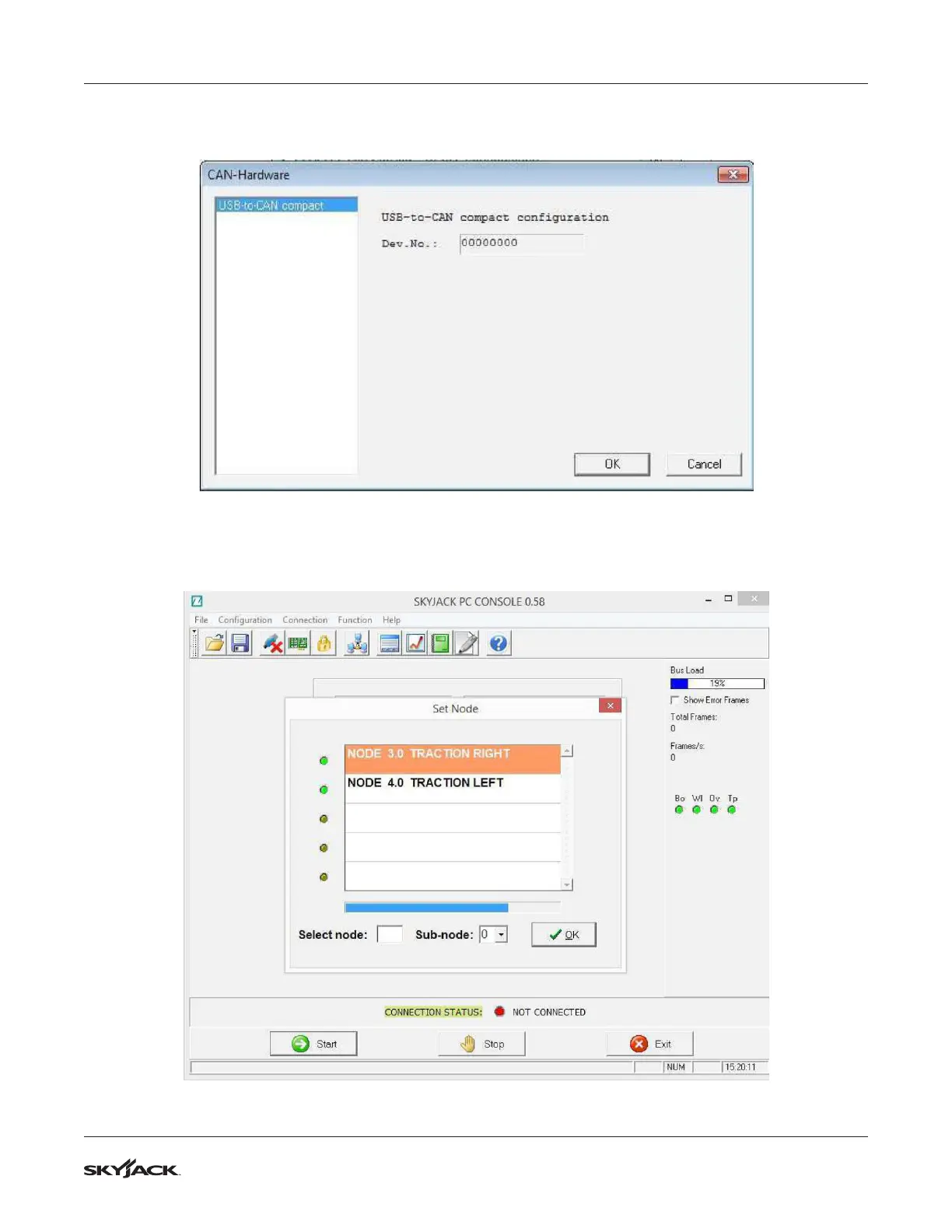

3. After clicking OK, the IXAAT device connected to the PC which is used for communication to the controller
must be selected. In this example, there is only one device.
4. Proceed with the connection to the network nodes by clicking Connection, then Set Node. In the following
example, there is a master node (node 3.0) and a slave node (node 4.0). Node 3.0 is the Master Combi
AC0 and drives the Right Traction Motor and the Hydraulic Pump Motor. Node 4.0 is the Slave ACE0
Inverter and drives the Left Traction Motor.
