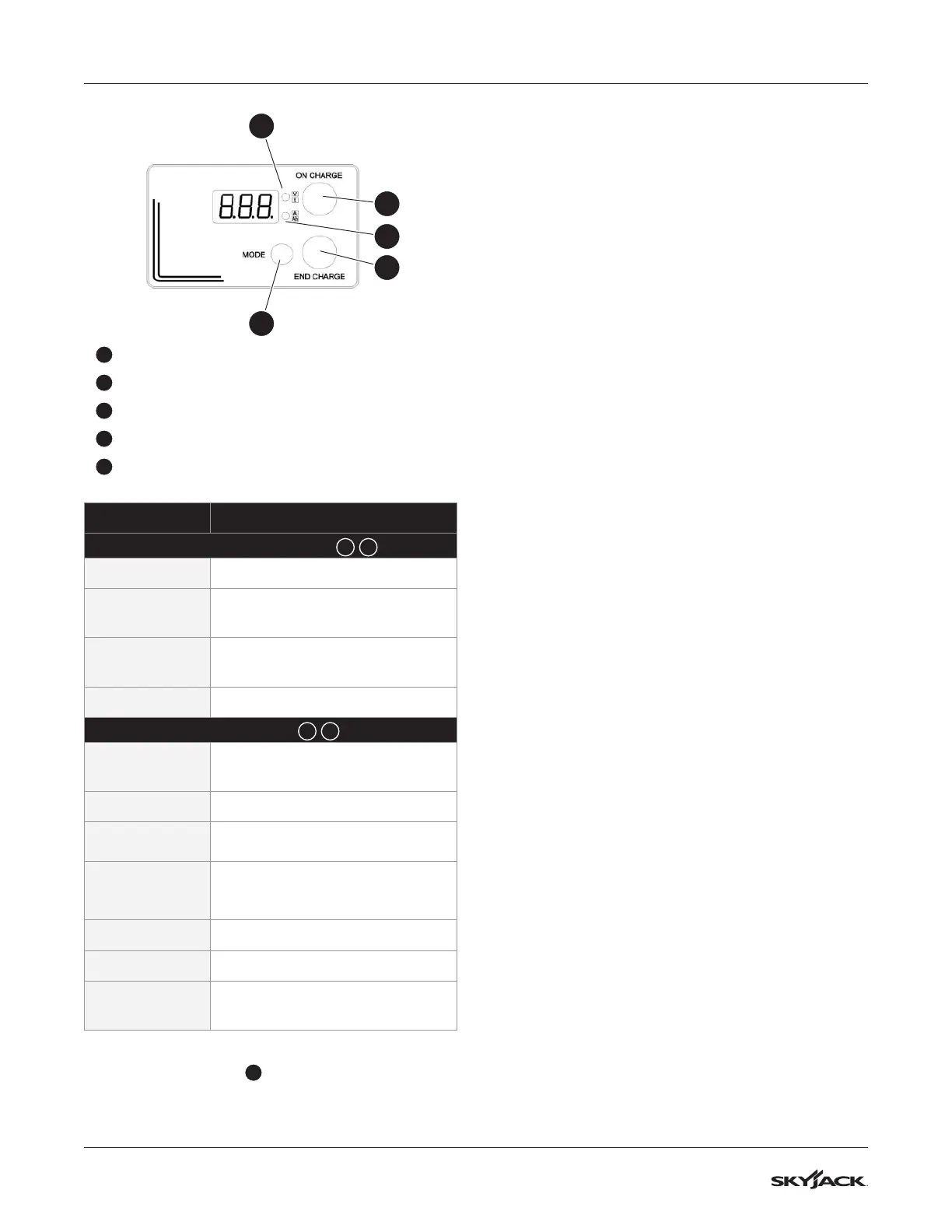

Section 6 – Additional Procedures Charge the batteries
3
2
1
4
5
1
Top two-tone LED
2
Lower two-tone LED
3
Mode button
4
Large red LED
5
Large green LED
LED light Charger parameter description
Small Two-Tone LEDss
1 2
Top red Battery voltage
Lower red
Electrical current (provided by the
charger)
Top green
Time (in hours remaining to the
end of the charge)
Lower green AH (supplied)
Large LEDs
4 5
Red
Constant or max current phase
(IUIa)
Red flash Voltage control phase (IUIa)
Red and
green flash
Overcharging phase (IUIa)
Red and
green
alternating
Wait phase (for equalization)
(IUIa)
Green End charge
Green flash Equalization pulse and floating
Green and red
flash together
Connection with CanConsole or
S/S HW-SW
NOTE
Push the MODE button
3
to pause the parameter
sequence. To continue the sequence, push the MODE
button again.
