Section 3 – Familiarization Optional equipment
IMPORTANT
If the set time of the access control unit expires,
enter the PIN code or tap the Smart ID card again.
If there is a failure of the access control activation,
speak to the MEWP owner.
IMPORTANT
The access control unit will not operate if these
power connections are not ON in the set time, or if
the operator disconnects them:
▪
The main power disconnect switch
▪
The emergency-stop button on the base
control console
▪
The idle/platform/base key switch.
IMPORTANT
To start the access control unit, enter the PIN
code or tap the Smart ID card. These power
connections must be in the ON position in the set
time:
▪
The main power disconnect switch
▪
The emergency-stop button on the base
control console
▪
The idle/platform/base key switch.
Function Tests
Do the function tests as specified in section 4.3.
When you do the function tests, make sure that the
green light on the keypad is ON. This light confirms
that the access control unit is in operation. Do the
function tests for these power connections in the set
time:
▪
The main power disconnect switch
▪
The emergency-stop button on the base control
console
▪
The idle/platform/base key switch.
3.6-3 Outrigger/generator control
console
The auto-level system deploys and retracts all four
outriggers at the same time. Use this system to level
the MEWP from the platform.

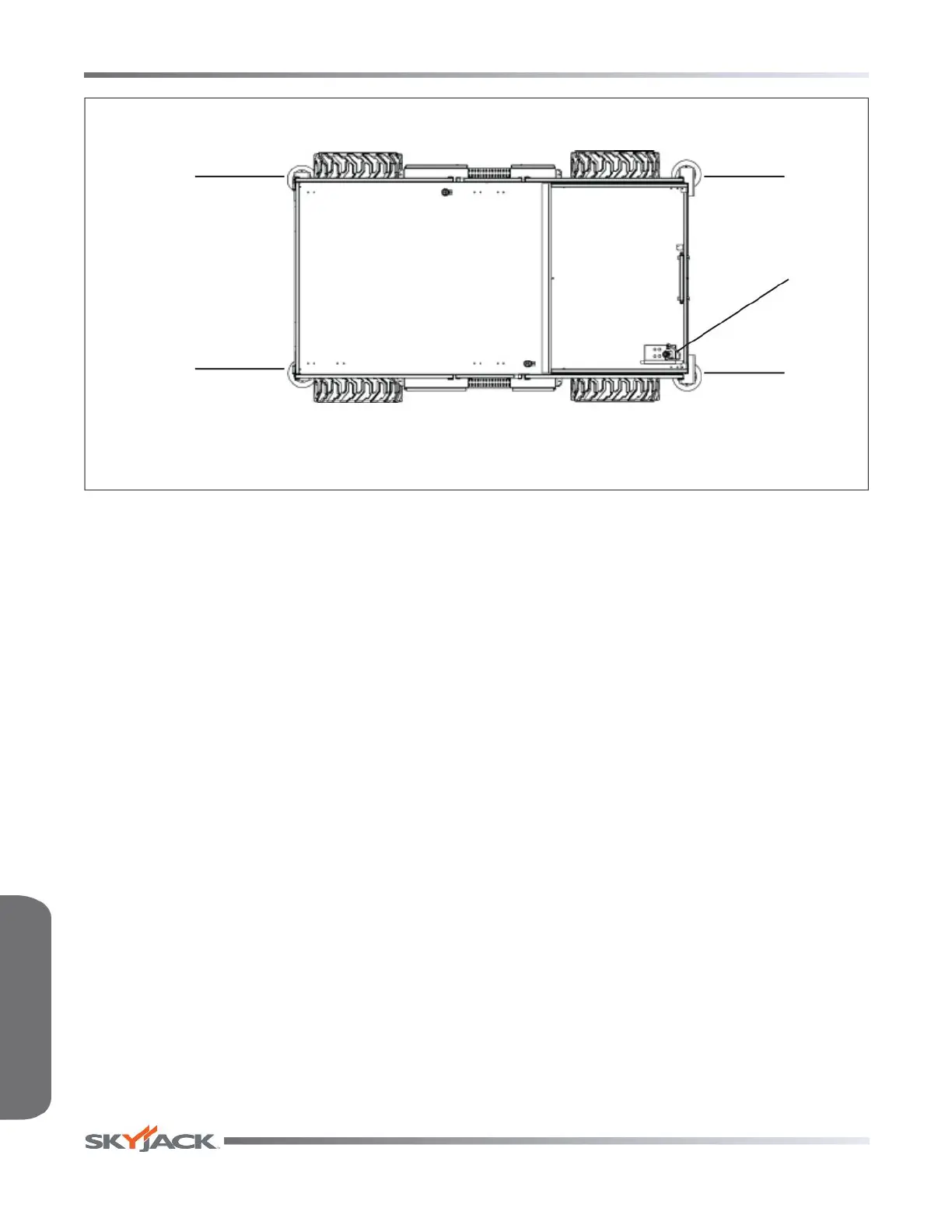

The outrigger control console is next to the platform
control console. The switches on the outrigger control
console control the extension and retraction of the
outriggers.
5
2
1
3
1
Outrigger extend/retract: These switches
control the extension and retraction of each
outrigger.
2
Auto-level: In the extend position, each outrigger
extends and automatically adjusts until the
MEWP is level. In the retract position, the
outriggers retract.
3
Outrigger enable: When in the extend or retract
position, this switch enables functions of the
auto-level switch and outrigger extend/retract
switches.
4
Generator switch: This switch turns the
generator on or off.
4
FAMILIARIZATION
