Section 8 – Labels Front side
Top view
7
7
6
6

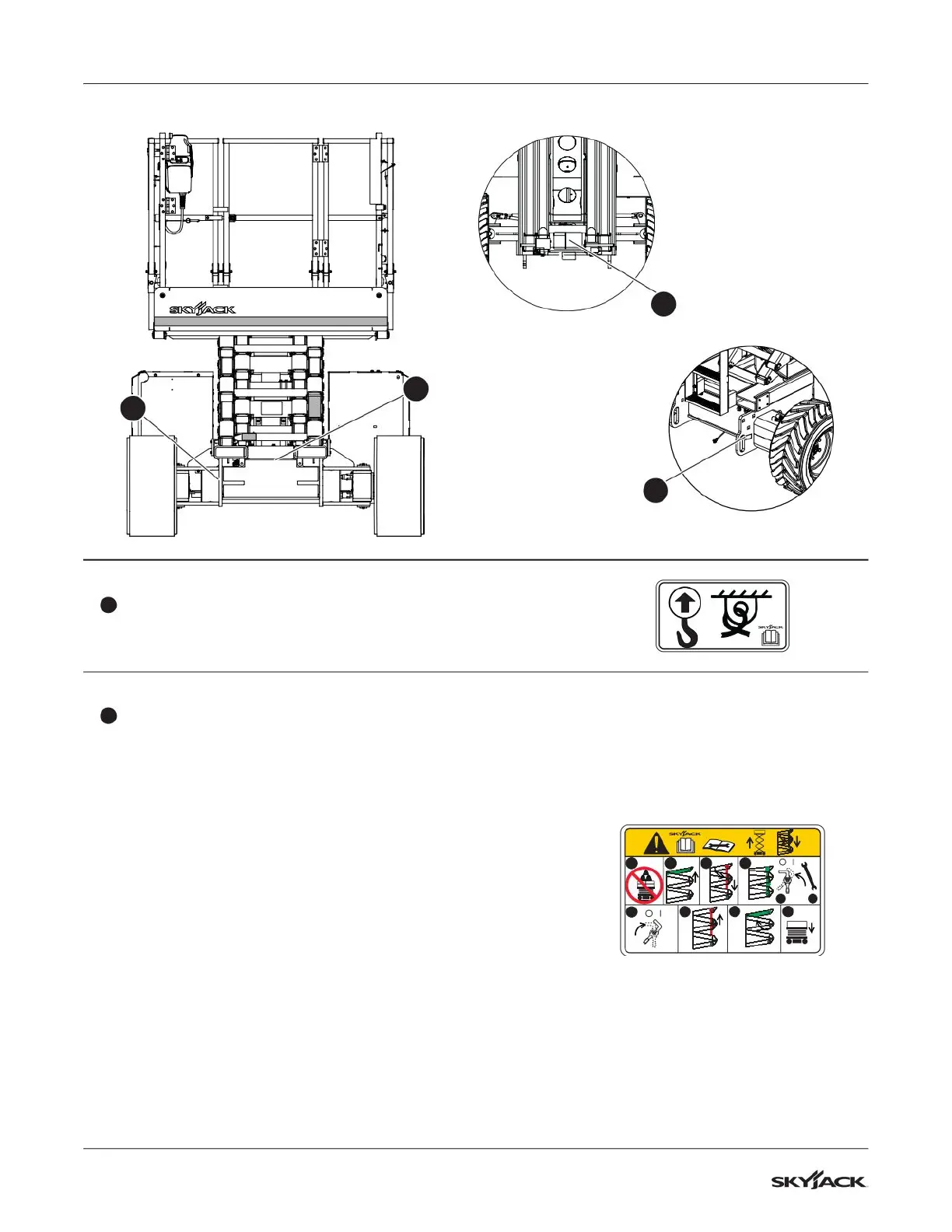

Description Label Pictorial
6
Lift and tie-down points
Only use these points for lifting or tying down.
TM
7
Maintenance support procedure
Refer to the operation manual.
1. Remove all personnel and material from the platform.
2. Raise platform until there is adequate clearance to deploy the
maintenance support.
3. Deploy the maintenance support from the storage bracket
into a vertical position. Lower platform until the bottom end of
maintenance support rests on the lower cross bar.
4. Maintenance support is now secured.
a. Turn Main power disconnect switch to off position.
b. Perform inspection/maintenance.
5. Turn Main power disconnect switch to on position.
6. Raise platform until there is adequate clearance to retract the
maintenance support.
7. Retract the maintenance support up and place into storage
bracket.
8. Fully lower the platform.
1
5
A
7
B
6
8
4
3
2
TM
Front side (continued)
Isometric view
6
To Next Page
