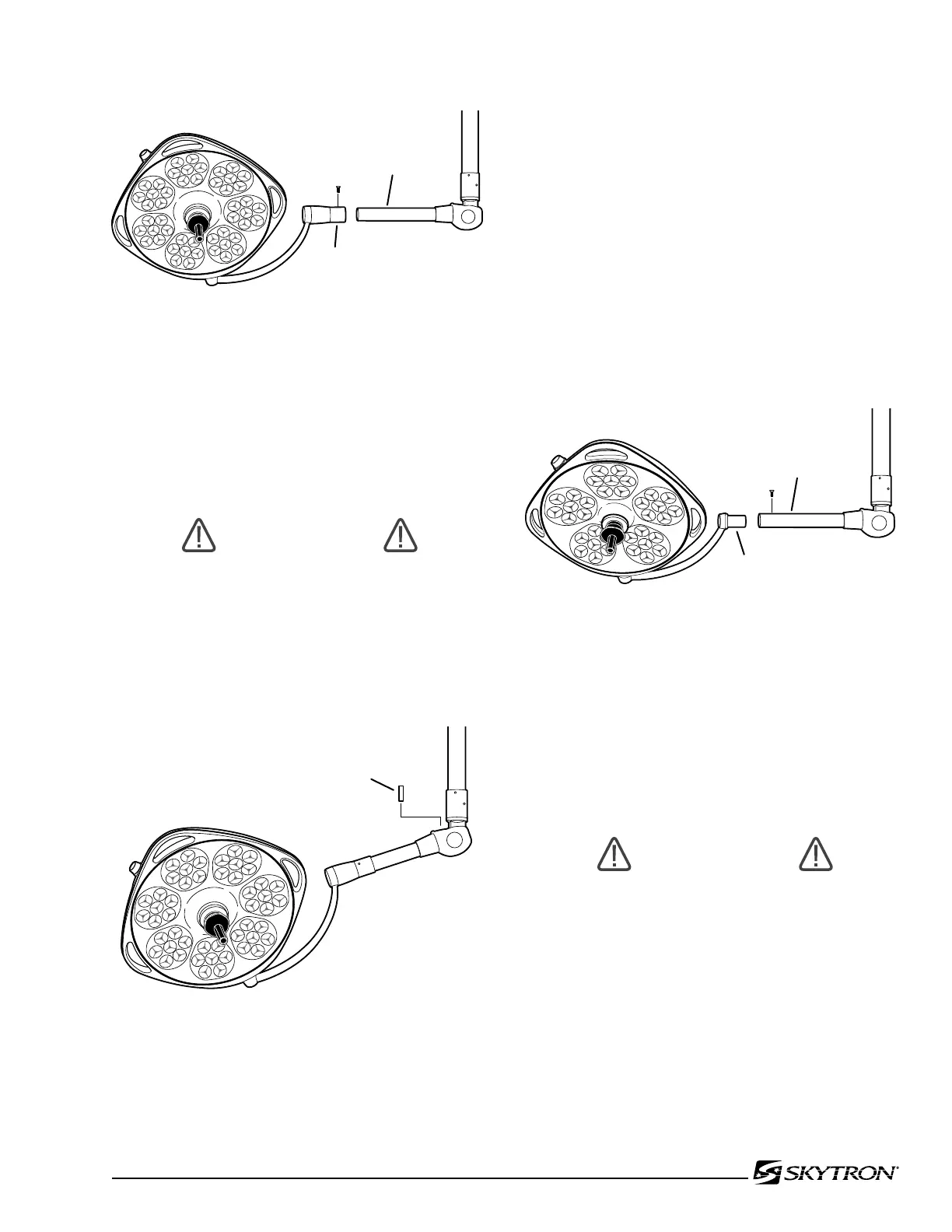

Figure 9. LED5 Lighthead Installation
d. Pull the lighthead down and remove the Above
Horizontal Limit Stops from the BOM. See figure
8.
WARNING
DO NOT remove lighthead when
support arm is in down position; The
balance mechanism will be severely
damaged and may result in bodily
injury.
d. Pull the lighthead down and remove the Above
Horizontal Limit Stops from the BOM. See figure
8.
WARNING
DO NOT remove lighthead when
support arm is in down position; The
balance mechanism will be severely
damaged and may result in bodily
injury.
Figure 8. Above Horizontal Limit Stops
Model LED5 Lighthead
a. To make it easier to install the lighthead,
locate the support arm of the balance mechanism
so that it points inward toward the ceiling cover.
This will prevent the radial arm from moving when
installing the lighthead. See figure 6.
b. Remove the four (4) screws from the lighthead
mounting stub.
c. Install the lighthead mounting stub into the
support arm and secure with the screws previously
removed. See figure 9.
Figure 7. Model LED7 Lighthead Installation
ABOVE HORIZONTAL
LIMIT STOP
