P
age 46
20.
A
UR
W

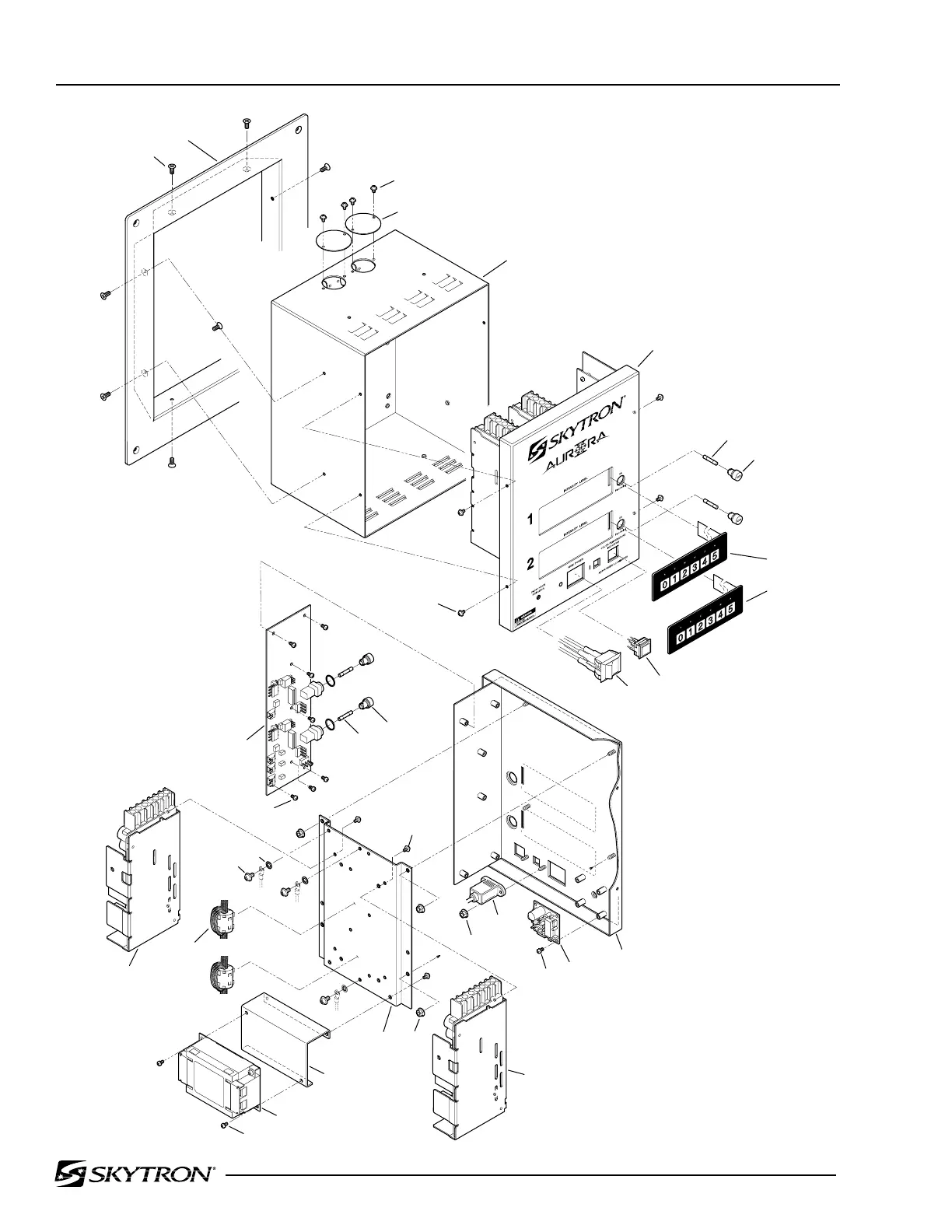

ALL CONTROL
AUR WALL CONTROL
013009.20mj
1
2
3
4
5
6
7
8
9
10
10
11
12
13
9
8
14
23
27
15
16
20
17
7
22
14
23
19
18
24
25
26
21
267
269
Table of Contents
Operators Manual
28
Table of Contents
28
Optical Characteristics
29
Equipment Labels and Specifications
30
Special User Attention
32
Model Identification
34
Introduction
35
Basic Lighthead Operation
37
Lighthead Positioning
39
Illumination Technique
41
Maintenance
45
Table of Contents
94
Optical Characteristics
96
Equipment Labels and Specifications
97
Section I Maintenance
99
General
99
Daily Maintenance
99
Preventive Maintenance Procedures
99
LED Module Changing
100
Focus Adjustment
101
General
102
Lighthead Pitch Adjustment
103
Model 7 Lighthead Roll Adjustment
104
Model 5 Lighthead Roll Adjustment
105
Vertical Travel Tension Adjustment
106
Horizontal Rotation Axis Adjustment
106
Radial Arm Horizontal Rotation Axis
108
Wiring Diagram
109
Table of Contents
141
Optical Characteristics
143
Equipment Labels and Specifications
144
Special User Attention
146
Introduction
148
Basic Lighthead Operation
150
Lighthead Positioning
152
Illumination Technique
154
Maintenance
158
Service
161
Hub and Radial Arm Assembly
162
Flatscreen Bracket Assembly
164
Height Adjustable Arm Assembly
166
Table of Contents
199
Equipment Labels and Specifications
200
Special User Attention
203
Model Identification
205
Introduction
206
Basic Lighthead Operation
208
Lighthead Positioning
210
Illumination Technique
212
Maintenance
216
Optical Characteristics
218
Page 3
225
Balance Mechanism Assembly, AUR7
238
Lighthead Yoke Assembly, AUR5
240
Lighthead Yoke Assembly, AUR7
242
Lighthead Components, AUR5
244
Equipment Labels and Specifications/Section I Maintenance
277
Equipment Labels and Specifications
280
Section I Maintenance
282
General
282
Daily Maintenance
282
Preventive Maintenance Procedures
282
LED Module Changing
283
Focus Adjustment
284
General
285
Lighthead Pitch Adjustment
286
Model 7 Lighthead Roll Adjustment
287
Model 5 Lighthead Roll Adjustment
288
Vertical Travel Tension Adjustment
289
Horizontal Rotation Axis Adjustment
289
Radial Arm Horizontal Rotation Axis
291
Table of Contents
297
Equipment Labels
298
Camera Control Unit Safety Instructions
299
Special User Attention
300
Introduction
301
Installation
302
Camera Installation
302
Camera Removal
302
Counterweight
303
Sterilizable Cover
303
Operation
304
Camera Control Unit
305
System Components
307
Damaged Shipment Claim Procedure
309
