8
1-4. Floor Lock/Brake System
The floor lock/brake system consists of four self-
leveling, hydraulic brake cylinders which raise and
support the table base off from the casters. Press
the TABLE-UP button on the pendant control to set
the table’s brakes. An electronic timer in the brake
circuit will activate the brake system until the brakes
are completely set, approximately 8-10 seconds.
NOTE
Activating any function button will acti-
vate the brake system. Using the
TABLE-UP function to set the brakes
provides a visual assurance that the
brakes are locked. As the brake cylin-
ders are extending, the entire table will
move slightly. When the table top be-
gins to elevate, the brakes are fully
locked.
To unlock the brakes, press the UNLOCK button
and release. The brakes will retract automatically
in approximately 7-8 seconds.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
TREND
TILT
RIGHT
BACK
DOWN
TABLE
DOWN
LEG
DOWN
REFLEX
BRAKE
UNLOCK
REV.
TREND
TILT
LEFT
BACK
UP
TABLE
UP
LEG
UP
FLEX
POWER ON
SLIDE/CTR
RETURN
KIDNEY
DOWN
KIDNEY
UP
*
PRESS TO LOCK BRAKES
*
SIDE
RAIL
CLIP
FUNCTION
BUTTONS
SLIDE/CTR
INDICATOR
POWER
INDICATOR

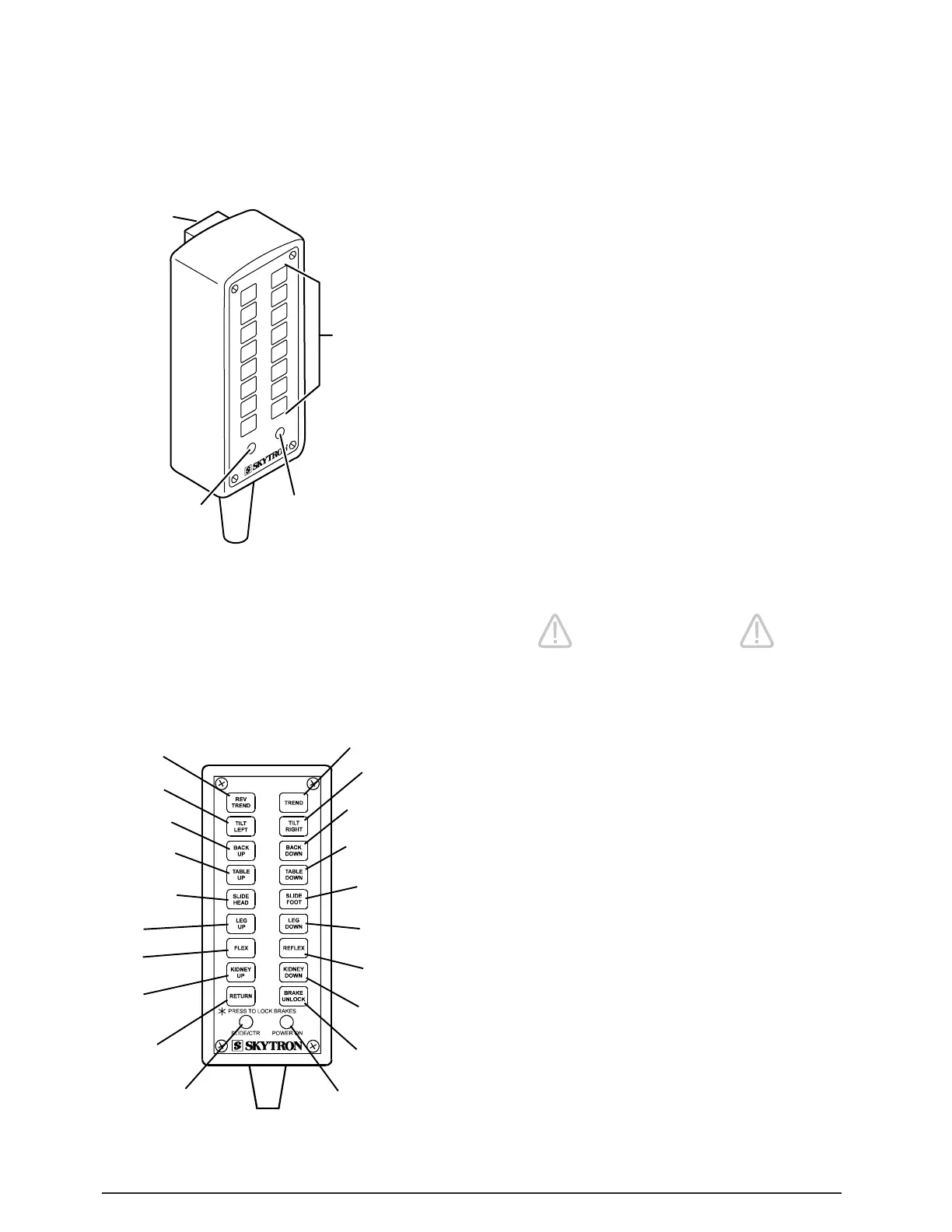

1-3. Pendant Control Unit
The hand-held pendant control unit (figure 1-3) has
a non-slip rubber cover which assures a positive
grip during use. A spring clip hanger located on the
back of the control allows it to be stored on the table
side rails.
Figure 1-3. Pendant Control Unit
The function push buttons are identified with abbre-
viated descriptions for all functions. See figure 1-
4. The trendelenburg and table-up buttons are red,
the remaining buttons are all black.
Figure 1-4. Function Push Buttons
REFLEX
POWER
INDICATOR
TRENDELENBURG
LATERAL
TILT RIGHT
BACK DOWN
TABLE DOWN
SLIDE FOOT
LEG DOWN
RETURN
TO LEVEL
KIDNEY
LIFT UP
FLEX
LEG UP
SLIDE HEAD
TABLE UP
(BRAKE LOCK)
BACK UP
LATERAL
TILT LEFT
SLIDE/CTR
INDICATOR
REVERSE
TRENDELENBURG
KIDNEY
LIFT DOWN
BRAKE
UNLOCK
