Skytron ELITE Series User Manual

16
b. Trendelenburg. To place the surgical table in
a Trendelenburg (head down) position, press the
TREND button (figure 3-7). Trendelenburg posi-
tioning of up to 25° may be obtained. To place the
table in a reverse Trendelenburg (head up) posi-
tion, press the REV TREND button. Reverse
Trendelenburg positioning of up to 20° may be
obtained.
WARNING
To maximize patient safety, utilize
proper restraint methods during extreme
Trendelenburg positioning.

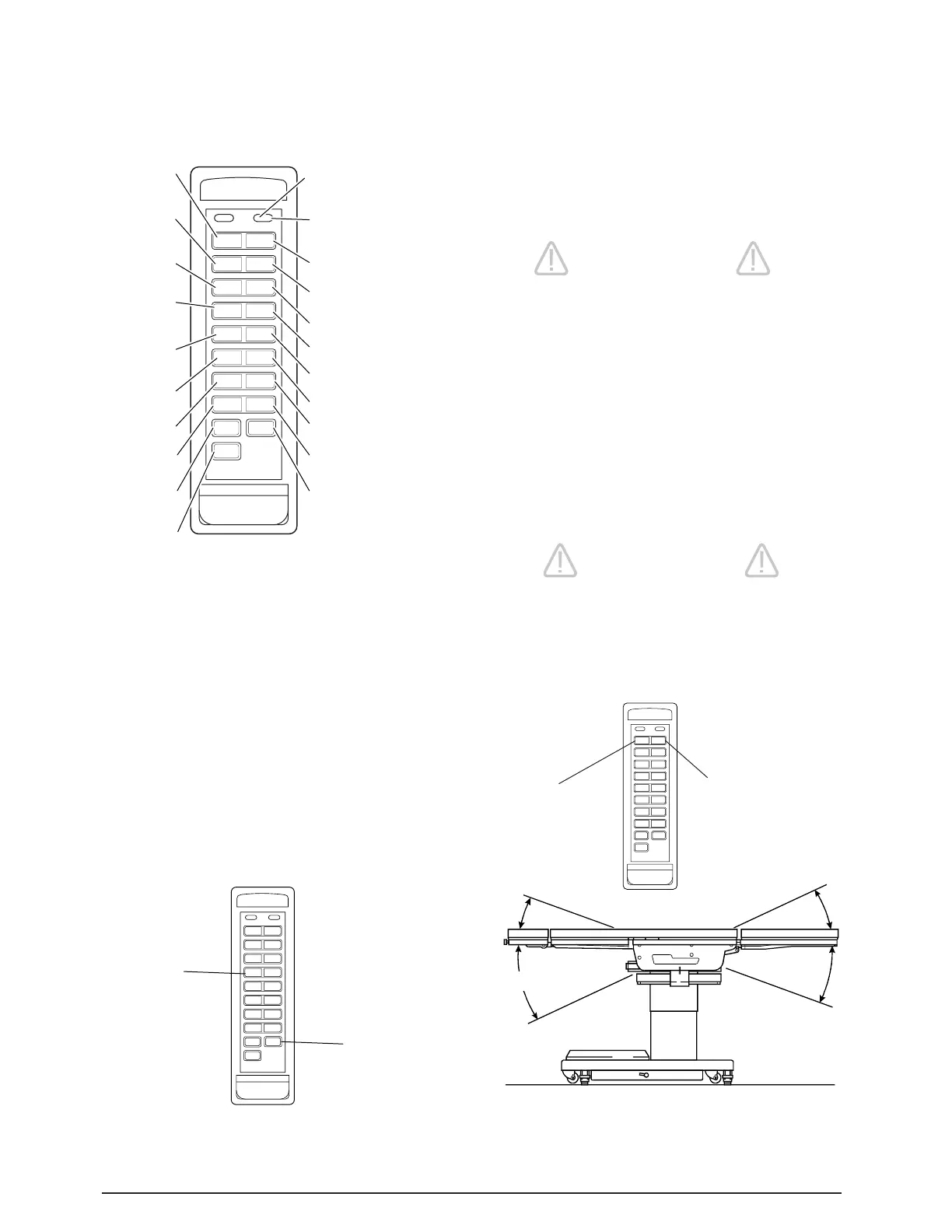

Figure 3-7. Trendelenburg Positioning
ELITE/
3500B
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
REV.
TREND
TREND
TILT
LEFT
TILT
RIGHT
BACK
UP
BACK
DOWN
TABLE
UP
TABLE
DOWN
SLIDE
HEAD
SLIDE
FOOT
LEG
UP
LEG
DOWN
FLEX REFLEX
KIDNEY
UP
KIDNEY
DOWN
RETURN
BRAKE
UNLOCK
RETURN/CTR POWER BATT
BATT
*
PRESS TO
LOCK BRAKES
*
25˚
20˚
REVERSE
TRENDELENBURG
TRENDELENBURG
Press the BRAKE-UNLOCK button on the pendant
control to release the four self-leveling brake feet in
order to move the table. See figure 3-6. The brake
delay circuit automatically retracts the brake sys-
tem with just one press of the BRAKE-UNLOCK
button. It takes approximately 7-8 seconds to
totally release the system.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
NOTE
With an evenly distributed patient weight
load, all table positioning functions will
operate smoothly and quietly with a
patient weight of up to 500 pounds.
a. Floor Lock/Brake System. To activate the
brakes without affecting table positioning, press
the TABLE-UP button. See figure 3-6. The eleva-
tion cylinder will not function until the brakes are
completely extended.
3-6. Positioning Functions
The hand-held pendant control unit (figure 3-5)
activates the following table functions:
Figure 3-5. Pendant Control Unit
Figure 3-6. Brake System Activation
ELITE/
3500B
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
REV.
TREND
TREND
TILT
LEFT
TILT
RIGHT
BACK
UP
BACK
DOWN
TABLE
UP
TABLE
DOWN
SLIDE
HEAD
SLIDE
FOOT
LEG
UP
LEG
DOWN
FLEX REFLEX
KIDNEY
UP
KIDNEY
DOWN
RETURN
BRAKE
UNLOCK
RETURN/CTR POWER BATT
BATT
*
PRESS TO
LOCK BRAKES
*
AC120V POWER ON
INDICATOR LIGHT
(GREEN)
BATTERY ON/OFF
SELECTOR BUTTON
BATTERY POWER
INDICATOR LIGHT
(RED)
TABLE UP
(BRAKE LOCK)
LATERAL
TILT LEFT
BACK UP
SLIDE HEAD
SLIDE FOOT
LEG UP
FLEX
KIDNEY
LIFT UP
RETURN
TO LEVEL
LATERAL
TILT RIGHT
BACK DOWN
TABLE DOWN
LEG DOWN
REFLEX
KIDNEY
LIFT DOWN
BRAKE
UNLOCK
REVERSE
TRENDELENBURG
TRENDELENBURG
ELITE/
3500B
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
REV.
TREND
TREND
TILT
LEFT
TILT
RIGHT
BACK
UP
BACK
DOWN
TABLE
UP
TABLE
DOWN
SLIDE
HEAD
SLIDE
FOOT
LEG
UP
LEG
DOWN
FLEX REFLEX
KIDNEY
UP
KIDNEY
DOWN
RETURN
BRAKE
UNLOCK
RETURN/CTR POWER BATT
BATT
*
PRESS TO
LOCK BRAKES
*
BRAKE
UNLOCK
TABLE UP
(BRAKE LOCK)
